Bundle / KitMeshtasticIndoor
XIAO nRF52840 & Wio-SX1262 Kit for Meshtastic
$13.49
USD
This kit combines the XIAO nRF52840 and Wio-SX1262, supporting BLE5.0 and LoRa (862-930MHz), and operates with low power consumption. It can be applied in various fields such as Meshtastic, sensor networks, environmental monitoring, asset…
Use CaseAsset, personnel and outdoor tracking
Secure Payment Options
Bank transfer or cryptocurrency
Bank Transfer
Cryptocurrency (Bitcoin)
365-Day Recorded Warranty
Eligibility linked to the product and serial record
Secure Approved Payments
Bank transfer or cryptocurrency
Order & Serial-Linked Support
Traceable order and after-sales assistance
Documented Package Contents
Included hardware and accessories are clearly listed
Technical Specifications
Verified product data organized in one table
| Product Classification | |
|---|---|
| Product Profile | Bundle / Kit |
| Environment / Deployment | Indoor |
| Primary Use Cases | Asset, personnel and outdoor tracking |
| Network & Ecosystem | |
| Supported Network / Ecosystem | Meshtastic |
| Connectivity / Protocol | LoRa, Meshtastic, Bluetooth, USB, GPIO, NFC |
| Power | |
| Power Method | Battery, USB-C |
| Physical & Environmental | |
| Operating Temperature | -40°C ~ 65°C |

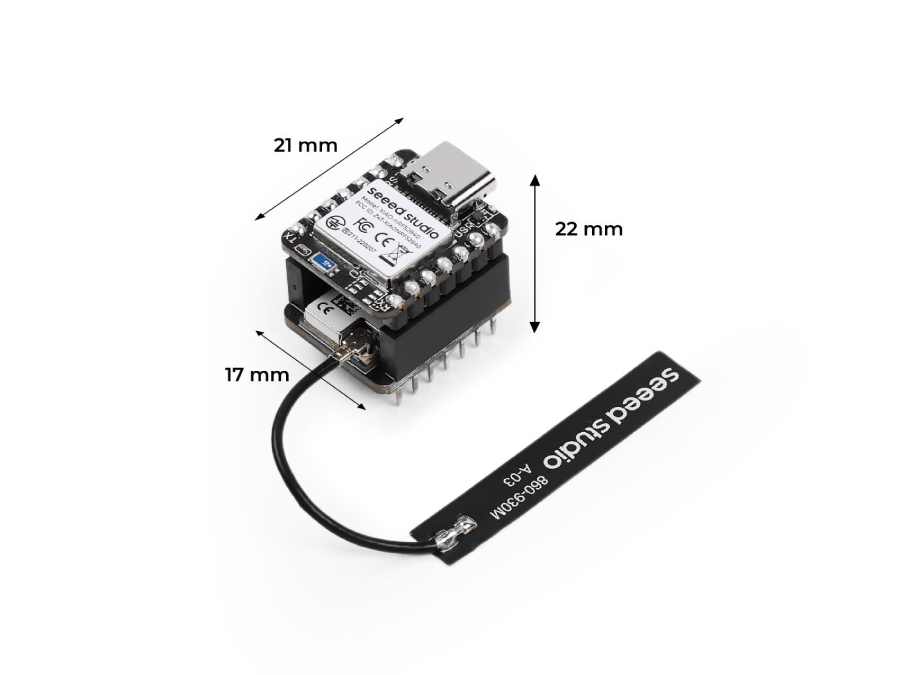

| Dimensions | 21 x 17.8mm |
| Detailed Technical Data | |
| XIAO nRF52840 | Nordic nRF52840 ARM® Cortex®-M4 with FPU runs up to 64 MHz |
| Wio-SX1262 | Based on Semtech SX1262, supports 862-930MHz |
| Wireless | Bluetooth 5.0/NFC |

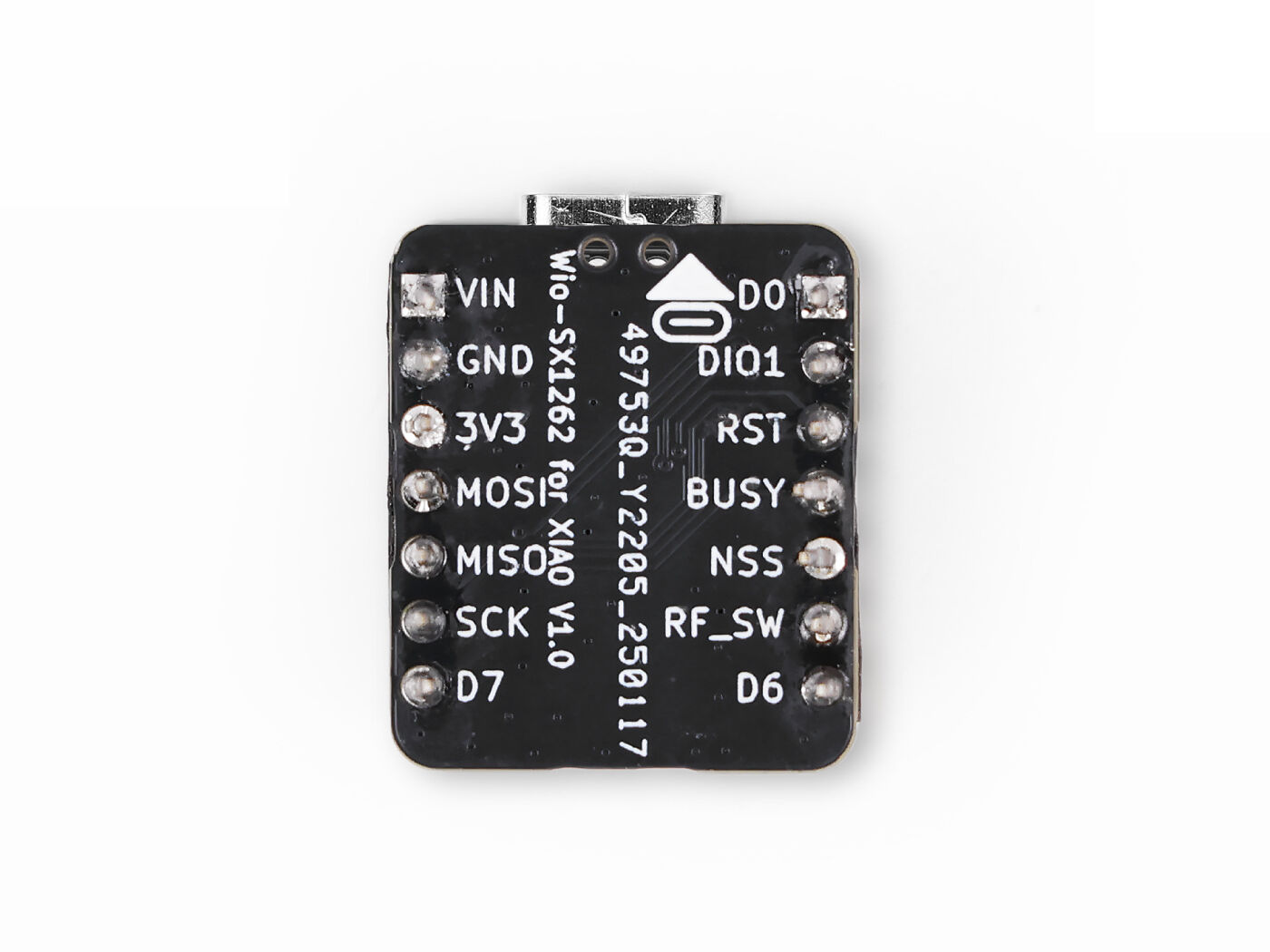

| Interface | XIAO nRF52840: 1x UART, 1x IIC, 1x SPI(connect to SX1262),1x NFC, 1x SWD, 11x GPIO(PWM), 6x ADC |
| Power | Input voltage (Type-C): 5V Input voltage (BAT): 4.2V |
| Working Temperature | -40°C ~ 65°C |
| Wio-SX1262 extension board | x1 |
| LoRa antenna | x1 |
| HSCODE | 8543709990 |
| USHSCODE | 8517180050 |
| EUHSCODE | 8543709099 |
| COO | CHINA |
Product Overview
This kit combines the XIAO nRF52840 and Wio-SX1262, supporting BLE5.0 and LoRa (862-930MHz), and operates with low power consumption. It can be applied in various fields such as Meshtastic, sensor networks, environmental monitoring, asset tracking, education, and innovation.
Note: I f y o u w a n t t o b u y t h e c o m p a t i b l e S X 1 2 6 2 f o r t h e n R F 5 2 8 4 0 s e p a r a t e l y , Click here . Th e SX1262 in this kit IS NOT compatible with Xiao ESP32S3. Versatile Microcontroller: Incorporate the Nordic nRF52840 chip with FPU, operating up to 64 MHz, mounted multiple development ports, supported by Arduino / CircuitPython / Micropython Powerful LoRa Performance: Long-range LoRa on Semtech SX1262, supports 868/915 MHz bands. Dual-core communication: It supports both Bluetooth and LoRa dual modes, enabling cross-domain interconnection. With dimensions of only 8mm × 22mm × 23mm , it features an integrated antenna design.
