XIAO ESP32S3 & Wio-SX1262 Kit with 3D case for Meshtastic & LoRa
Technical Specifications
Verified product data organized in one table
| Product Classification | |
|---|---|
| Product Profile | Bundle / Kit |
| Environment / Deployment | Indoor & Outdoor |
| Primary Use Cases | IoT monitoring and connected deployments |
| Network & Ecosystem | |
| Supported Network / Ecosystem | Meshtastic |
| Connectivity / Protocol | LoRaWAN, LoRa, Meshtastic, Wi-Fi, Bluetooth, BLE, USB, GPIO, GNSS / GPS |
| Power | |
| Power Method | Battery, USB-C |
| Physical & Environmental | |
| Operating Temperature | -40 ~ 65°C |
| Dimensions | 13.0x195mm |
| Weight | 37.1g |
| Detailed Technical Data | |
| Specification | Parameter |
| Processor | ESP32-S3R8, Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz |
| Memory | On-chip 8M PSRAM & 8MB Flash |
| Wireless | Complete 2.4GHz Wi-Fi subsystem BLE: Bluetooth 5.0, Bluetooth mesh, LoRa: Based on Semtech SX1262, supports 862-930MHz |
| Interface | 1x UART, 1x IIC, 1x IIS, 1x SPI, 11x GPIOs (PWM), 9x ADC, 1x User LED, 1x Charge LED 1x Reset button, 1x Boot button |
| Power | Input voltage (Type-C): 5V Input voltage (BAT): 4.2V |
| Type | SMA to I-PEX External Antenna |
| Max Gain | 2 dBi |
| Dimension | 13.0x195mm |
| Installation | Install on the outside of the enclosure |
| Distance | 2~5km in open environment |
| Application | Suitable for most scenarios, designed for indoor and outdoor |
| Material | ABS |

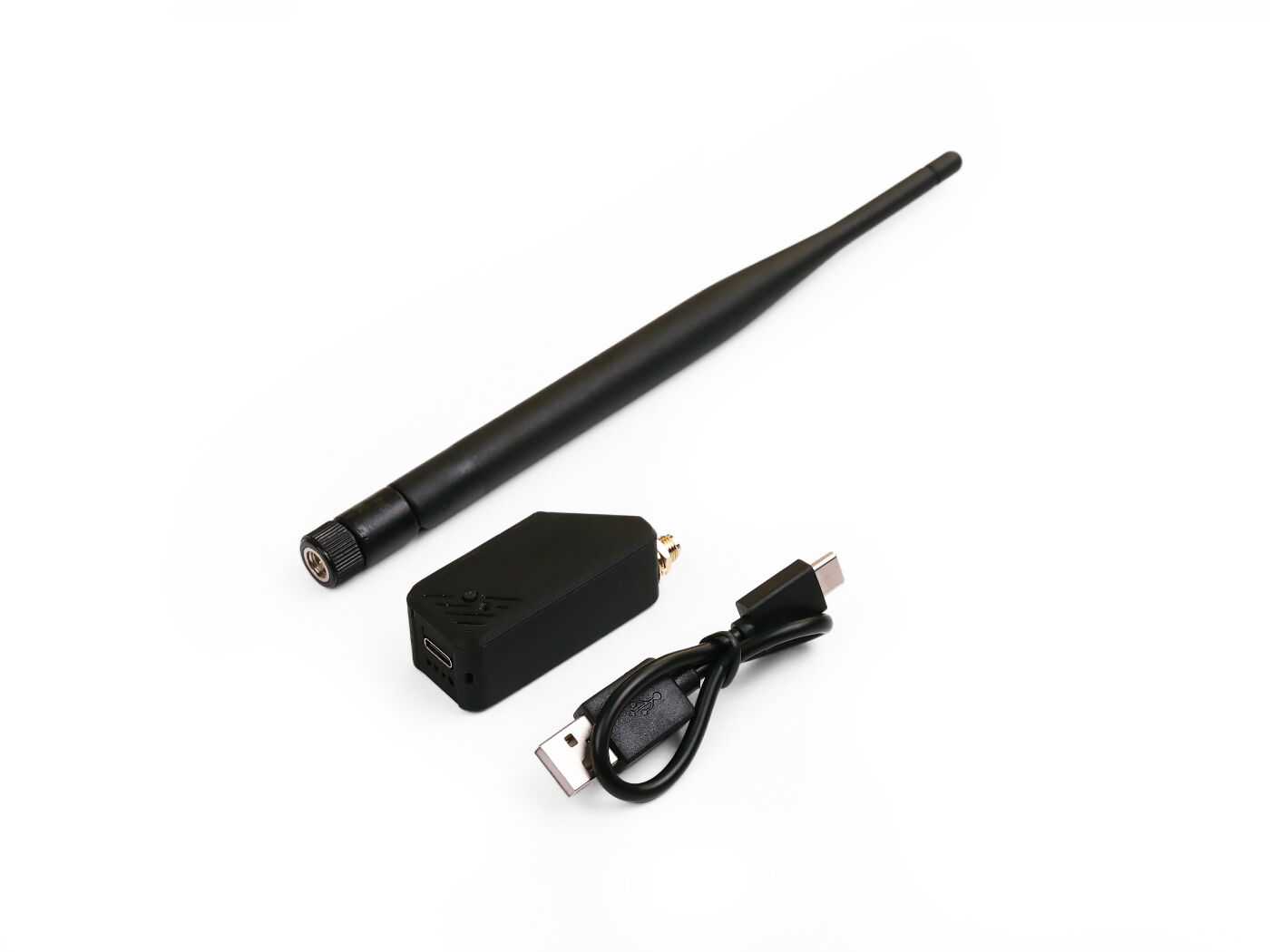

| Wio-SX1262 and XIAO ESP32S3 kit with 3D-Printed Enclosure | x 1 |
| 2dBi-868-915MHZ-SMA Antenna | x 1 |
| 20cm USB type C cable | x 1 |
| HSCODE | 8517629990 |
| USHSCODE | 8517620010 |
| EUHSCODE | 8517180000 |
| COO | CHINA |
Product Overview

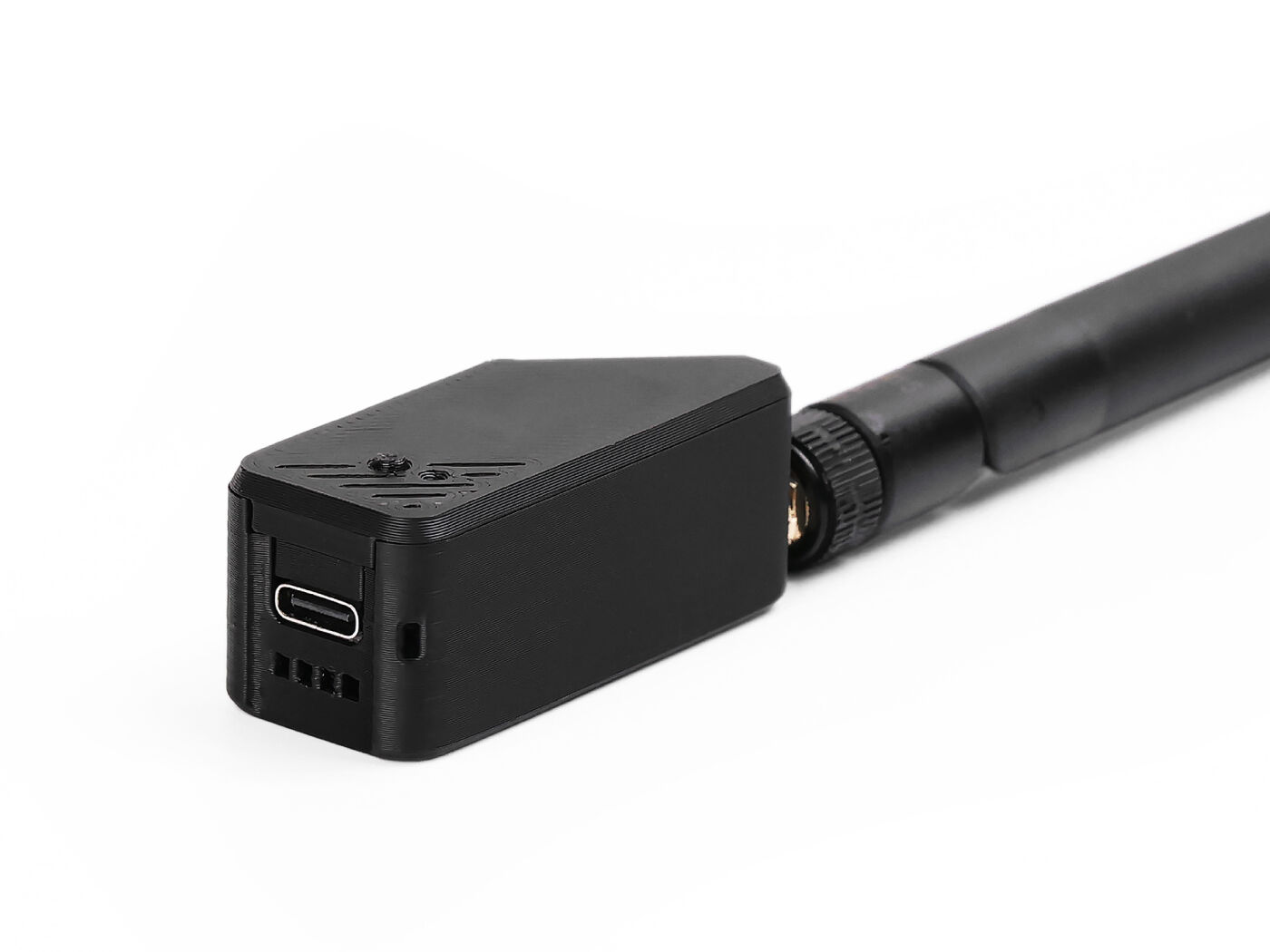

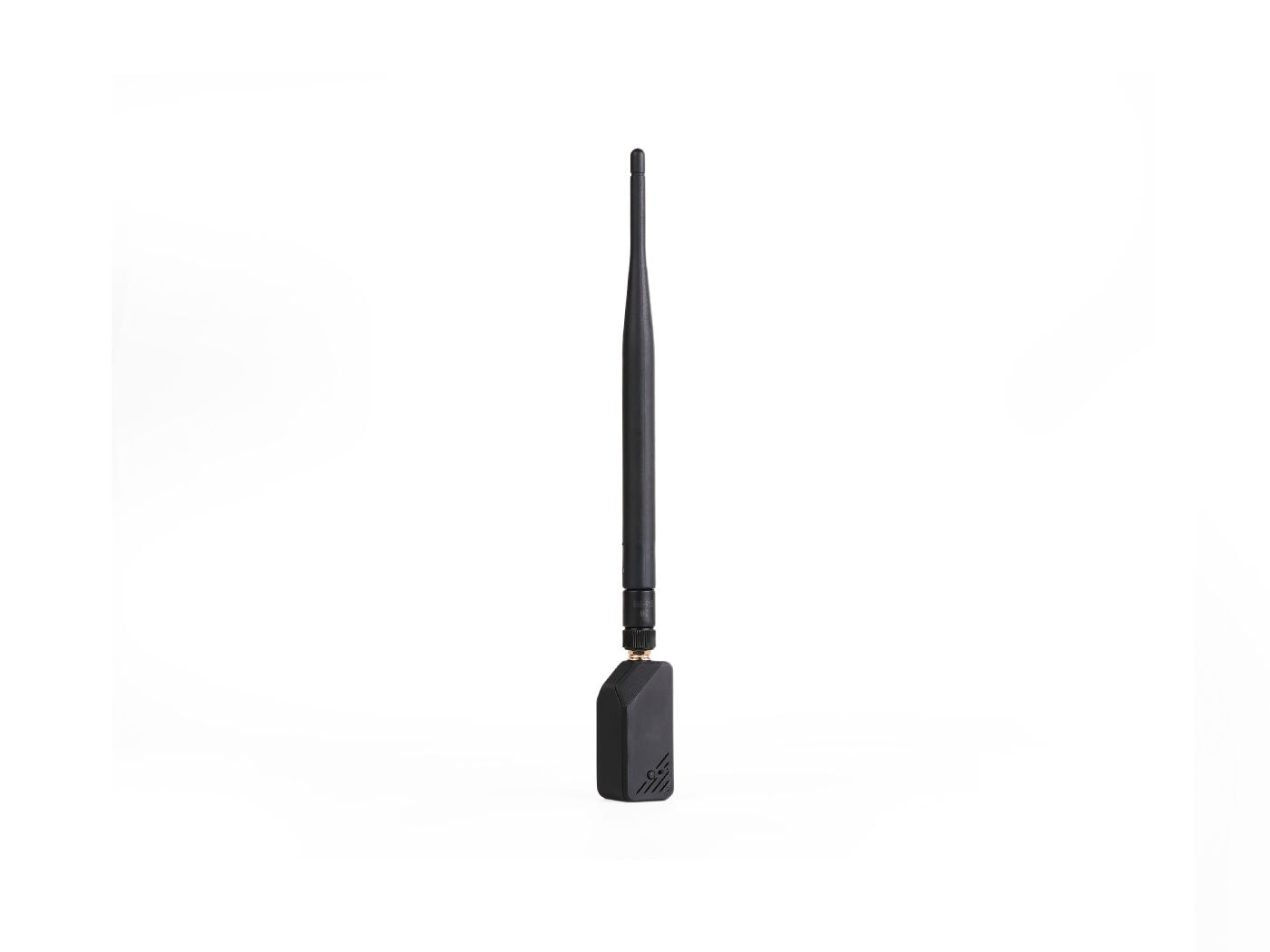

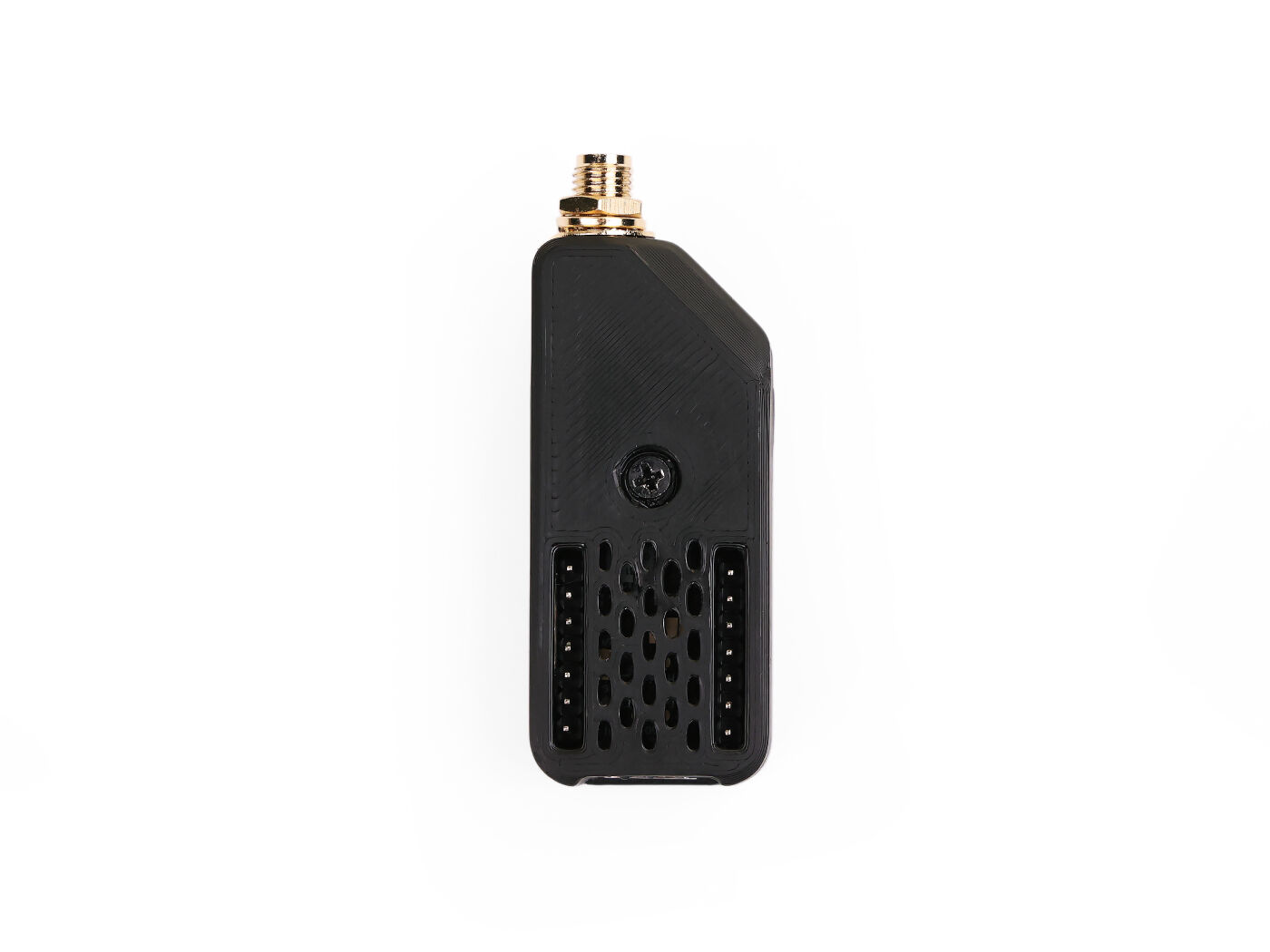

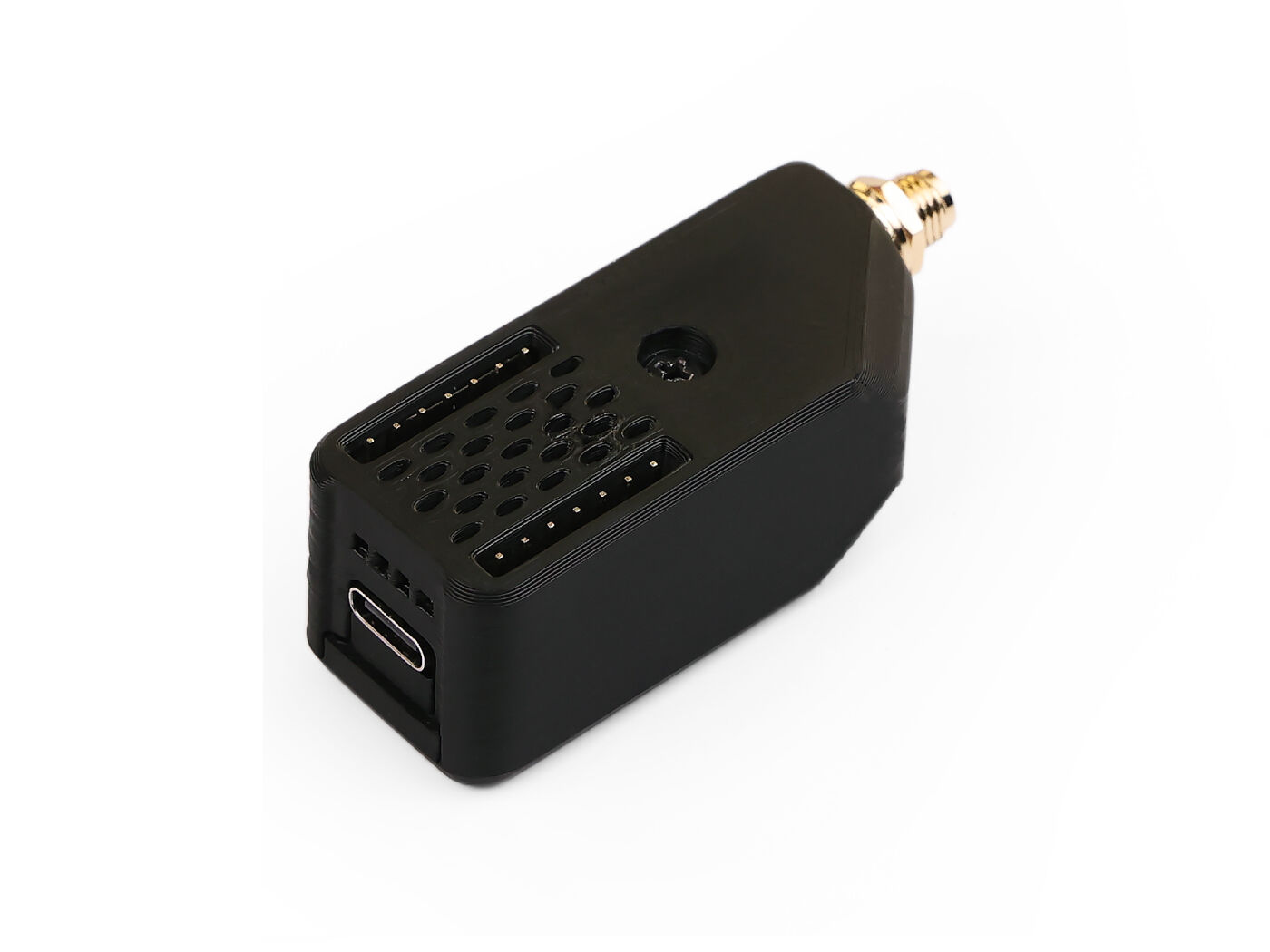

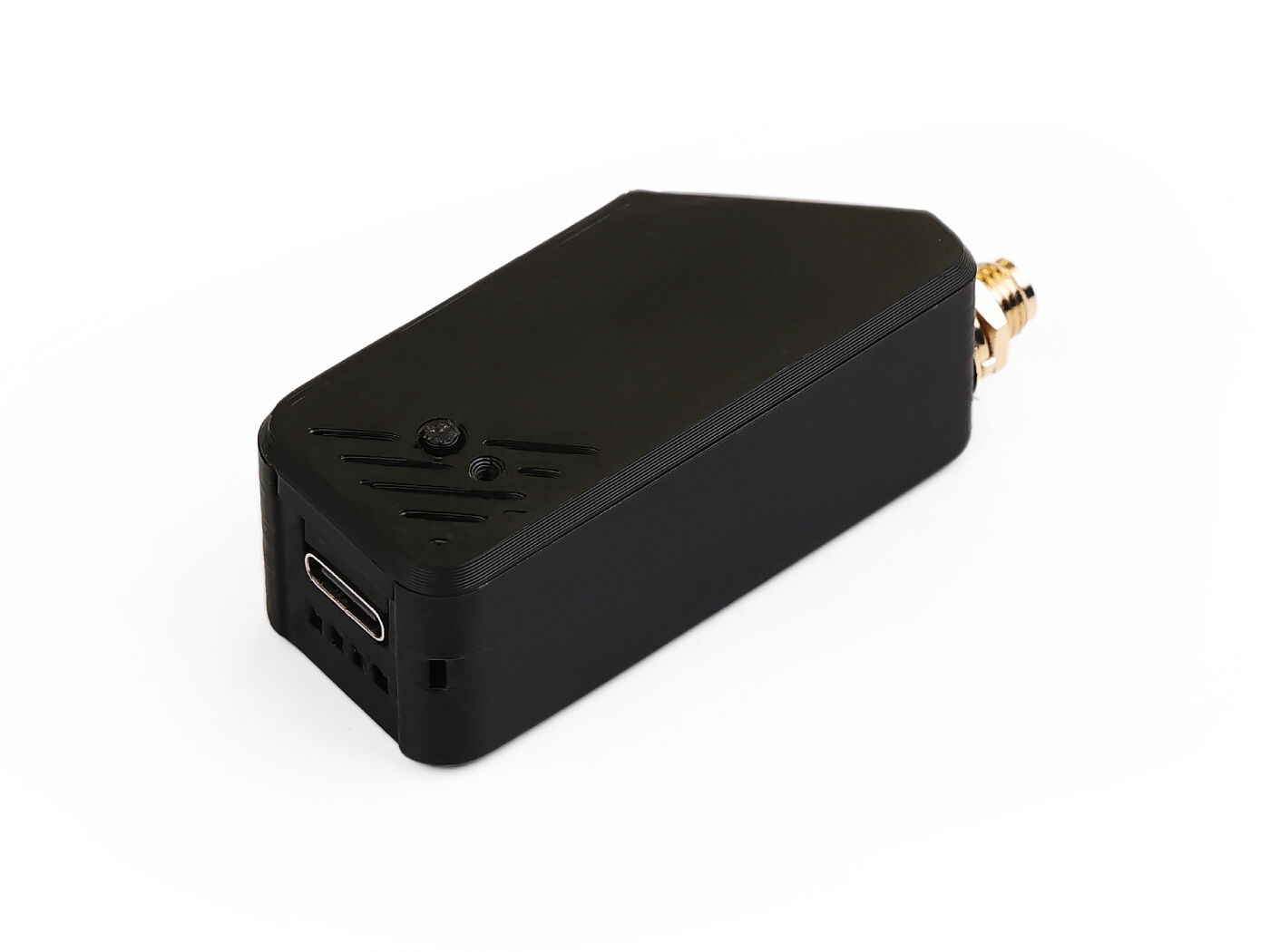

This device is based on XIAO ESP32S3 and Wio-SX1262 LoRa module. Coupled with an exquisite 3D – printed casing, it is equipped with an 868 – 915MHZ wide frequency range and 2dBi gain external antenna. It can support 2~5km single channel lorawan gateway and meshtastic communication. Through the GPIO port, it can be paired with GNSS modules and other additional modules.
Note: T h e SX1262 i n t h e " X i a o nRF52840 & W i o – S X 1 2 6 2 K i t " IS NOT COMPATIBLE w i t h t h e X i a o E S P 3 2 S 3 . The product comes pre-flashed with LoRa single-channel gateway firmware, allowing you to start using it through the SenseCraft app in just three steps. If you're a Meshtastic user, please Flash the Firmware before using it. Ready for Meshtastic ： the kit works out of the box and can quickly join or create a Meshtastic mesh network. Dual Wireless Connectivity ： Supports long-range LoRa communication (862–930 MHz) along with 2.4 GHz Wi-Fi and BLE 5.0. When used with a U.FL antenna, it can achieve 2–5 km LoRa communication and 100 m+ Wi-Fi/BLE range. Thumb-Sized Compact Design ： With a compact size of just 21 × 18 mm and the classic XIAO form factor, it is ideal for space-constrained projects such as wearables and embedded devices. Powerful ESP32-S3 MCU ： Powered by the ESP32-S3 dual-core Xtensa processor running up to 240 MHz. The board includes multiple expansion interfaces and supports Arduino and MicroPython development. Integrated Power Management ： Equipped with a USB Type-C interface and built-in lithium battery charging management for flexible power options. Flexible for Multiple Applications ： The same hardware can be used as a Meshtastic node or router, a single-channel LoRaWAN gateway, or a LoRa/LoRaWAN sensor platform.
