LoRa / RF ModuleIndoor

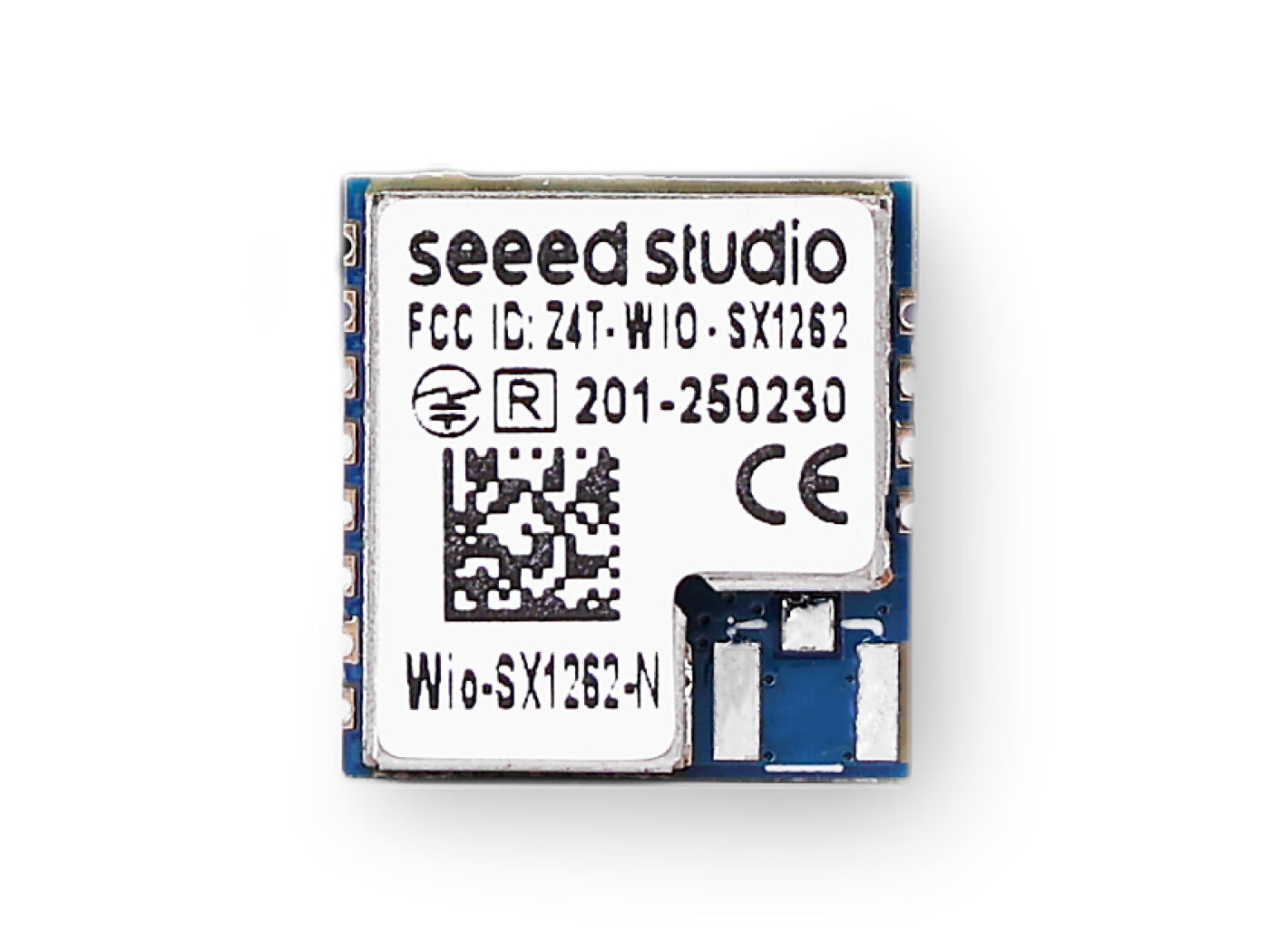

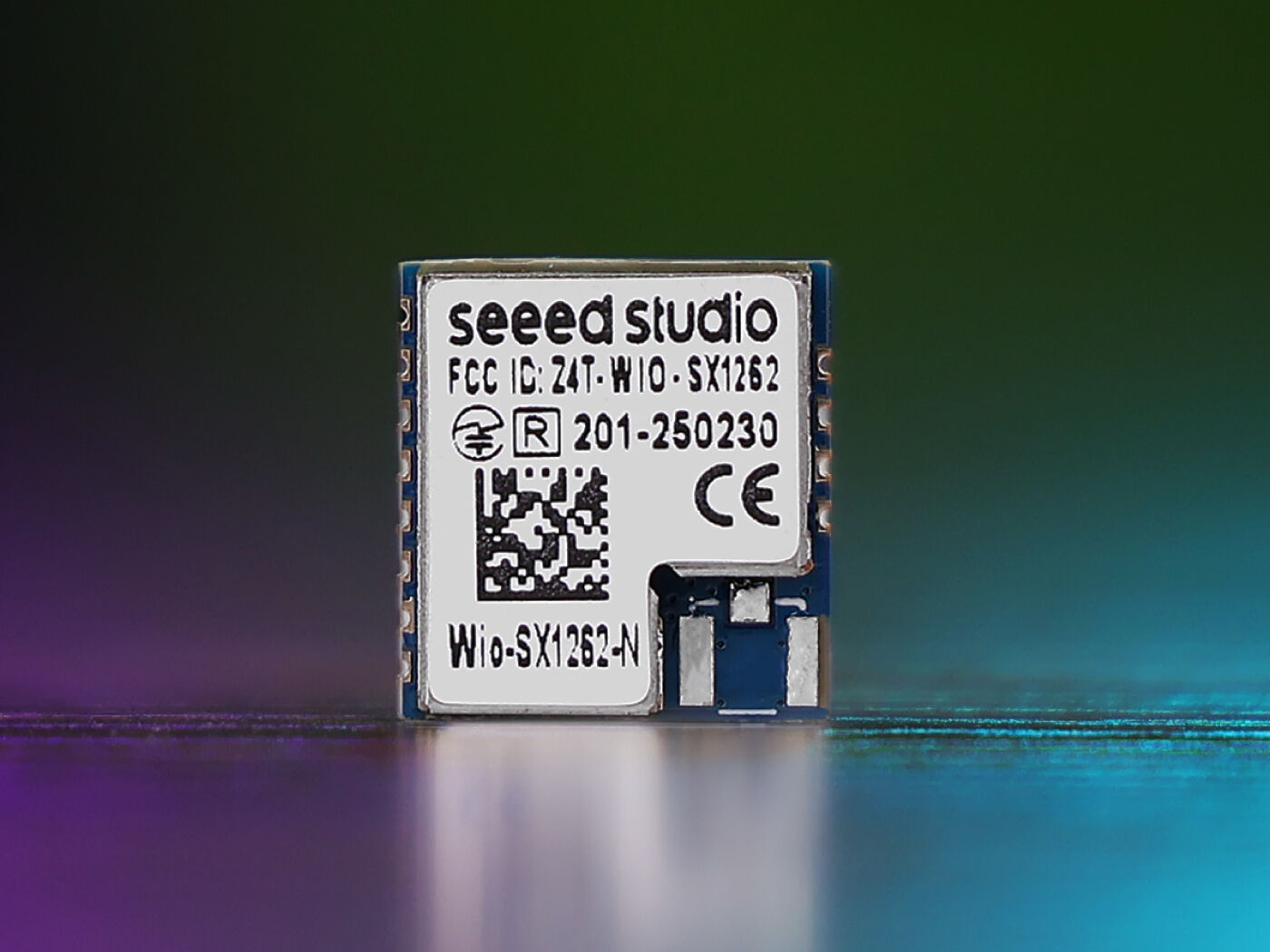

Wio-SX1262 LoRa Wireless Module without IPEX (Tape Reel), SX1262 embedded, supports LoRa&LoRaWAN on EU868 & US915
$4.29
USD
The Wio-SX1262 is a LoRa wireless module based on the Semtech SX1262 chip, supporting LoRa & LoRaWAN frequencies from 868 to 915 MHz. Its SMT-packaged RF pins provides direct pin-out interfaces for PCB antenna…
Frequencysupports 862-930MHz
ConnectivityLoRaWAN · LoRa
Secure Payment Options
Bank transfer or cryptocurrency
Bank Transfer
Cryptocurrency (Bitcoin)
365-Day Recorded Warranty
Eligibility linked to the product and serial record
Secure Approved Payments
Bank transfer or cryptocurrency
Order & Serial-Linked Support
Traceable order and after-sales assistance
Frequency & Interface Compatibility
Radio frequency and hardware interfaces are documented
Technical Specifications
Verified product data organized in one table
| Product Classification | |
|---|---|
| Product Profile | LoRa / RF Module |
| Environment / Deployment | Indoor |
| Primary Use Cases | Agriculture and environmental monitoring |
| Network & Ecosystem | |
| Connectivity / Protocol | LoRaWAN, LoRa |
| LoRaWAN Regional Compatibility | |
| Supported Regions | EU868, US915 |
| Frequency Range | supports 862-930MHz |
| LoRaWAN Technical Specifications | |
| RX Sensitivity | -136.73dBm @SF12, BW125kHz typical |
| Antenna Type | SMT pin |
| Power | |
| Power Method | DC |
| Input Voltage | 3.3V @typical |
| Physical & Environmental | |
| Operating Temperature | -40°C ~ 85°C |
| Module & Development Specifications | |

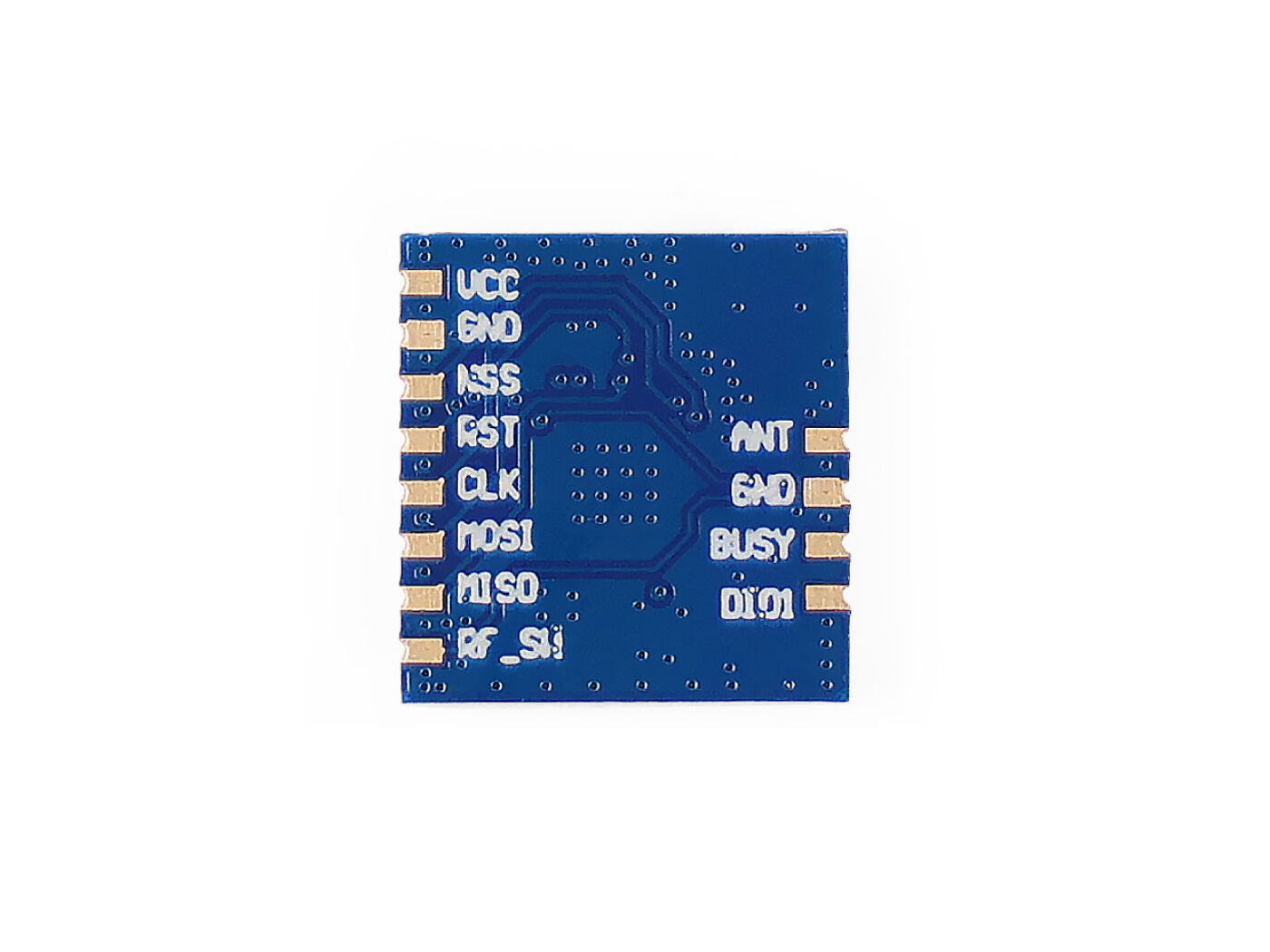

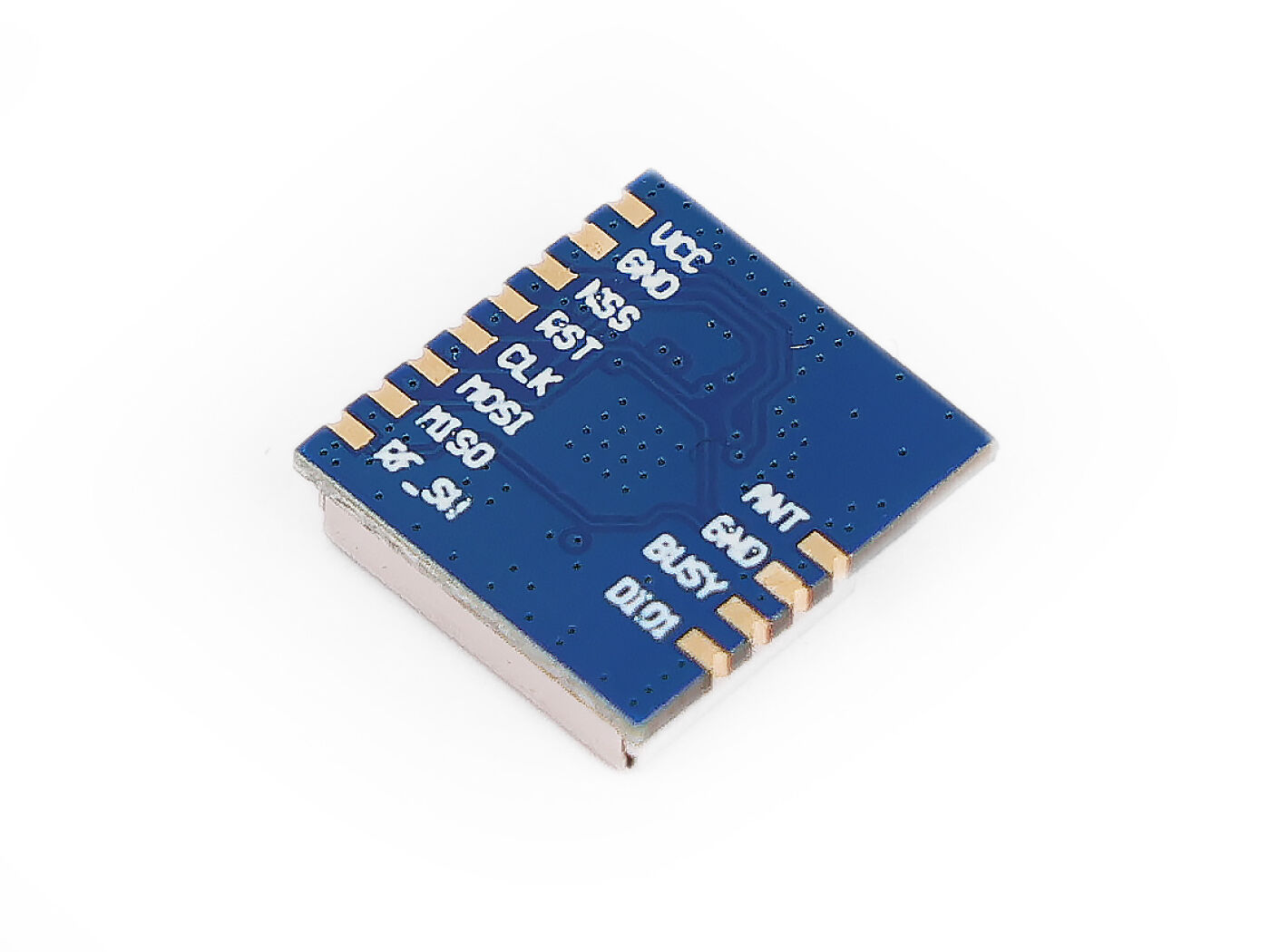

| I/O & Interfaces | 1 x SPI DIO1: Multi-purpose digital IO Busy: Busy signal indicator DIO2: Multi-purpose digital IO, internally connected to RF switch DIO3: TCXO voltage power supply configure through software |
| Detailed Technical Data | |
| Main Chip | SX1262 |

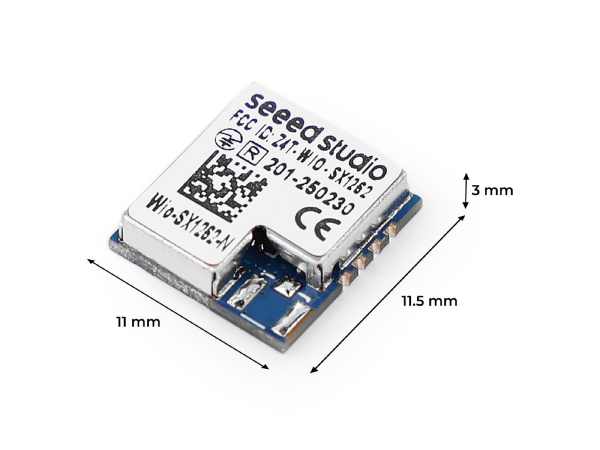

| Size | 11.6(W) 11(L) 2.95(H) mm |
| Package | 12 pins, SMT |
| Frequency | supports 862-930MHz |
| Power Supply | 3.3V @typical |
| Sleep Current | 1.62 μA |
| SX1262 Power Distribution Mode | DC-DC Mode |
| TCXO Supply Mode | By SX1262 DIO3 |
| TCXO Supply Voltage | 1.7~3.3 V |
| Maximum Operation Current (Transmitter) | 125mA @22dBm in 862-930MHz typical |
| Maximum Operation Current (Receiver) | 7.6mA @BW125kHz, 862-930MHz typical |
| Output Power | 22dBm max @862-930MHz |
| Receiver Sensitivity | -136.73dBm @SF12, BW125kHz typical |
| Harmonics | ≤-45dBm above 1GHz |
| Antenna | SMT pin |
| Interface | 1 x SPI DIO1: Multi-purpose digital IO Busy: Busy signal indicator DIO2: Multi-purpose digital IO, internally connected to RF switch DIO3: TCXO voltage power supply configure through software |
| Working Temperature | -40°C ~ 85°C |
| Units per Reel | 1000pcs |
| Wio-SX1262-N Wireless Module (without IPEX) | x1 |
| HSCODE | 8517799000 |
| USHSCODE | 8517620090 |
| EUHSCODE | 8517180000 |
| COO | CHINA |
Product Overview
The Wio-SX1262 is a LoRa wireless module based on the Semtech SX1262 chip, supporting LoRa & LoRaWAN frequencies from 868 to 915 MHz. Its SMT-packaged RF pins provides direct pin-out interfaces for PCB antenna integration. C ombined with high-quality components like the TCXO, it ensures stable operation even under harsh conditions. Suitable for industrial, agricultural, smart home, and other long-range, low-power applications.
Note: The Wio-1262-N module does not include an IPEX antenna connector. If your application requires an IPEX interface for external antenna compatibility, please refer to the Wio-SX1262 Wireless Module SKU: 114993390 . High Performance: The transmit power up to 22dBm @868/930MHz; -136.73dBm sensitivity for SF12 with 125KHz BW. Wireless Connectivity: SPI interface, supports 862~930MHz global LoRa&LoRaWAN frequency plan. Small Size: 6mm X 11mm * 2.95mm @12 pins SMT. Low Power Consumption: 1. 62uA sleep current . RF Interface: SMT Pin. FCC ID, CE, RoHS, TELEC Certified The Wio-SX1262 and Wio-E5 are both perfect choices for designing LoRa devices. Their main differences lie in whether you have a host MCU: If you already have an MCU, such as an nRF52840 or ESP32, and you just need to add LoRa functionality, you can choose the Wio-SX1262 . the Wio-SX1262 series now includes the Wio-SX1262-N , which does not have an IPEX connector but instead uses SMT packaging to route the antenna from the PIN pins to an onboard antenna. If you need a single MCU to complete your design, then the Wio-E5 is an excellent choice.
