Wio-SX1262 LoRa Wireless Module (Tape Reel), SX1262 embedded, supports LoRa&LoRaWAN on EU868 & US915
Technical Specifications
Verified product data organized in one table
| Product Classification | |
|---|---|
| Product Profile | LoRa / RF Module |
| Environment / Deployment | Indoor |
| Primary Use Cases | Agriculture and environmental monitoring |
| Network & Ecosystem | |
| Supported Network / Ecosystem | Meshtastic |
| Connectivity / Protocol | LoRaWAN, LoRa, Meshtastic |
| LoRaWAN Regional Compatibility | |
| Supported Regions | EU868, US915 |
| Frequency Range | supports 862-930MHz |
| LoRaWAN Technical Specifications | |
| RX Sensitivity | -136.73dBm @SF12, BW125kHz typical |

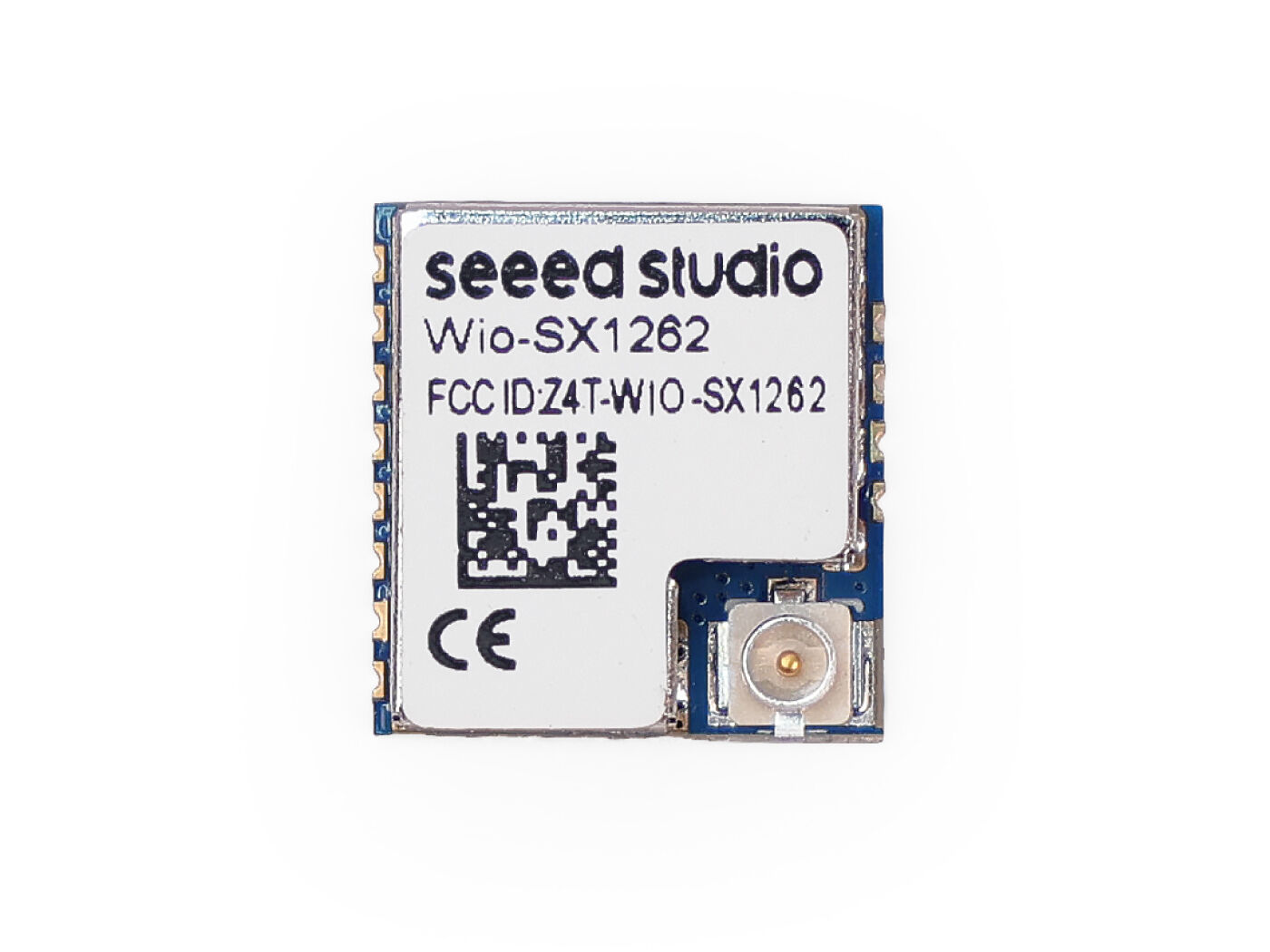

| Antenna Type | IPEX port or SMT pin, default IPEX @50-ohm impedance |
| Power | |
| Power Method | DC |
| Input Voltage | 3.3V @typical |
| Physical & Environmental | |
| Operating Temperature | -40°C ~ 8 5°C |
| Module & Development Specifications | |

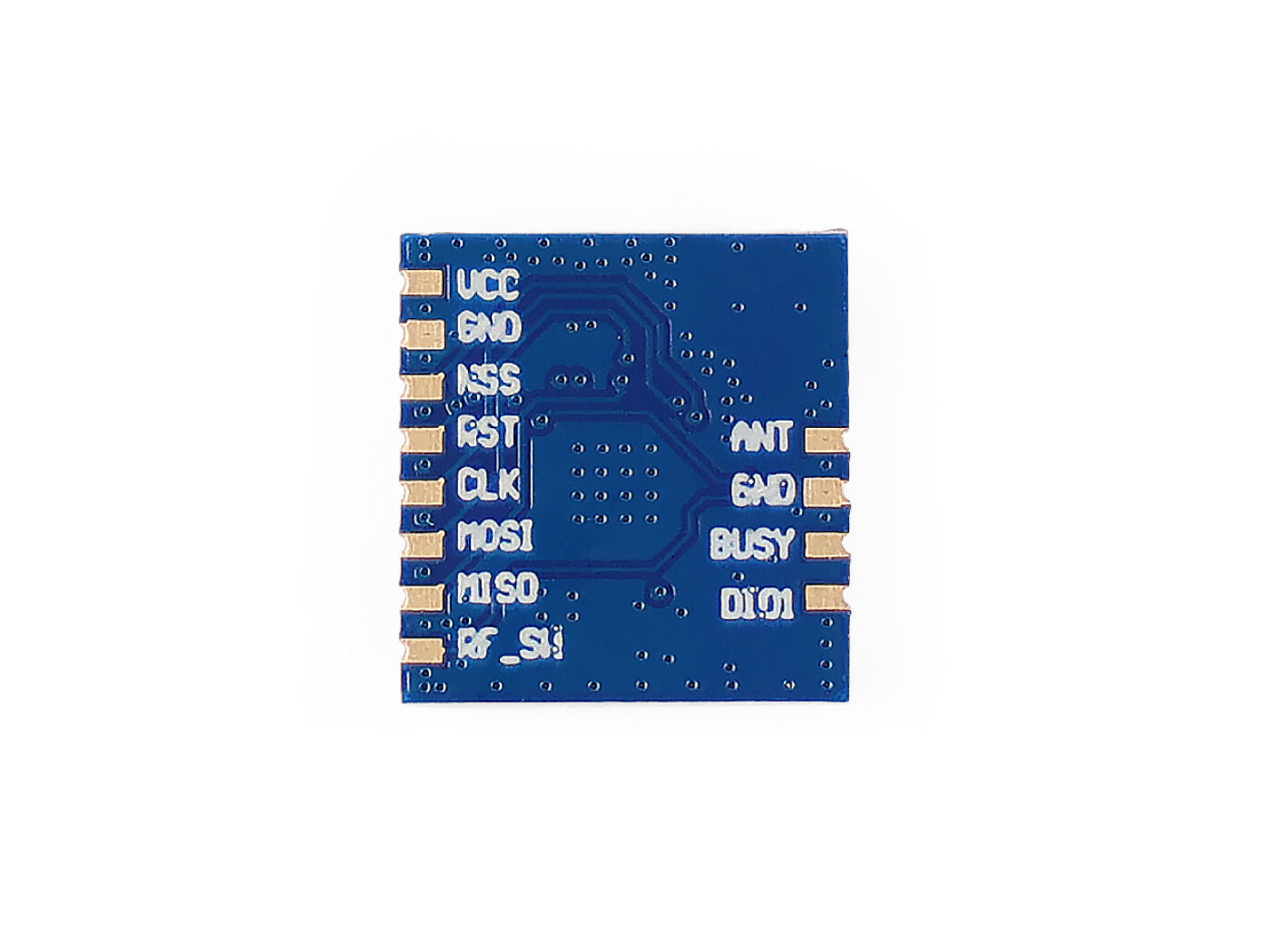

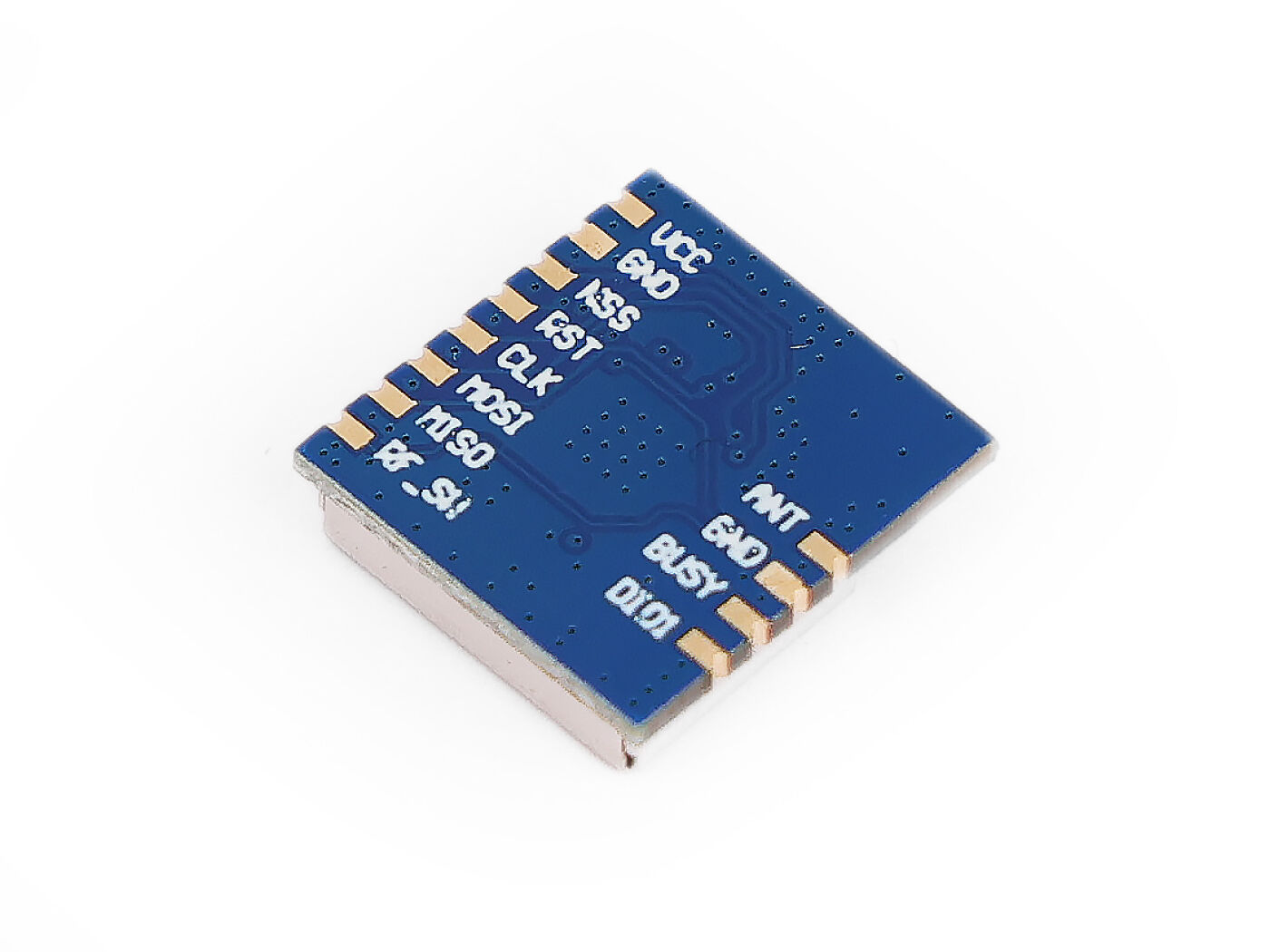

| I/O & Interfaces | 1 x SPI DIO1: Multi-purpose digital IO Busy: Busy signal indicator DIO2: Multi-purpose digital IO, internally connected to RF switch DIO3: TCXO voltage power supply configure through software |
| Detailed Technical Data | |
| Main Chip | SX1262 |

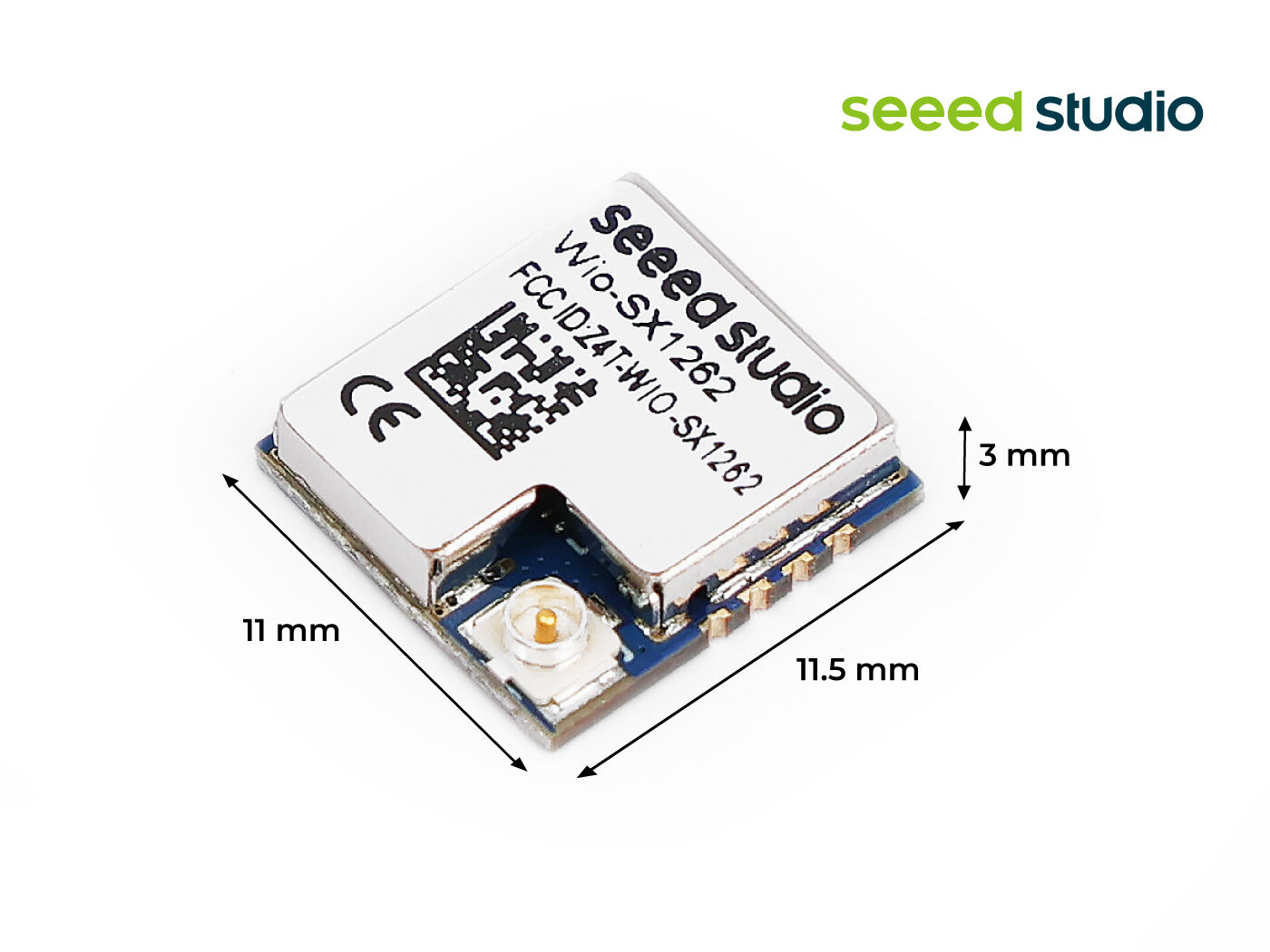

| Size | 11.6(W)*11(L)*2.95(H) mm |
| Package | 12 pins, SMT |
| Frequency | supports 862-930MHz |
| Power Supply | 3.3V @typical |
| Sleep Current | 1.62 μA |
| SX1262 Power Distribution Mode | DC-DC Mode |
| TCXO Supply Mode | By SX1262 DIO3 |
| TCXO Supply Voltage | 1.7~3.3 V |
| Maximum Operation Current (Transmitter) | 125mA @22dBm in 862-930MHz typical |
| Maximum Operation Current (Receiver) | 7.6mA @BW125kHz, 862-930MHz typical |
| Output Power | 22dBm max @862-930MHz |
| Receiver Sensitivity | -136.73dBm @SF12, BW125kHz typical |
| Harmonics | ≤-45dBm above 1GHz |
| Antenna | IPEX port or SMT pin, default IPEX @50-ohm impedance |
| Interface | 1 x SPI DIO1: Multi-purpose digital IO Busy: Busy signal indicator DIO2: Multi-purpose digital IO, internally connected to RF switch DIO3: TCXO voltage power supply configure through software |
| Working Temperature | -40°C ~ 8 5°C |
| Units per Reel | 1000pcs |
| Wio-SX1262 Module | x1 |
| HSCODE | 8517799000 |
| USHSCODE | 8517620090 |
| EUHSCODE | 8517180000 |
| COO | CHINA |
Product Overview
The Wio-SX1262 is a LoRa wireless module based on the Semtech SX1262 chip, supporting LoRa & LoRaWAN frequency from 868 to 915 MHz. Equipped with an onboard IPEX antenna connector and high-quality components like the TCXO, it ensures stable operation even under harsh conditions. Suitable for industrial, agricultural, smart home, and other long-range, low-power applications.
High Performance: The transmit power up to 22dBm @868/930MHz; -136.73dBm sensitivity for SF12 with 125KHz BW. Wireless Connectivity: SPI interface, supports 862~930MHz global LoRa&LoRaWAN frequency plan. Small Size: 6mm X 11mm * 2.95mm @12 pins SMT. Low Power Consumption: 1.62uA sleep current . Onboard RF Interface: default IPEX antenna port. FCC ID, CE, RoHS Certified The Wio-SX1262 and Wio-E5 are both perfect choices for designing LoRa devices. Their main differences lie in whether you have a host MCU: If you already have an MCU, such as an nRF52840 or ESP32, and you just need to add LoRa functionality, you can choose the Wio-SX1262. If you need a single MCU to complete your design, then the Wio-E5 is an excellent choice. If you want to quickly start testing the module, you can choose the Wio-SX1262 with XIAO ESP32S3 Dev Kit, which allows for rapid prototyping based on Arduino, IDF, and others IDE, and provides firmware demos for LoRaWAN, Meshtastic, etc. ODM & OEM With over 10 years of ODM & OEM experience, our engineers and product experts are proficient in delivering customization and manufacturing services for hardware products. We are committed to assisting you at any moment and shortening your path from idea to product for emerging AIoT scenarios. If you want to design in our Wio-E5/Wio-SX1262 Module, we provide a one-stop ODM and OEM service for quick customization and scale-up.
