Tracker / Mesh DevicePrivate LoRaWANIndoor & Outdoor
SenseCAP T1000-B LoRaWAN Tracker for Indoor and Outdoor Positioning
$29.90
USD

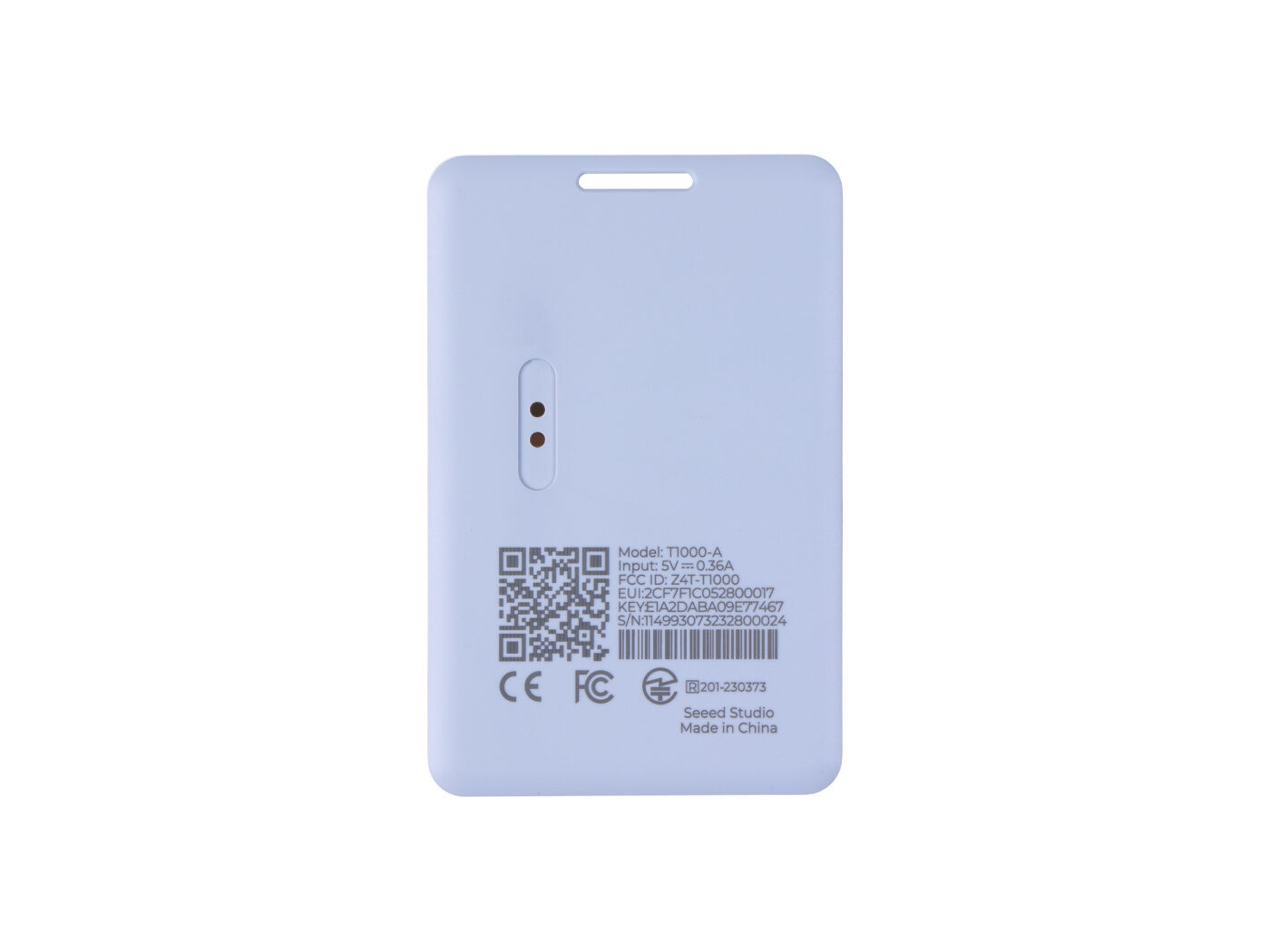

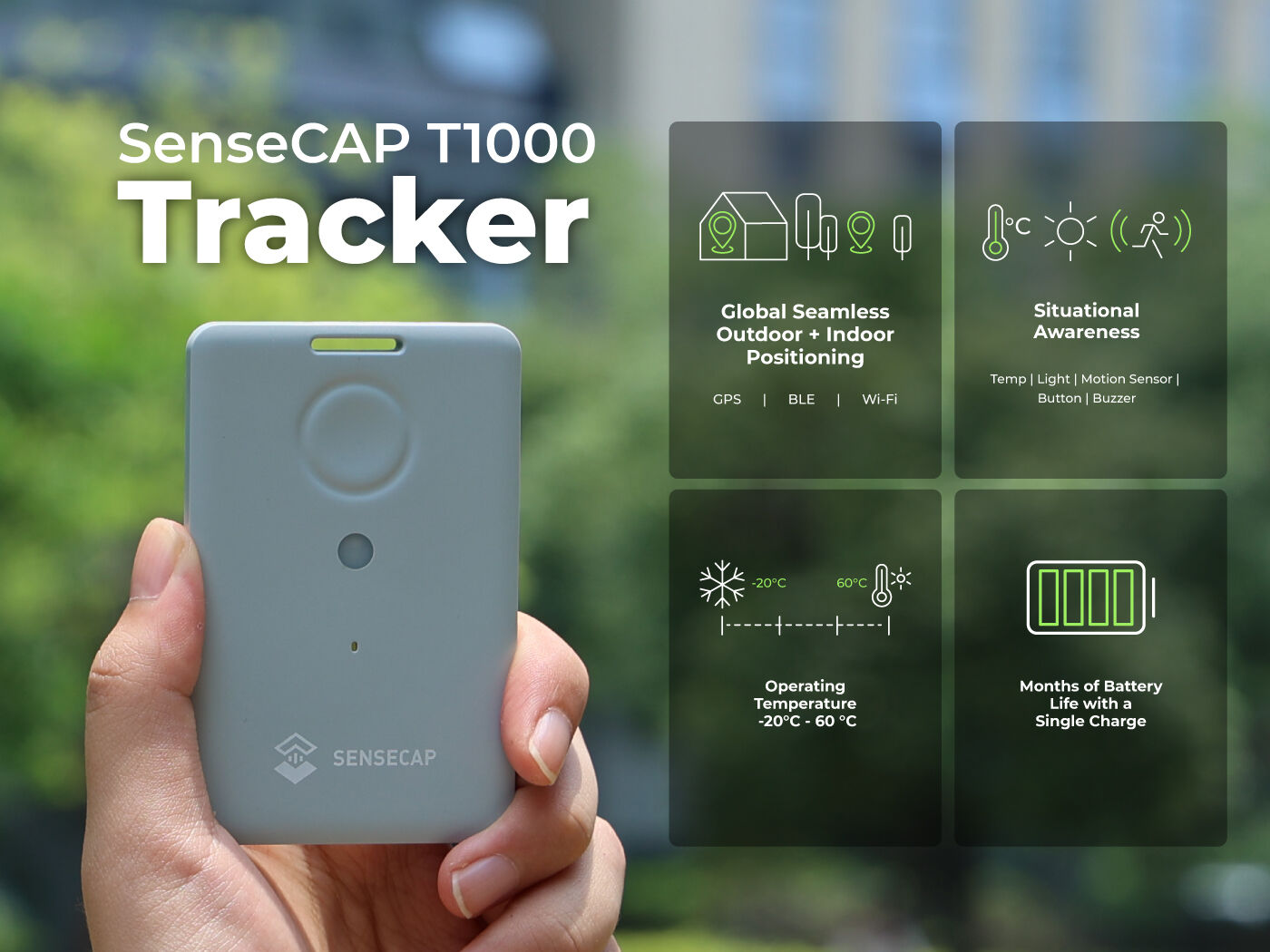

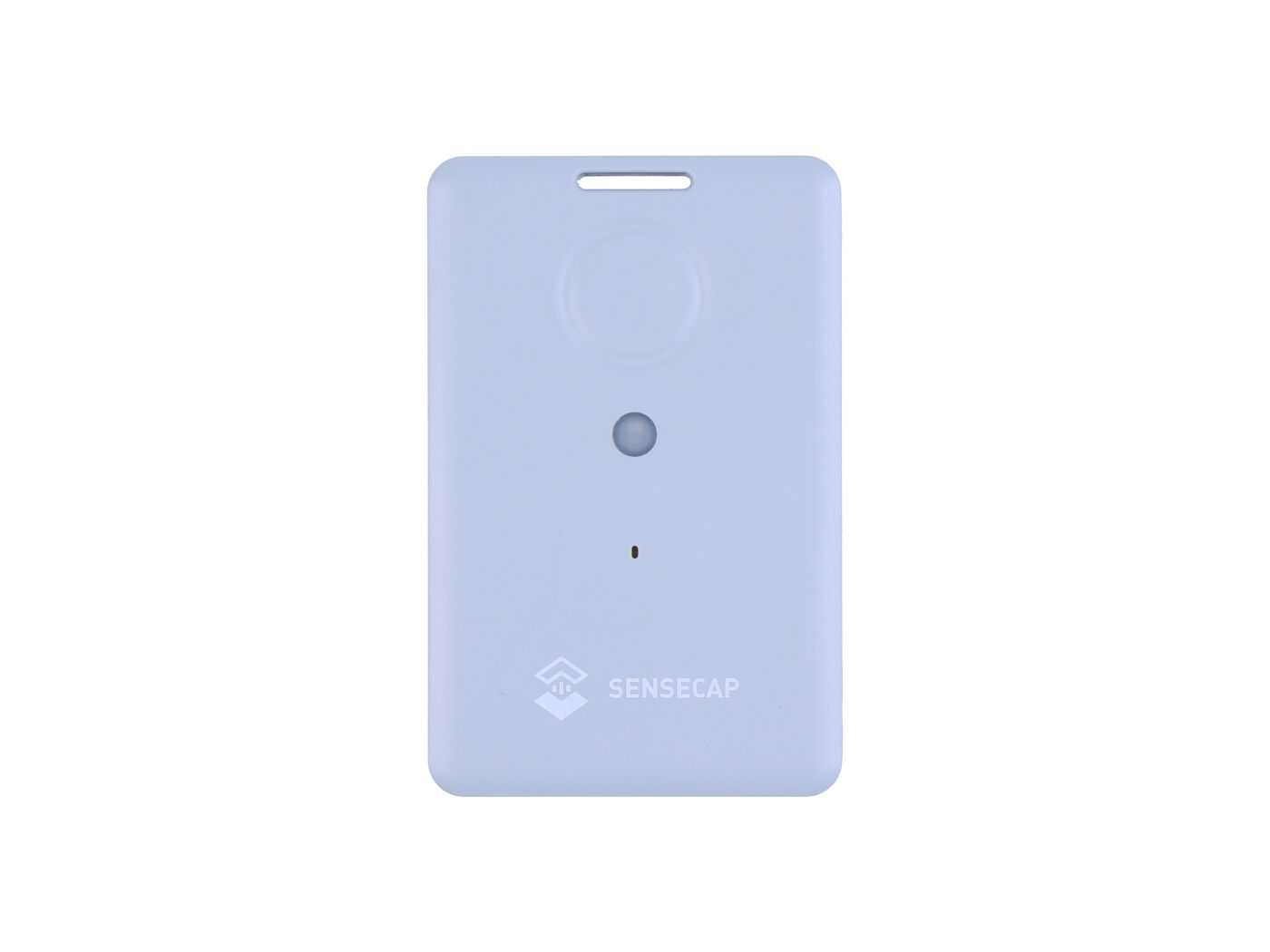

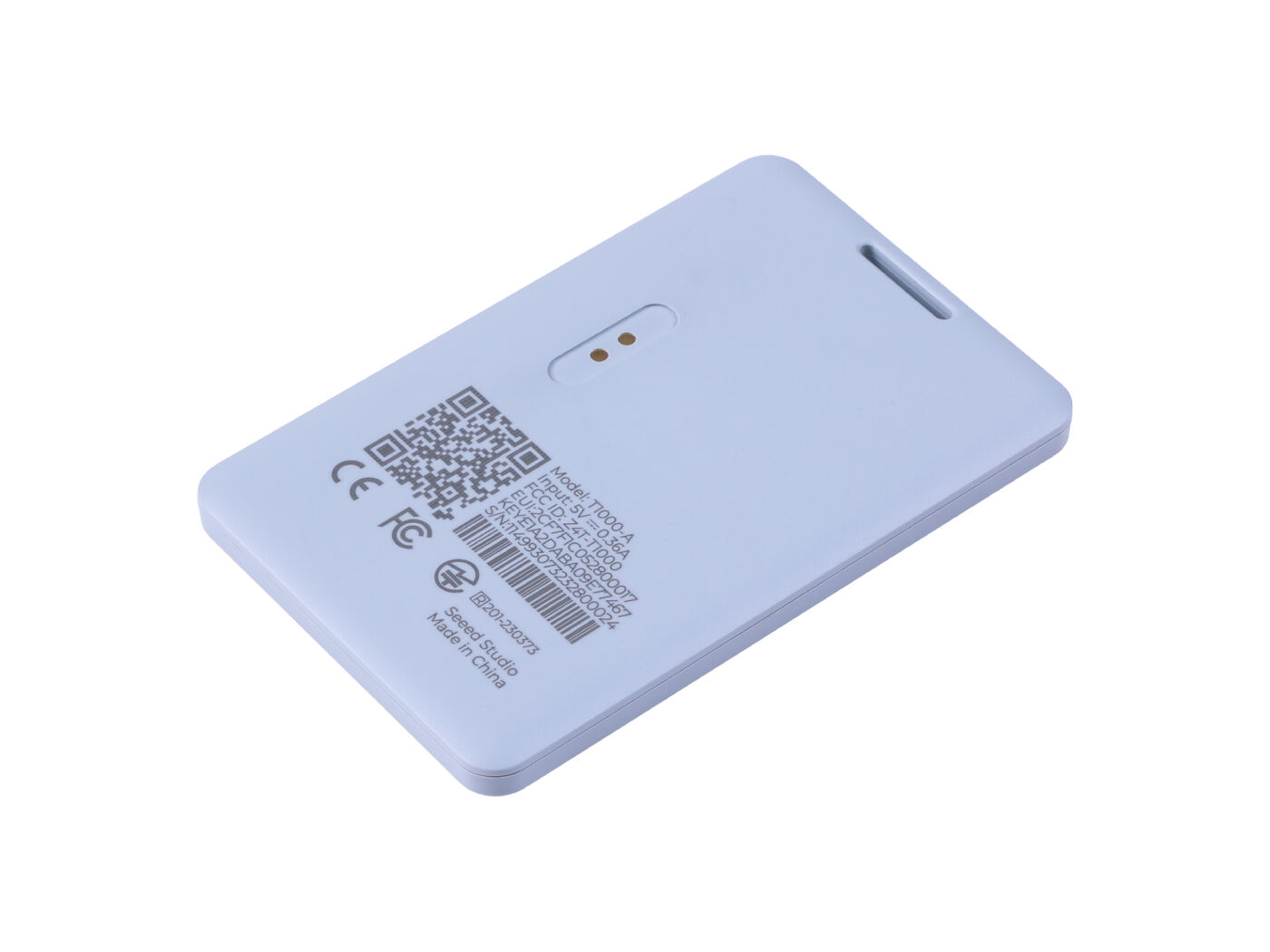

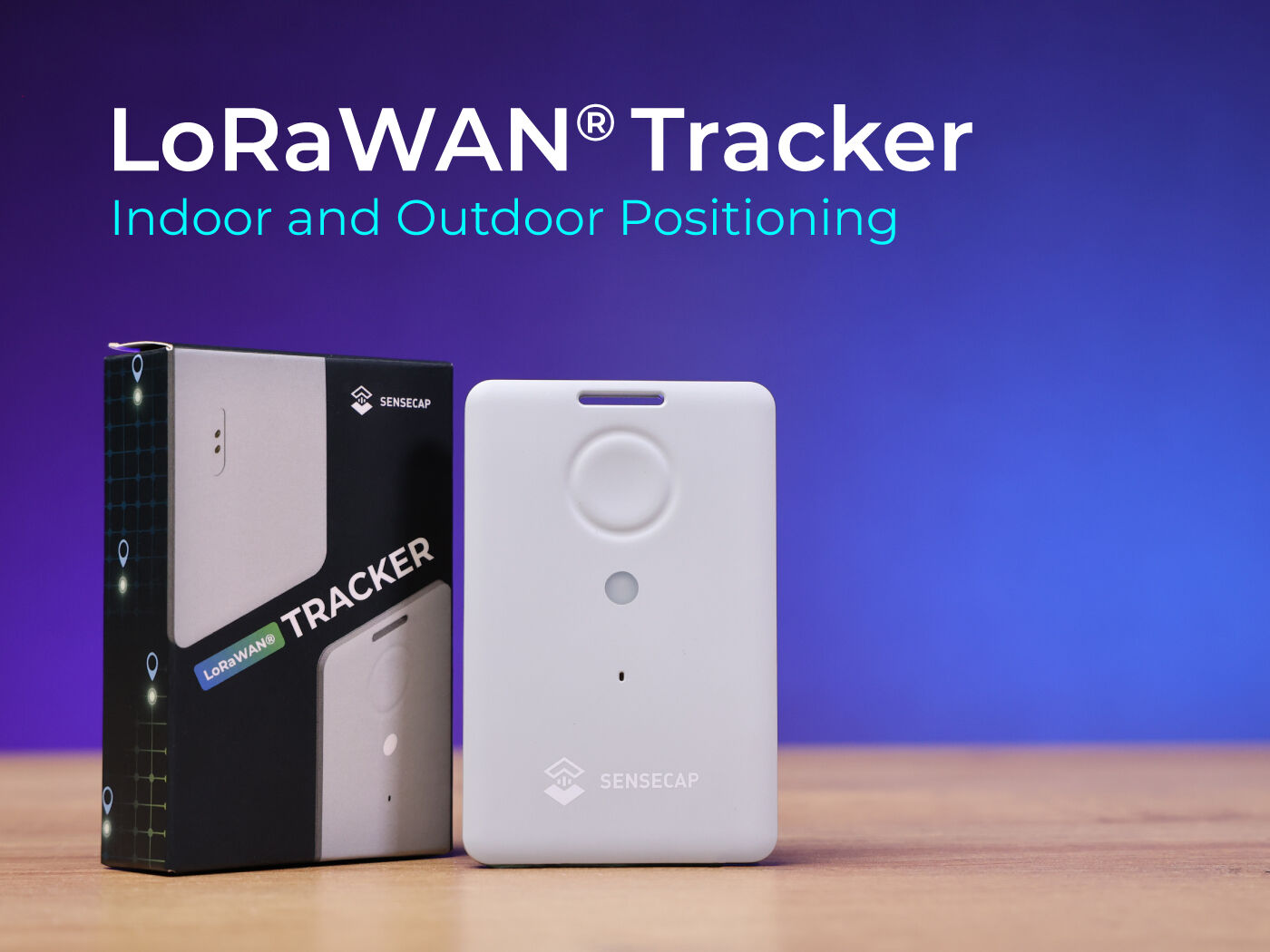

The SenseCAP T1000 is a card-size LoRaWAN® tracker that utilizes GNSS/Wi-Fi/Bluetooth for precise indoor & outdoor location tracking. It assures reliable tracking across various applications.
Mesh / TrackingGNSS tracking
PositioningGPS/GLONASS/Galileo/ BeiDou/QZSS
Battery Life4 months on a single charge(uplink every 1 hour, only GNSS data)
Secure Payment Options
Bank transfer or cryptocurrency
Bank Transfer
Cryptocurrency (Bitcoin)
365-Day Recorded Warranty
Eligibility linked to the product and serial record
Secure Approved Payments
Bank transfer or cryptocurrency
Order & Serial-Linked Support
Traceable order and after-sales assistance
Verified Network Compatibility
Positioning, radio and network support are documented
Technical Specifications
Verified product data organized in one table
| Product Classification | |
|---|---|
| Product Profile | Tracker / Mesh Device |
| Environment / Deployment | Indoor & Outdoor |
| Primary Use Cases | Asset, personnel and outdoor tracking |
| Network & Ecosystem | |
| Supported Network / Ecosystem | SenseCAP, Private LoRaWAN |
| Connectivity / Protocol | LoRaWAN, LoRa, Wi-Fi, Bluetooth, BLE, LTE / Cellular, USB, GNSS / GPS |
| LoRaWAN Regional Compatibility | |
| Supported Regions | EU868, US915, AU915, AS923, IN865, KR920, RU864 |
| LoRaWAN Technical Specifications | |
| RX Sensitivity | -145dBm cold start / -160 dBm Tracking |
| Antenna Type | Internal (GNSS/LoRa/Wi-Fi/BLE) |
| Power | |
| Power Method | Battery, Solar |
| Input Voltage | 4.7 to 5.5V DC |
| Solar Support | Yes |
| Battery Life | 4 months on a single charge(uplink every 1 hour, only GNSS data) |
| Physical & Environmental | |
| IP Rating | IP65 |
| Operating Temperature | -20℃ to +60℃ |
| Operating Humidity | 5% - 95% (No condensation) |

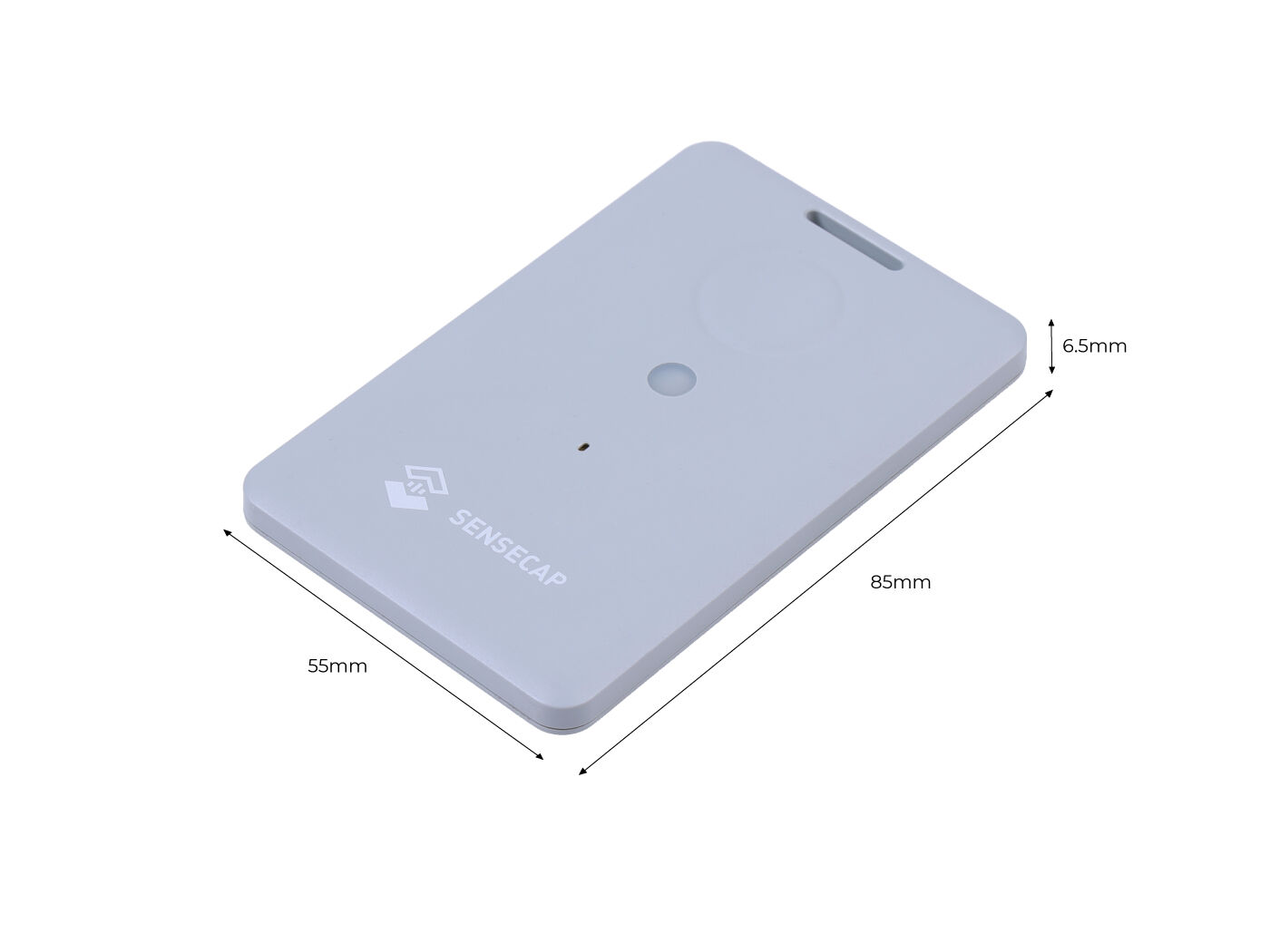

| Dimensions | 85 x 55 x 6.5 mm |
| Certifications | CE /FCC /TELEC /RoHS /REACH |
| Tracker / Mesh Specifications | |
| GNSS / Positioning | GPS/GLONASS/Galileo/ BeiDou/QZSS |
| Tracking / Mesh Modes | GNSS tracking |
| Bluetooth / BLE Version | Bluetooth v5.1, setting via App |
| Detailed Technical Data | |
| Product Model | T1000-A/T1000-B/T1000-E |
| Backhaul | LoRaWAN® (v1.0.4 Class A) |
| Bluetooth | Bluetooth v5.1, setting via App |
| LoRaWAN Channel Plan | IN865/EU868/US915/AU915/AS923/ KR920/RU864 |
| Temperature | Range: -20 to 60℃ ; Accuracy: ± 1℃ Resolution: 0.1℃ |
| Light | 0 to 100% (0 is dark, 100% is brightest ) |
| 3-Axis Accelerometer | 3-Axis Accelerometer to detect movement |
| LED and Buzzer | 1*LED and 1* buzzer to indicate status |
| Button | 1*Button to operate and trigger events(SOS) |
| Antenna | Internal (GNSS/LoRa/Wi-Fi/BLE) |
| Communication Distance | 2 to 10km (depending on gateway antenna, installation, and environments) |
| Device Weight | 32g |
| Certification | CE /FCC /TELEC /RoHS /REACH |
| GNSS Constellation | GPS/GLONASS/Galileo/ BeiDou/QZSS |
| GNSS Sensitivity | -145dBm cold start / -160 dBm Tracking |
| GNSS Location Accuracy | ~1m CEP, GPS, -130dBm |
| Wi-Fi Positioning | Passive scanning, uploads the scanned 4 MAC addresses |
| Bluetooth Positioning | uploads the scanned 3 best signal MAC addresses of Beacon |
| Data Cache | Cache 1000 data when there is no LoRaWAN network |
| Battey Capacity | Rechargeable lithium battery, 700mAh |
| *Battery Life Estimates | 4 months on a single charge(uplink every 1 hour, only GNSS data) |
| Battery Life Monitoring | Periodic uplink battery level |
| Charge Cable (Adapter not included) | USB magnetic charging cable, 1 meter |
| Power Input Voltage | 4.7 to 5.5V DC |
| Charging Temperature | 0 to +45℃ (Beyond the temperature range, the charge will be limited, and the LED will blink quickly) |
| Work Mode | Standby: only heartbeat uplink; Periodic: upload location in intervals; Event: modify the interval by temperature, light and motion(start, end, shock, motionless timeout); |
| Data Storage | Over 1000 location data records store on the device when there is no LoRaWAN® coverage |
| App | Configuration via Bluetooth App |

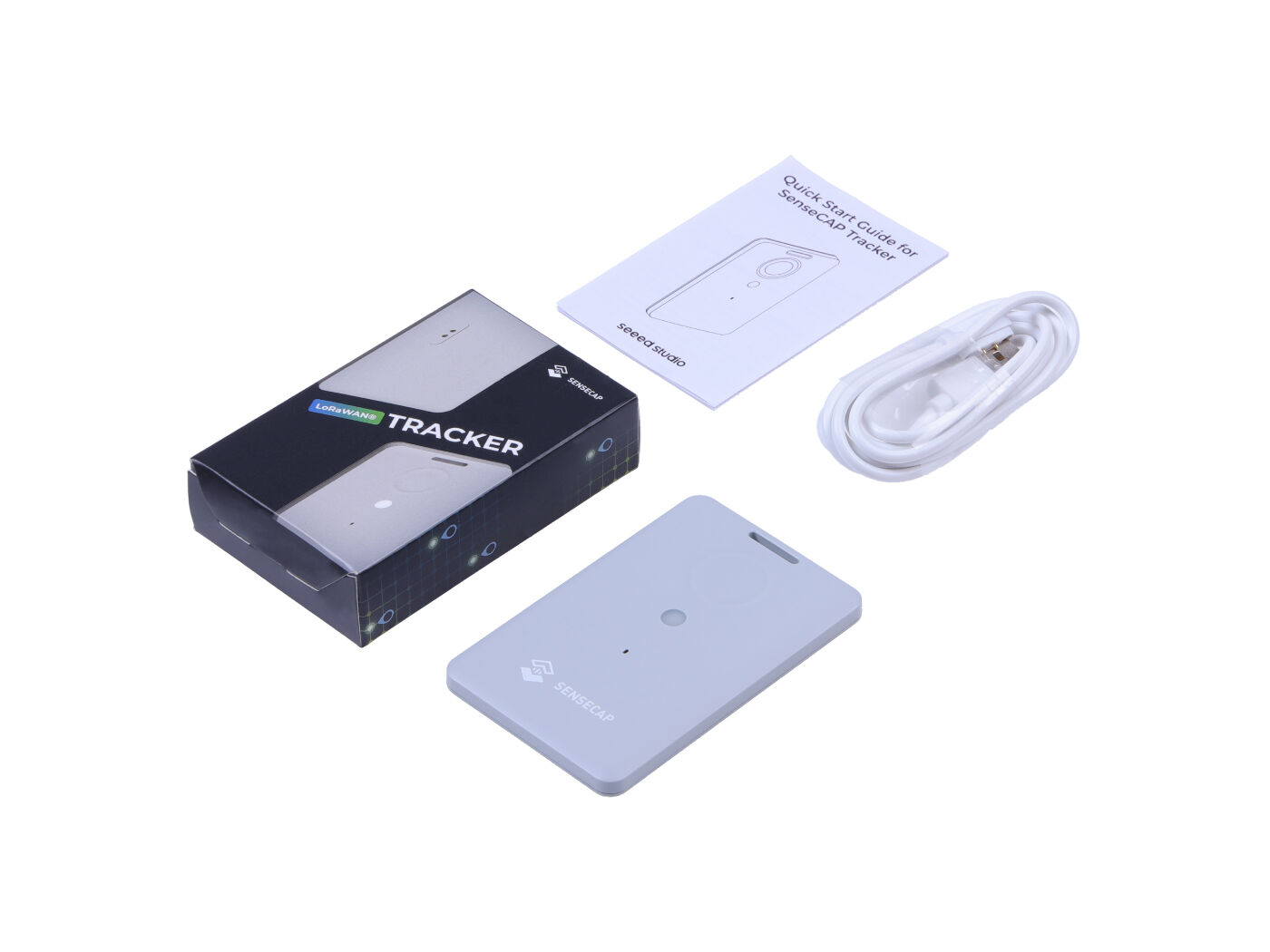

| Tracker | x1 |
| USB Cable (Adapter not included) | x1 |
| Quick Start | x1 |
| HSCODE | 8526919090 |
| USHSCODE | 8517180050 |
| EUHSCODE | 8517180000 |
| COO | CHINA |
Product Overview
The SenseCAP T1000 is a card-size LoRaWAN® tracker that utilizes GNSS/Wi-Fi/Bluetooth for precise indoor & outdoor location tracking. It assures reliable tracking across various applications.
Note: T1000 comes in four versions now: For asset tracking applications that require longer battery life, enhanced durability and optional solar power support, we also launch the SenseCAP T2000 series . The T2000 is specifically designed for robust, long-term outdoor asset tracking deployments. The T2000 has IP67 protection and ATEX certification , suitable for harsh and hazardous environments. A nd a lso su pport s reliable GNSS, BLE and Wi-Fi positioning . What makes SenseCAP T1000 stand out? Feature 1: Seamless indoor and outdoor positioning T1000 effectively employs BLE and Wi-Fi for pinpoint indoor positioning and utilizes GNSS technologies, including GPS, Beidou, Galileo, and GLONASS for precise outdoor tracking. Learn how the SenseCAP T1000-A/B is utilized in a LoRaWAN alarming solution for real-time indoor and outdoor tracking, as well as instant alerts. Ideal for schools, industrial sites, warehouses, hospitals, and event venues, etc. Discover more here: LoRaWAN® Badge for Indoor Positioning and Instant Safety Alerts . Feature 2: Credit card size can fit in any application At a mere 6.5mm thick, this small and slim tracker can easily slip into envelope-like spaces. T1000 fits in wide range of scenarios: Feature 3: Monitoring Beyond Location T1000 is equipped with essential features, including a temperature sensor, light sensor, motion sensor, panic button, and buzzer. The temperature sensor is ideal for monitoring temperature-sensitive goods like food, and the light sensor detects unpacking activities.
