SenseCAP Solar Node P1-Pro for Meshtastic
Technical Specifications
Verified product data organized in one table
| Product Classification | |
|---|---|
| Product Profile | Tracker / Mesh Device |
| Environment / Deployment | Outdoor |
| Primary Use Cases | Asset, personnel and outdoor tracking |
| Network & Ecosystem | |
| Supported Network / Ecosystem | Meshtastic, MeshCore, SenseCAP |
| Connectivity / Protocol | LoRa, Meshtastic, MeshCore, Bluetooth, USB, GPIO, GNSS / GPS |
| LoRaWAN Technical Specifications | |
| LoRa Chipset / Concentrator | Wio-SX1262 Module (Semtch SX1262, TXOP=22dBm@862-930MHz) |
| Antenna Type | LoRa: Type: Rod-shaped rubber antenna Frequency range: 868-915MHZ Gain: 2dbi |
| Power | |
| Power Method | Battery, Solar, USB-C |
| Input Voltage | Type-C: 5V 1A |
| Solar Support | Yes |
| Physical & Environmental | |

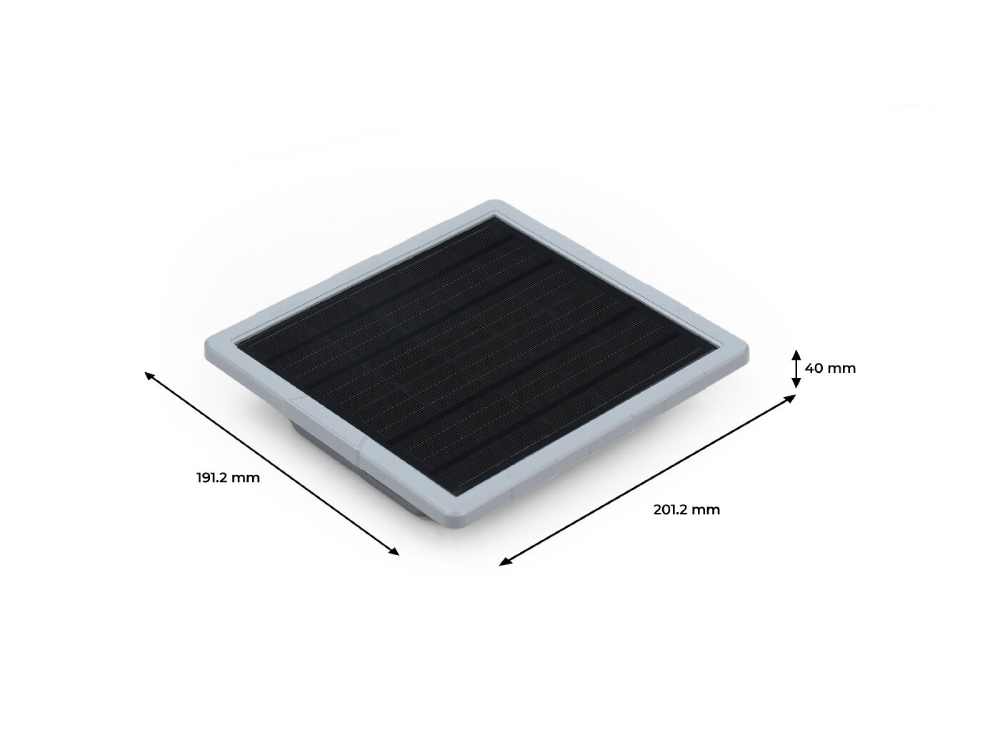

| Dimensions | 191.2 x 201.2 x 42.1 mm |
| Certifications | FCC、CE |
| Tracker / Mesh Specifications | |
| GNSS / Positioning | XIAO L76K (Support GPS/GLONASS/Galileo) |
| Tracking / Mesh Modes | Meshtastic, MeshCore, GNSS tracking |
| Detailed Technical Data | |
| 860-930MHz-3dBi-360mm | 900-930MHz-7dBi-920mm · 902-930MHz-8dBi-1300mm |
| Link | Link · Link |
| Main controller | XIAO nRF52840 Plus (Nordic nRF52840, ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz, 256KB RAM, 1MB Flash, 2MB onboard Flash) |
| LoRa Module | Wio-SX1262 Module (Semtch SX1262, TXOP=22dBm@862-930MHz) |
| GPS Module | XIAO L76K (Support GPS/GLONASS/Galileo) |
| Antenna | LoRa: Type: Rod-shaped rubber antenna Frequency range: 868-915MHZ Gain: 2dbi |

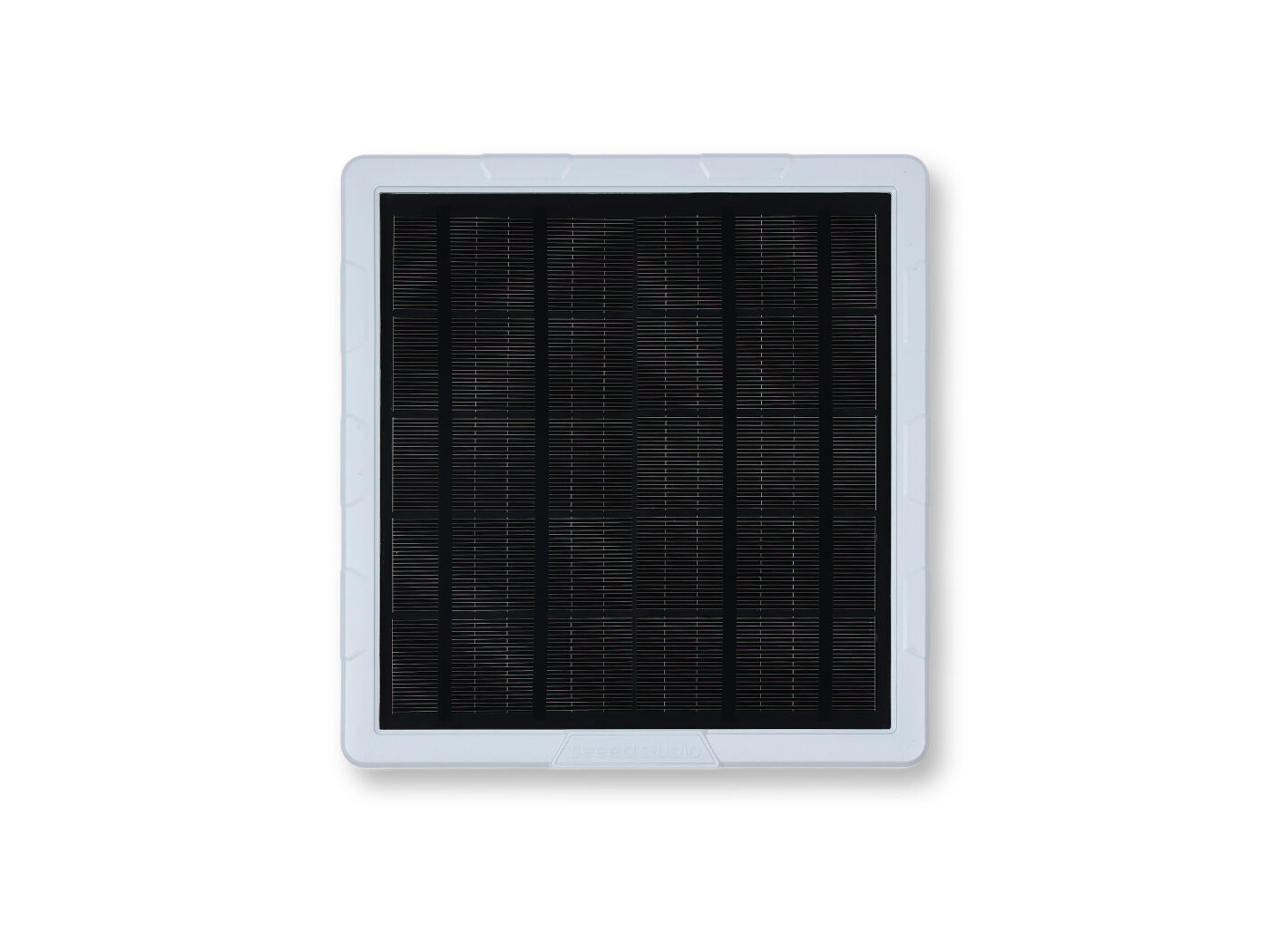

| Solar Panel | 5W |
| Interface | Grove *1: IIC/GPIO/UART |
| Button | Power on/off |

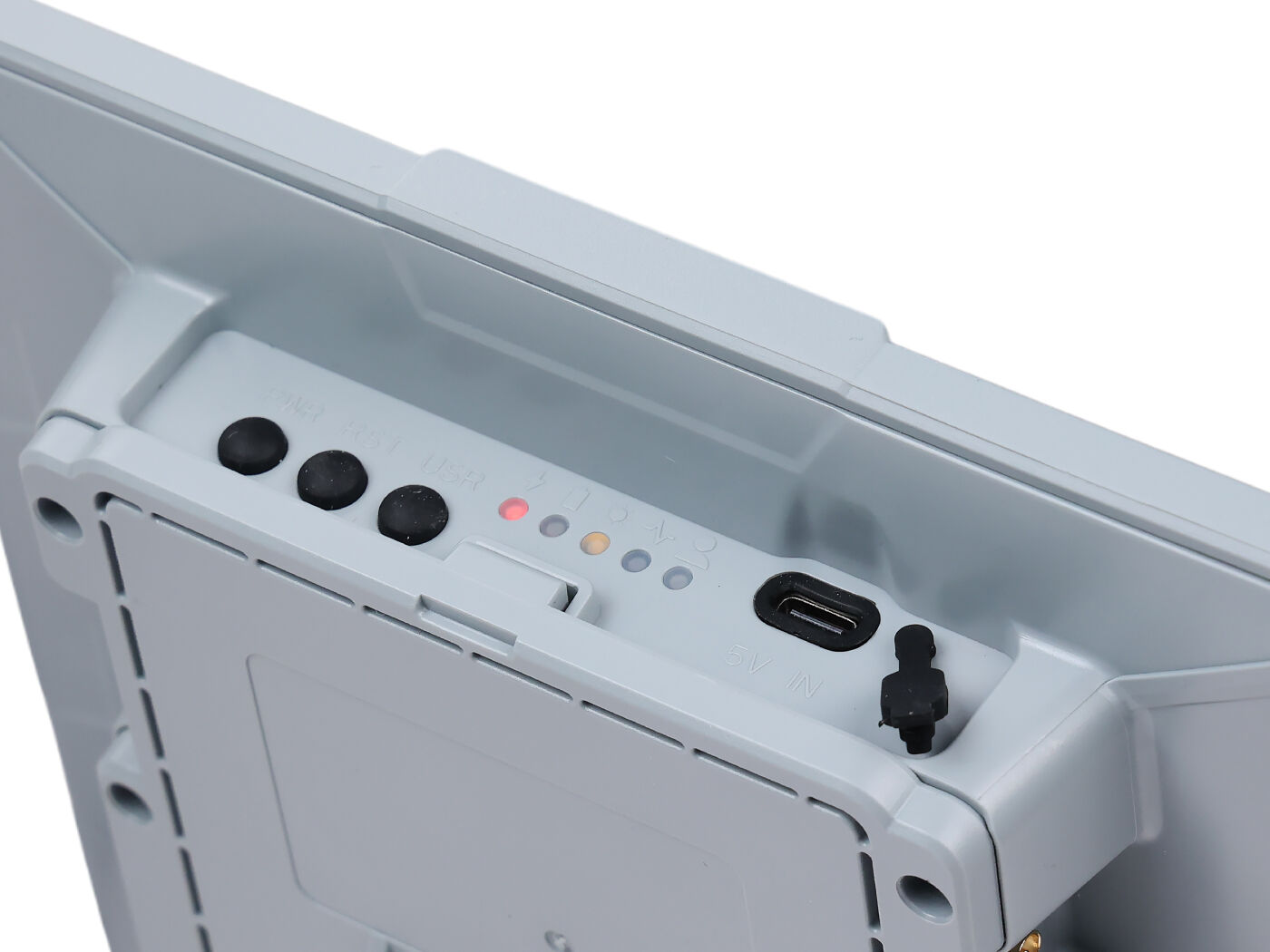

| LED | Charging status indicator lights *2 |
| Power supply | Type-C: 5V 1A |
| Battery | 4 x 18650 lithium batteries (3350mAh each) ● Supporting Type-C and solar charging. ● Discharge environment：-40 ~ 60°C ● Charging environment: 0 ~ 50°C |
| Certification | FCC、CE |
| Dimension | 191.2 x 201.2 x 42.1 mm |

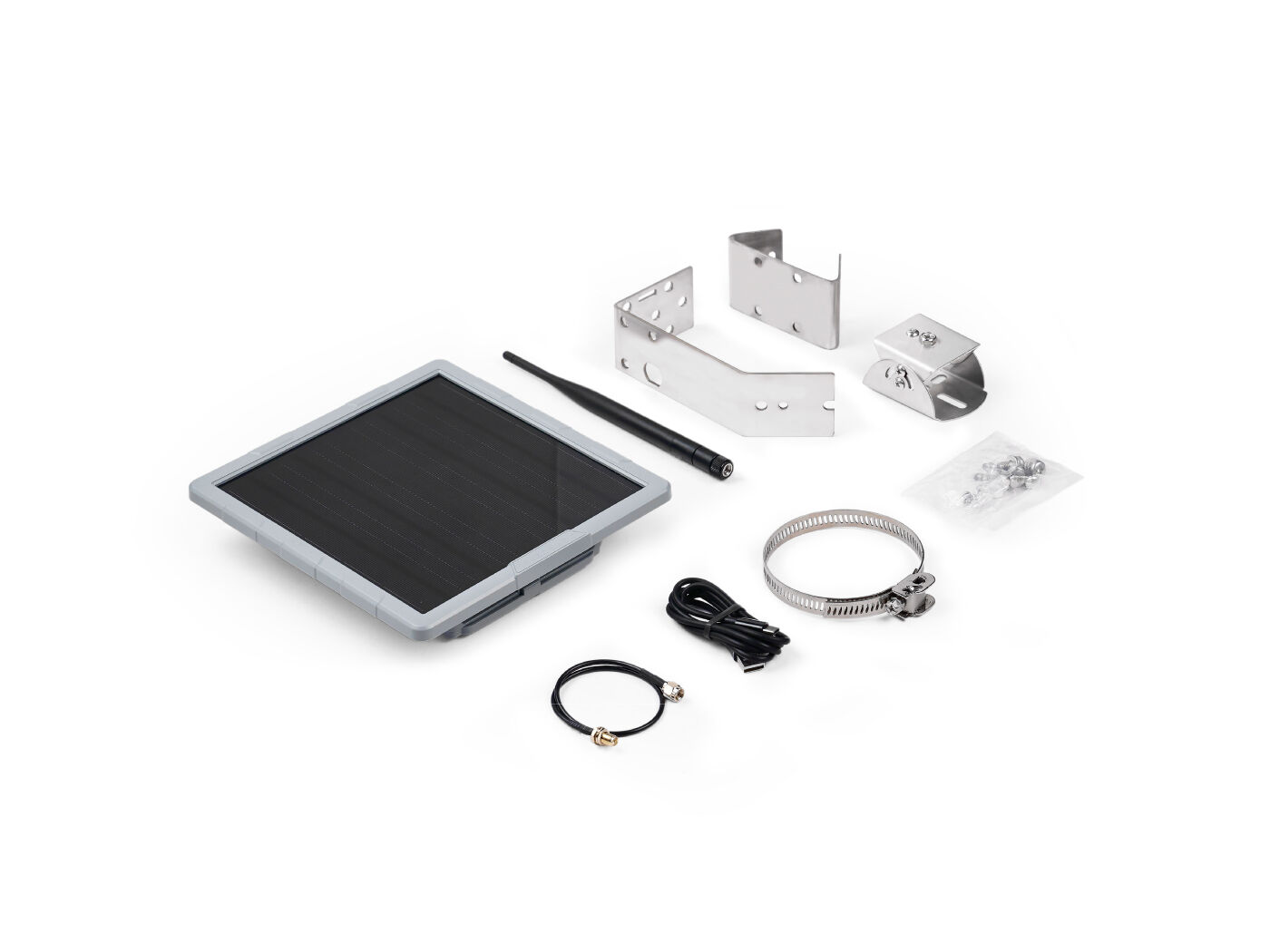

| SenseCAP Solar Node P1-Pro (with GPS & battery) | x1 |
| Mounting Brackets ● Universal Joint ● Connector ● Hoop Bracket ● Hoop Ring | x1 |
| 2dBi 868 - 915MHz Rubber Rod Antenna | x1 |
| RF Cable: RP-SMA Male to RF-SMA Female-300mm | x1 |
| 1/4-20 UNC Hex Head Machine Screw, 6 mm Long(Screw Pack) | x2 |
| Screw, Phillips Pan Head Machine, M6 × 14 mm, P1.0(Screw Pack) | x4 |
| Black Type-C Cable | x1 |
| User Manual | x1 |
| HSCODE | 8541402000 |
| USHSCODE | 8541410000 |
| EUHSCODE | 8531202090 |
| COO | CHINA |
Product Overview

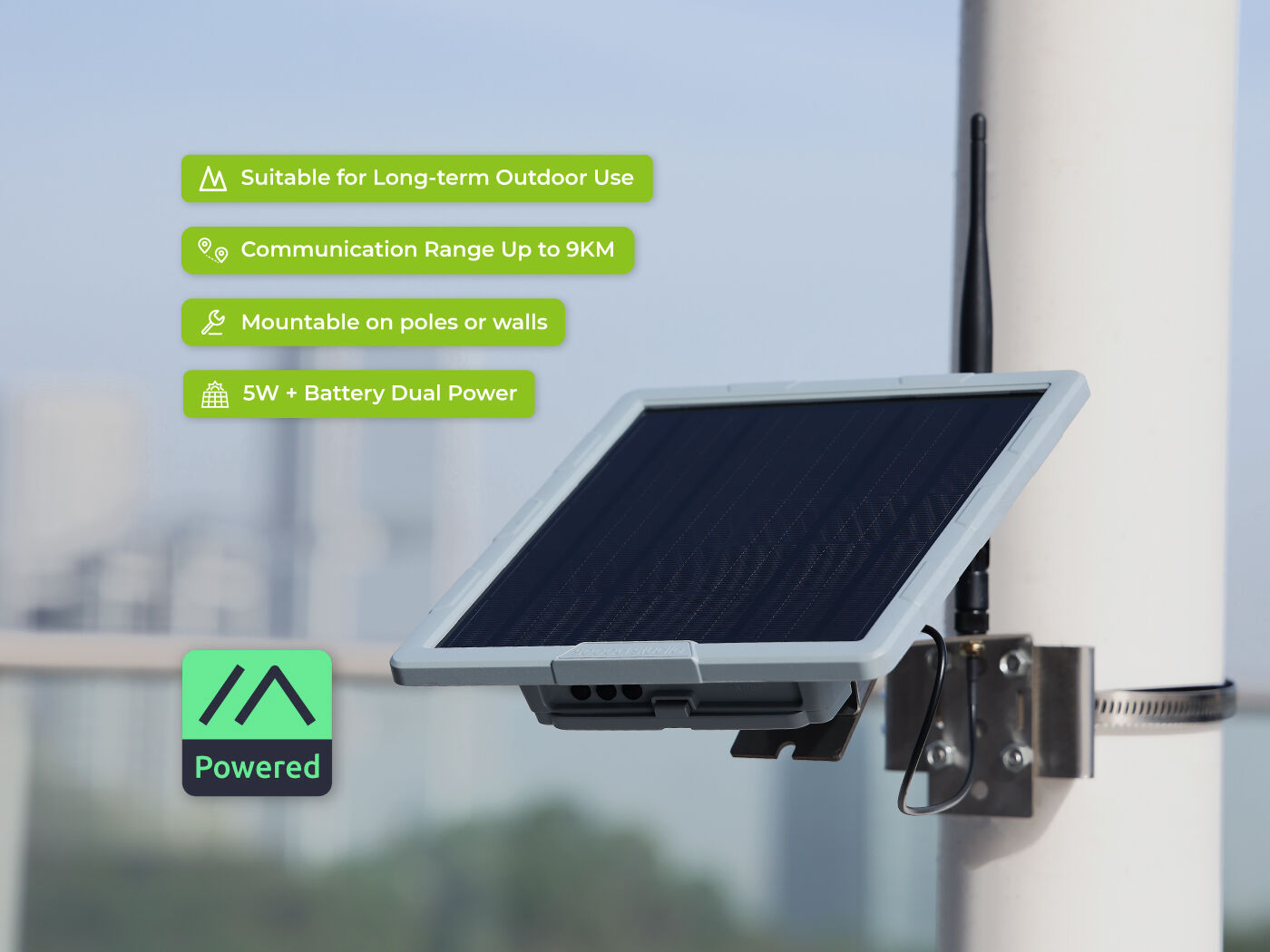

It is a solar-powered communication node that integrates the XIAO nRF52840 Plus main controller, the Wio-SX1262 LoRa module , and the XIAO L76K GPS module . It is specifically designed for areas without network coverage. With a built-in battery, it supports long-distance communication, precise positioning, and low-power operation. It's suitable for expanding network coverage in outdoor areas.

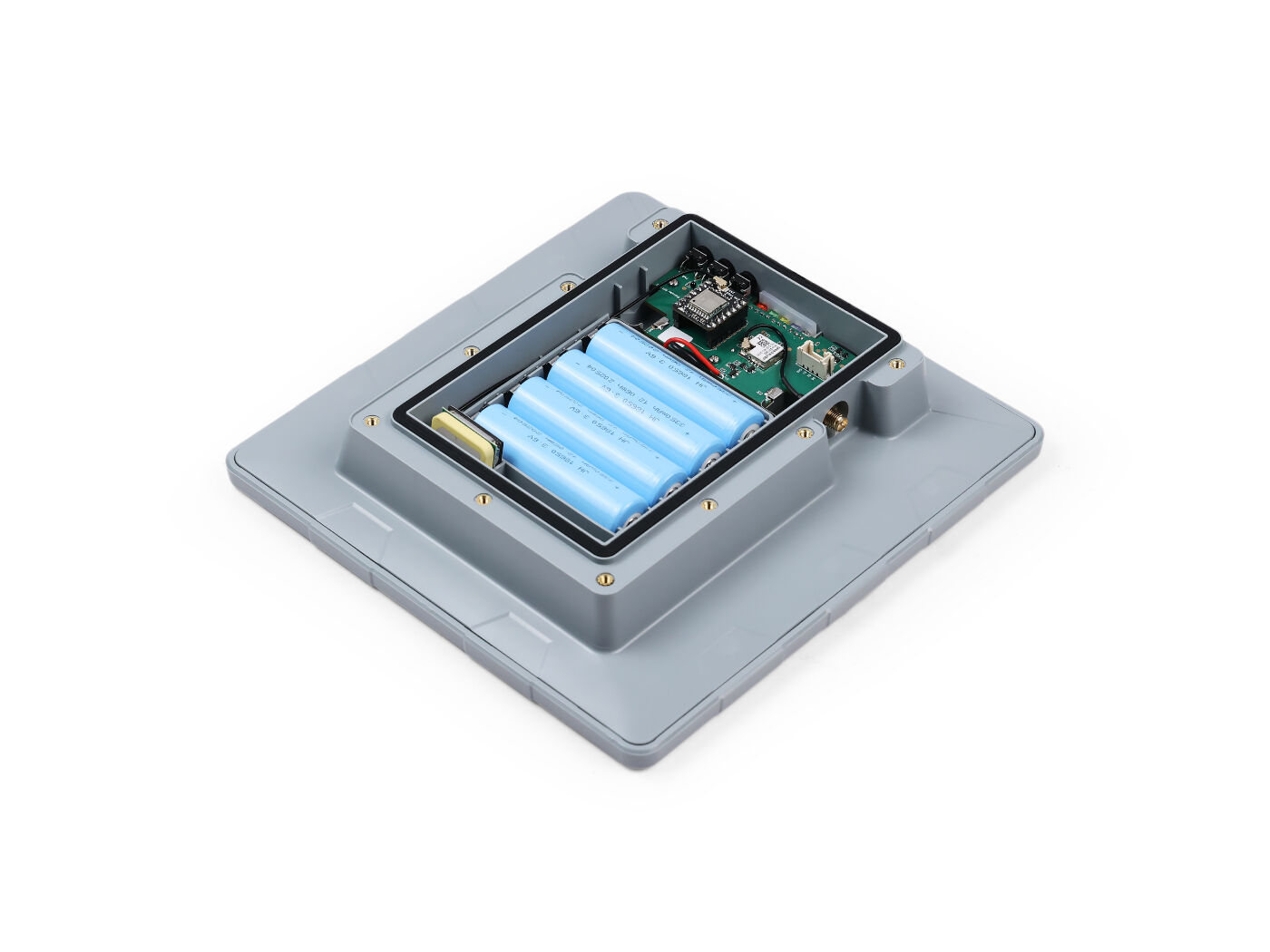

Note: The device is compatible with Meshcore . Please click here to see the tutorial. From China warehouse to the United States, choose " US Direct Group Shipping " to enjoy duty-free！ Enjoy an automatic 10% off when you purchase any two or more devices from T1000-E (SKU： 114993369 ）、Wio Tracker L1 series (SKUs: 114993648 , 114993649 , 114993653 , 114993654 ) and Solar Node series (SKUs: 114993633 , 114993643 ). The SenseCAP Solar Node P1-Pro has positioning function and four 18650 batteries. If you have your own batteries and don't need positioning, please choose the SenseCAP Solar Node P1 . To replace the battery, use Button-top 18650 battery. Click here to see the reference battery . Utilizes a 5W solar panel in combination with 4*18650 batteries with a capacity of 3350mAh each. This setup ensures continuous operation even in the absence of sunlight, effectively solving the problem of outdoor power supply. The device comes pre-flashed with Meshtastic firmware at the factory. Features a built-in XIAO L76K GPS module , enabling high-precision real-time positioning. It supports real-time sharing of location information, providing reliable location assurance for outdoor activities. Equipped with a Grove Ecosystem (The list of supported sensors is provided below.) , it is convenient to connect various sensors, such as temperature and humidity sensors.
