SenseCAP S800 8-in-1 Compact Weather Sensor
Technical Specifications
Verified product data organized in one table
| Product Classification | |
|---|---|
| Product Profile | IoT Sensor |
| Environment / Deployment | Outdoor |
| Primary Use Cases | Agriculture and environmental monitoring |
| Network & Ecosystem | |
| Supported Network / Ecosystem | SenseCAP, Private LoRaWAN |
| Connectivity / Protocol | LoRaWAN, LTE / Cellular, USB, RS485, SDI-12 |
| LoRaWAN Technical Specifications | |
| Antenna Connector | x1 |
| Power | |
| Power Method | USB-C |
| Input Voltage | 12V~24V 24V(Heating power supply) |
| Physical & Environmental | |
| IP Rating | IP66 |
| Operating Temperature | -40 °C ~ + 85 °C, 0 ~ 100%RH |
| Detailed Technical Data | |
| Parameters Measured | air temperature, relative humidity, barometric pressure, wind speed, wind direction, PM2.5, PM10 and noise |
| Protocol | RS485 (MODBUS-RTU) / SDI-12 |
| Power Supply | 12V~24V 24V(Heating power supply) |
| Cable Length | 3m |
| Operating Temperature & Humidity | -40 °C ~ + 85 °C, 0 ~ 100%RH |
| Device Weight | 2kg |
| Range | - 40 °C ~ + 85 °C |
| Accuracy | ± 0.1℃ |
| Resolution | 0.01 ℃ |
| SenseCAP ONE All-in-one Compact Weather Sensor | x1 |

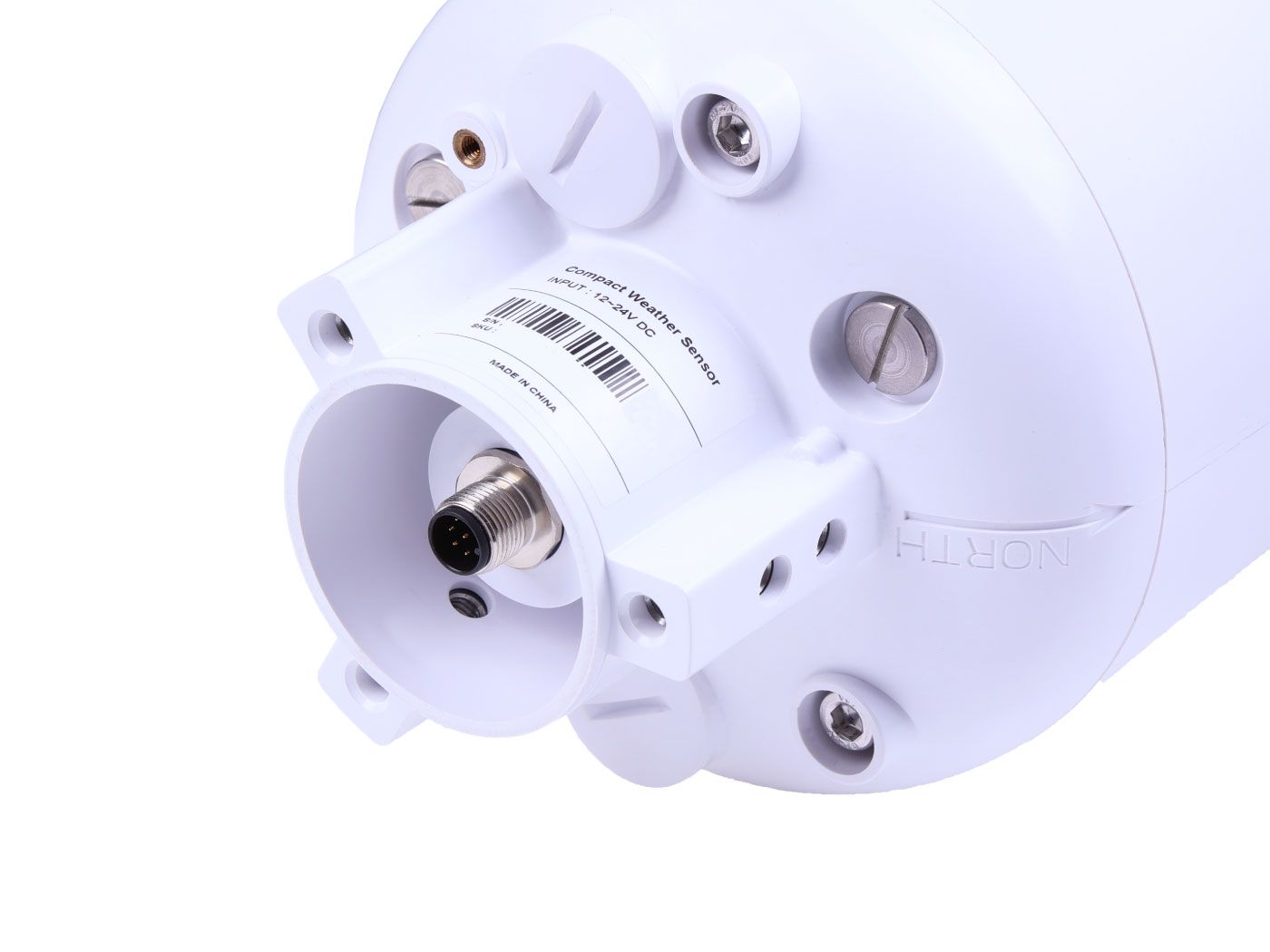

| M12 8-pin communication cable (default length 3-meter hook-up wire and there is a waterproof aviation connector type to choose from when working with SenseCAP SensorHub datalogger. If the aviation connector is not needed, cut it off by yourself) | x1 |
| USB Type-C cable, for configuring devices | x1 |
| Screw | x6 |
| Flat washer (to open the configuration port) | x1 |
| HSCODE | 9031900090 |
| USHSCODE | 9031808085 |
| EUHSCODE | 8517180000 |
| COO | CHINA |
Product Overview

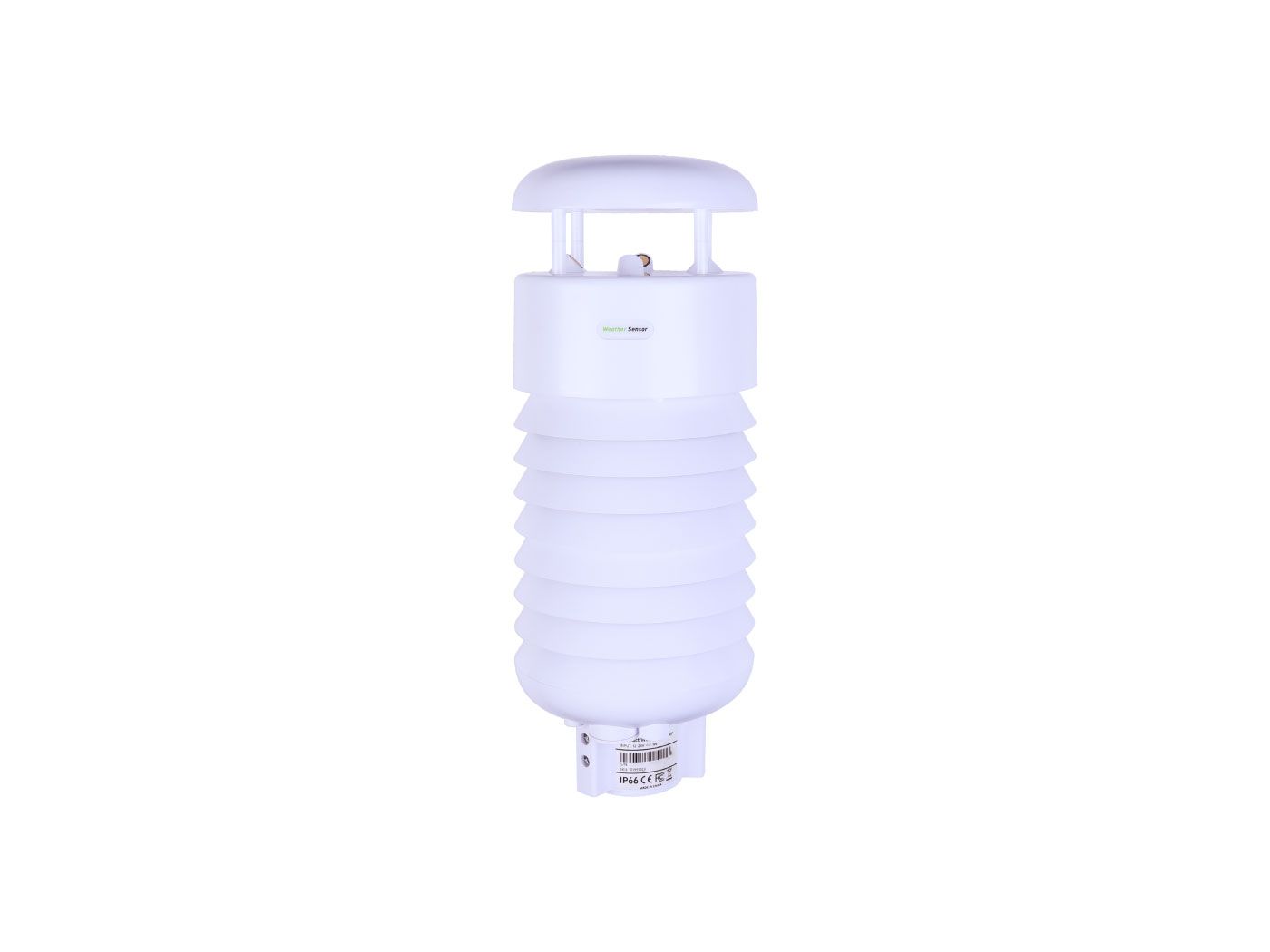

SenseCAP S800 8-in-1 Compact Weather Sensor measures air temperature, relative humidity, barometric pressure, wind speed, wind direction (ultrasonic), PM2.5, PM10, and noise. It is ideal for application in a rough environment like the outdoors, agriculture, or smart cities. Use it with SenseCAP LoRaWAN Data Logger or SenseCAP 4G Data Logger .

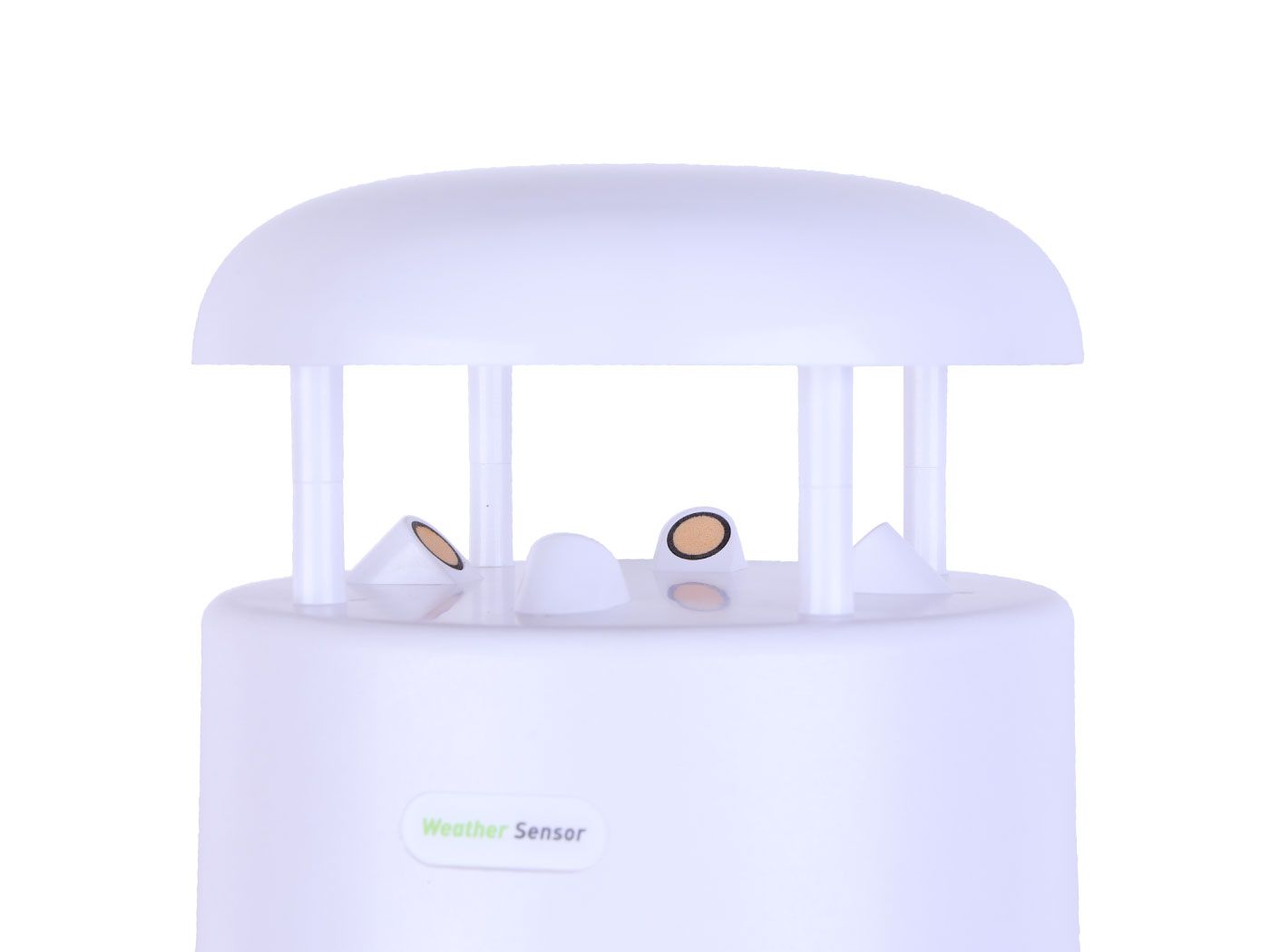

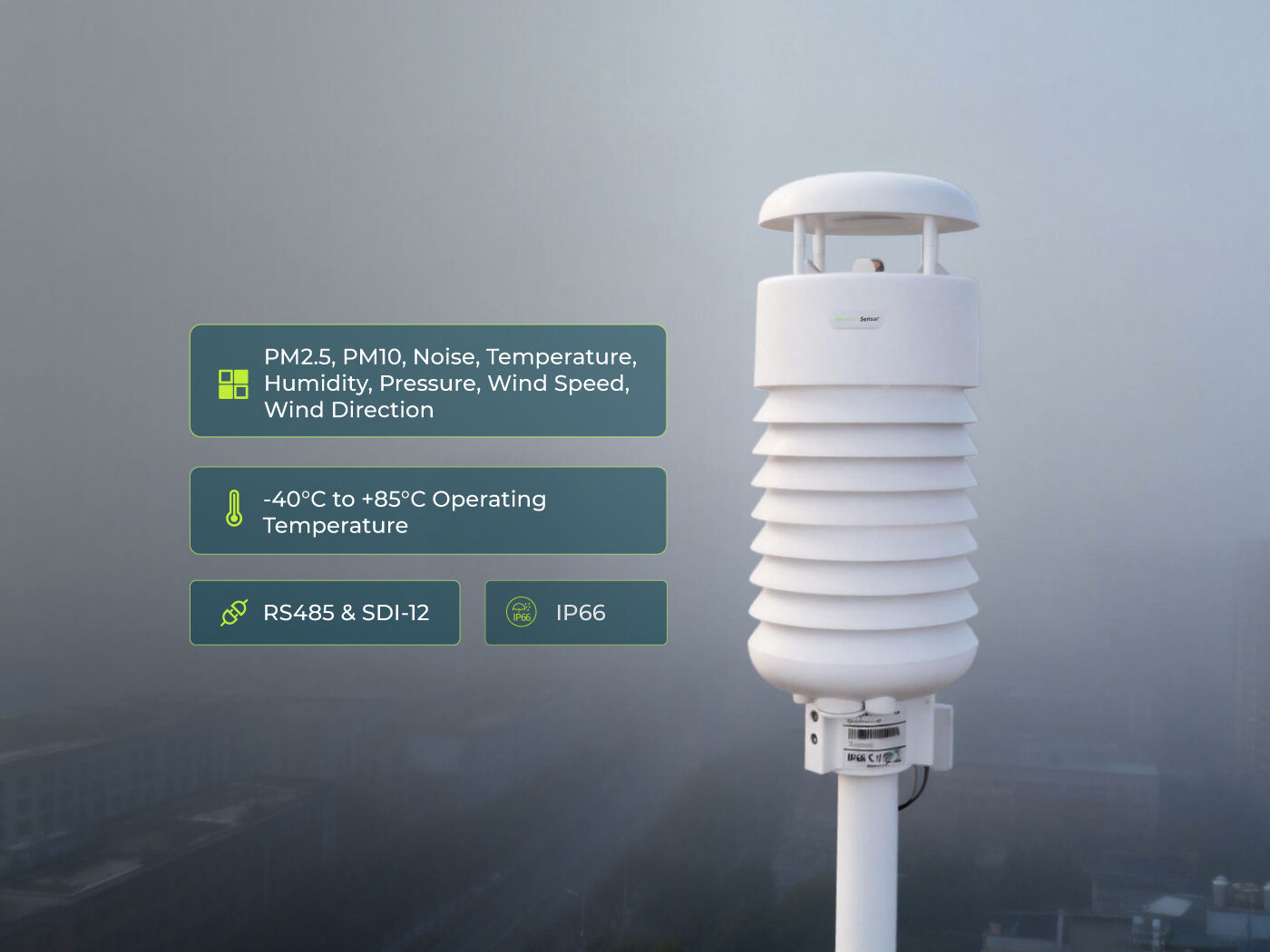

8 parameters measurement : Measures air temperature, relative humidity, barometric pressure, wind speed, wind direction, PM2.5, PM10 and noise in 1 single sensor Industrial-level design : -40°C to +85°C operating temperature, IP66 rated: waterproof, and dustproof, suitable for outdoor scenarios Output interface : RS485 (MODBUS-RTU) / SDI-12 Thermostatically-controlled heating system : Independent heating power supply for use in extremely cold environments Powerful Components Included : A 3m cable for the pole mount; radiation shields are equipped to ensure accurate ambient measurement; ultrasonic wind speed & direction sensors without moving parts High-performance Guarantee We are well aware that the sensors may work under harsh outdoor conditions. To ensure that the performance and durability of the sensors are consistent with their specifications throughout the complete lifecycle, SenseCAP ONE Serials Sensor went through 6 reliability tests before releasing and met the requirements to perform perfectly in extreme conditions. Wind tunnel for wind calibration High-Low Temperature Test – determine performance under adverse temperature conditions. Structural Test – whether the collected values of multiple devices are consistent x-y-z vibration test Waterproof and air tightness test R&D and Production Test – to test the pass rate of multiple devices under factory conditions
