IoT SensorPrivate LoRaWANOutdoor
SenseCAP S500 V2 5-in-1 Compact Weather Station
$599.00
USD
S500 5-in-1 Compact Weather Sensor measures air temperature, relative humidity, barometric pressure, wind speed, and wind direction (ultrasonic). It is ideal for application in a rough environment like outdoors, agriculture, or smart cities. Use…
ProtectionIP66
ConnectivityLoRaWAN · LTE / Cellular · +3
Secure Payment Options
Bank transfer or cryptocurrency
Bank Transfer
Cryptocurrency (Bitcoin)
365-Day Recorded Warranty
Eligibility linked to the product and serial record
Secure Approved Payments
Bank transfer or cryptocurrency
Order & Serial-Linked Support
Traceable order and after-sales assistance
Documented Measurement Specifications
Measurement range and environmental data are listed
Technical Specifications
Verified product data organized in one table
| Product Classification | |
|---|---|
| Product Profile | IoT Sensor |
| Environment / Deployment | Outdoor |
| Primary Use Cases | Agriculture and environmental monitoring |
| Network & Ecosystem | |
| Supported Network / Ecosystem | SenseCAP, Private LoRaWAN |
| Connectivity / Protocol | LoRaWAN, LTE / Cellular, USB, RS485, SDI-12 |
| LoRaWAN Technical Specifications | |
| Antenna Connector | x1 |
| Power | |
| Power Method | USB-C |
| Input Voltage | 12V~24V 24V(Heating power supply) |
| Physical & Environmental | |
| IP Rating | IP66 |
| Operating Temperature | -40 °C ~ + 85 °C, 0 ~ 100%RH |
| Detailed Technical Data | |
| Parameters Measured | air temperature, relative humidity, barometric pressure, wind speed and wind direction |
| Protocol | RS485 (MODBUS-RTU) / SDI-12 |
| Power Supply | 12V~24V 24V(Heating power supply) |
| Cable Length | 3m |
| Operating Temperature & Humidity | -40 °C ~ + 85 °C, 0 ~ 100%RH |
| Device Weight | 2kg |
| Range | - 40 °C ~ + 85 °C |
| Accuracy | ± 0.1℃ |
| Resolution | 0.01 ℃ |
| SenseCAP ONE All-in-one Compact Weather Sensor | x1 |
| M12 8-pin communication cable (default length 3-meter hook-up wire and there is a waterproof aviation connector type to choose from when working with SenseCAP SensorHub datalogger. If the aviation connector is not needed, cut it off by yourself) | x1 |
| USB Type-C cable, for configuring devices | x1 |
| Screw | x6 |
| Flat washer (to open the configuration port) | x1 |
| HSCODE | 9031900090 |
| USHSCODE | 9031808085 |
| EUHSCODE | 8517180000 |
| COO | CHINA |
Product Overview

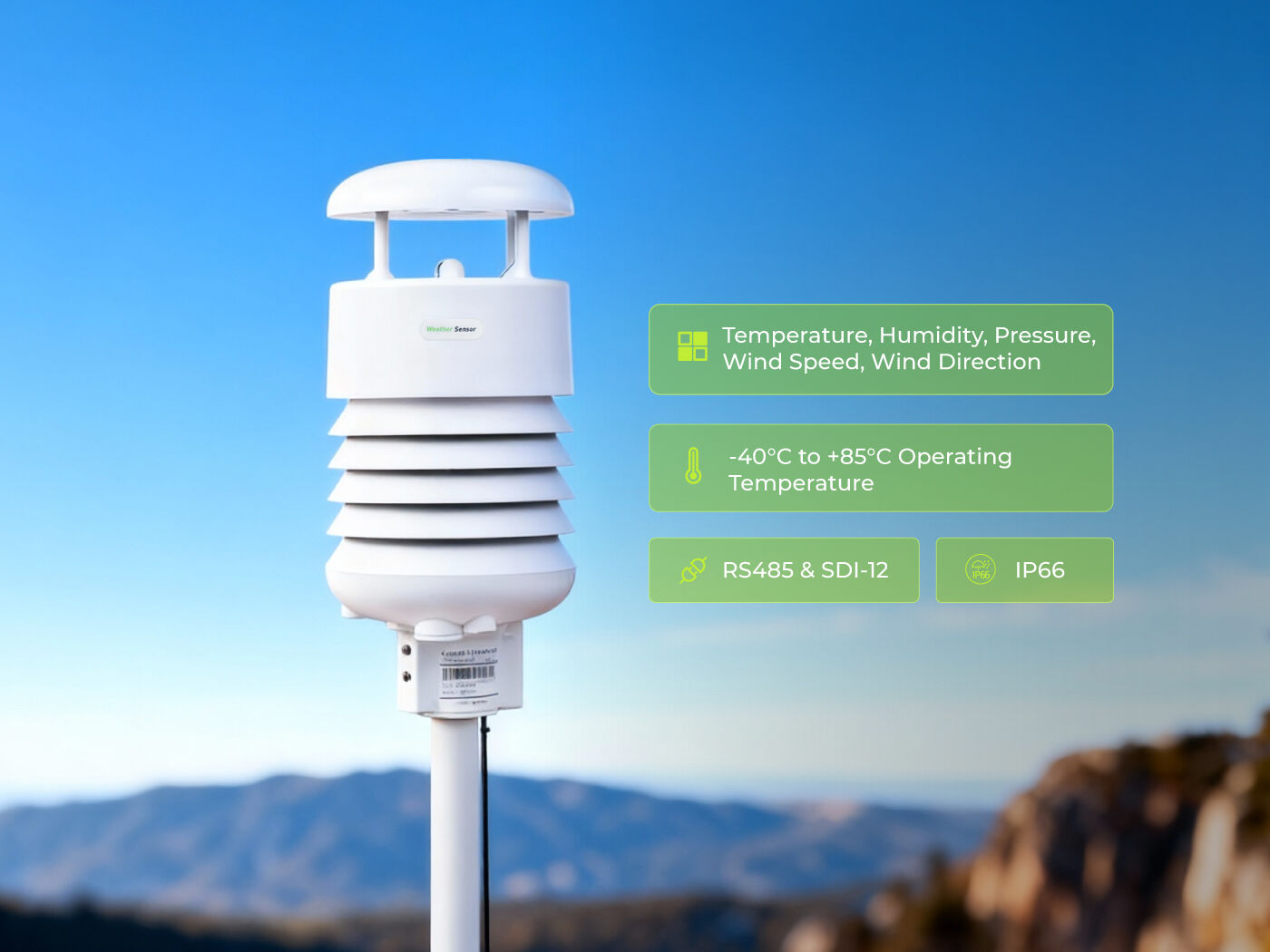

S500 5-in-1 Compact Weather Sensor measures air temperature, relative humidity, barometric pressure, wind speed, and wind direction (ultrasonic). It is ideal for application in a rough environment like outdoors, agriculture, or smart cities. Use it with SenseCAP LoRaWAN Data Logger or SenseCAP 4G Data Logger .

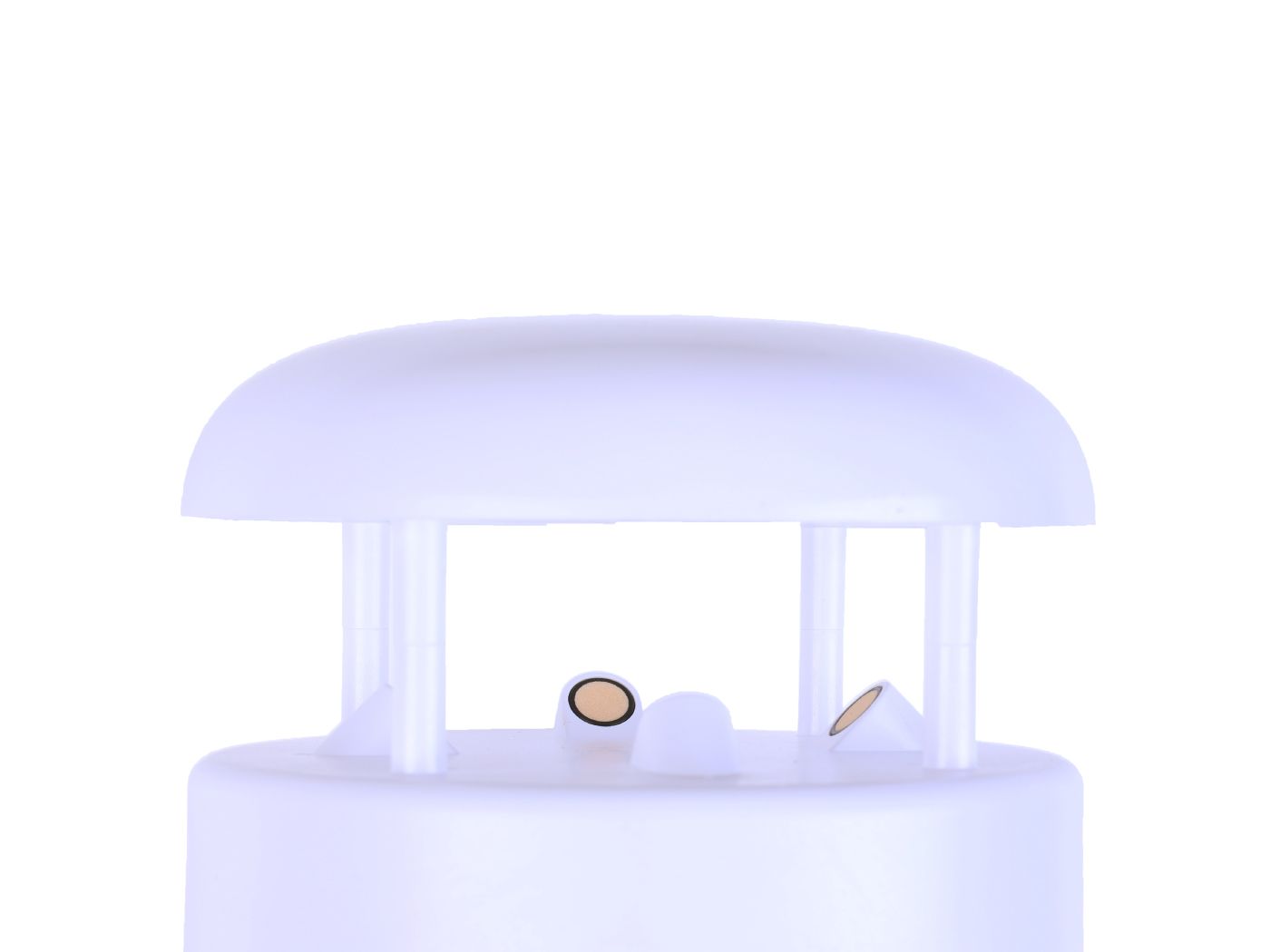

5 parameters measurement : Measures air temperature, relative humidity, barometric pressure, wind speed, and wind direction in 1 single sensor Industrial-level design : -40°C to +85°C operating temperature, IP66 rated: waterproof, and dustproof, suitable for outdoor scenarios Output interface : RS485 (MODBUS-RTU) / SDI-12 Thermostatically-controlled heating system : Independent heating power supply for use in extremely cold environments Powerful Components Included : A 3m cable for the pole mount; radiation shields are equipped to ensure accurate ambient measurement; ultrasonic wind speed & direction sensors without moving parts High-performance Guarantee Wind tunnel for wind calibration High-Low Temperature Test – determine performance under adverse temperature conditions. Structural Test – whether the collected values of multiple devices are consistent x-y-z vibration test Waterproof and air tightness test R&D and Production Test – to test the pass rate of multiple devices under factory conditions
