SenseCAP S2100 – LoRaWAN® Data Logger/DTU, Supports RS485/Analog/GPIO Interfaces, LoRaWAN Converter
Technical Specifications
Verified product data organized in one table
| Product Classification | |
|---|---|
| Product Profile | Data Logger |
| Environment / Deployment | Outdoor |
| Primary Use Cases | Weather and environmental monitoring |
| Network & Ecosystem | |
| Supported Network / Ecosystem | SenseCAP, Private LoRaWAN |
| Connectivity / Protocol | LoRaWAN, Bluetooth, RS485, Analog, GPIO |
| LoRaWAN Regional Compatibility | |
| Supported Regions | EU868, US915, AU915, AS923, IN865, KR920, RU864 |
| Frequency Range | Common Name · Sub-band |
| LoRaWAN Technical Specifications | |
| LoRaWAN Version | LoRaWAN v1.0.3 |
| LoRaWAN Class | Class A |
| LoRa Chipset / Concentrator | Wio-E5 |
| TX Power | Up to 19 dBm |
| RX Sensitivity | -136dBm@SF12 BW=125KHz |
| Communication Range | 2–10 km (depending on gateway antenna and environment) |
| Data Logger Specifications | |
| Supported Sensor Interfaces | RS485, Analog, GPIO |
| Analog Current Input | 2 × 4–20 mA |
| Analog Voltage Input | 2 × 0–10 V |
| RS485 Protocol | Modbus RTU |
| External Sensor Power | 12V DC |
| Supported Input Types | RS485 Modbus RTU, 4–20 mA Current, 0–10V Voltage, GPIO Level, GPIO Pulse |
| Power | |
| Power Method | Battery |
| Input Voltage | 12V DC (External Power) |
| Solar Support | No |
| Battery Type | Standard D-size SOCl2 Battery |
| Battery Capacity | 19Ah (non-rechargeable) |
| Battery Life | Up to 10 years** |
| Replaceable Battery | Yes |
| External Power Support | Yes |
| Physical & Environmental | |
| IP Rating | IP66 |
| Operating Temperature | -40 to +85 °C |
| Operating Humidity | 0 to 100 %RH (non-condensing) |
| Weight | 280 g |
| Certifications | CE / FCC / RoHS |
| Detailed Technical Data | |
| Current Input | 4 to 20 mA (2 channel) |
| Current Input Resolution (I1/I2) | 0 . 0 0 1 m A |
| Voltage Input | 0 to 10V (2 channel) |
| Voltage Input Resolution (V1/V2) | 0 . 0 1 m V |
| Product Model | SenseCAP S2100 |
| Microcontroller | Wio-E5 |
| Support Protocol | LoRaWAN v1.0.3 Class A |
| Built-in Bluetooth | App Tool to change parameters and set data conversion algorithm |
| Long-Range Channel Plan | IN865/EU868/US915/AU915/ AS923* |
| Max Transmitted Power | 19dBm |
| Sensitivity | -136dBm@SF12 BW=125KHz |
| Communication Distance | 2 to 10km (depending on and environment) |
| Device Weight | 280g |
| Certification | CE / FCC / RoHS |
| Frequency Plan | Common Name · Sub-band |
| EU863-870 | EU868 · ___ |
| US902-928 | US915 · Sub-band from 1 to 8 |
| AU915-928 | AU915 · Sub-band from 1 to 8 |
| AS923 | AS923 · AS923_1, AS923_2, AS923_3, AS923_4 |
| IN865-867 | IN865 · ___ |
| KR920-923 | KR920 · ___ |
| RU864-867 | RU864 · ___ |
| RS485 | SenseCAP ORCH S4-A1B |
| Analog | Water Leak Detector |
| GPIO | Water Leak Detector |
| Sensor Node | 1 |

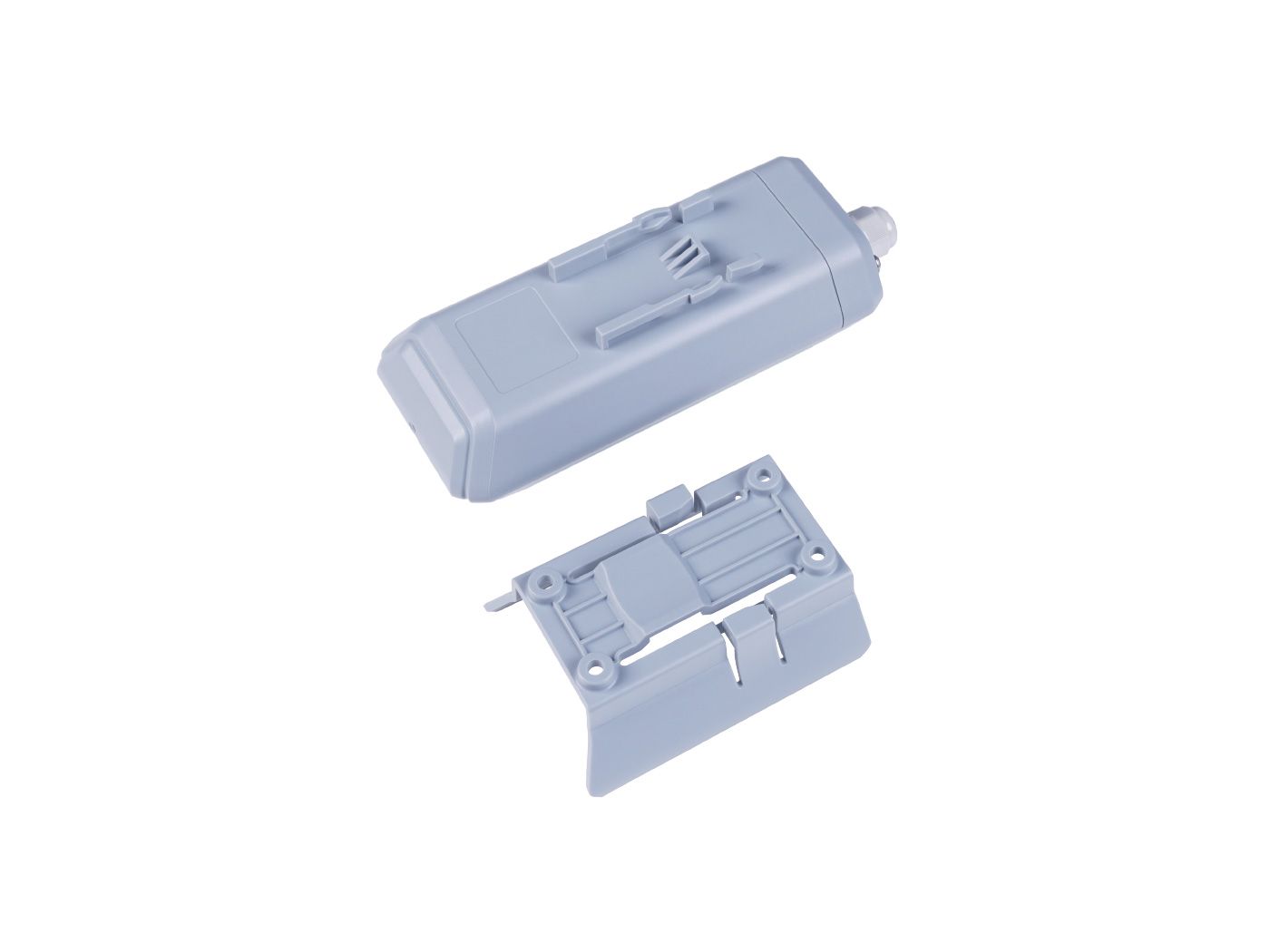

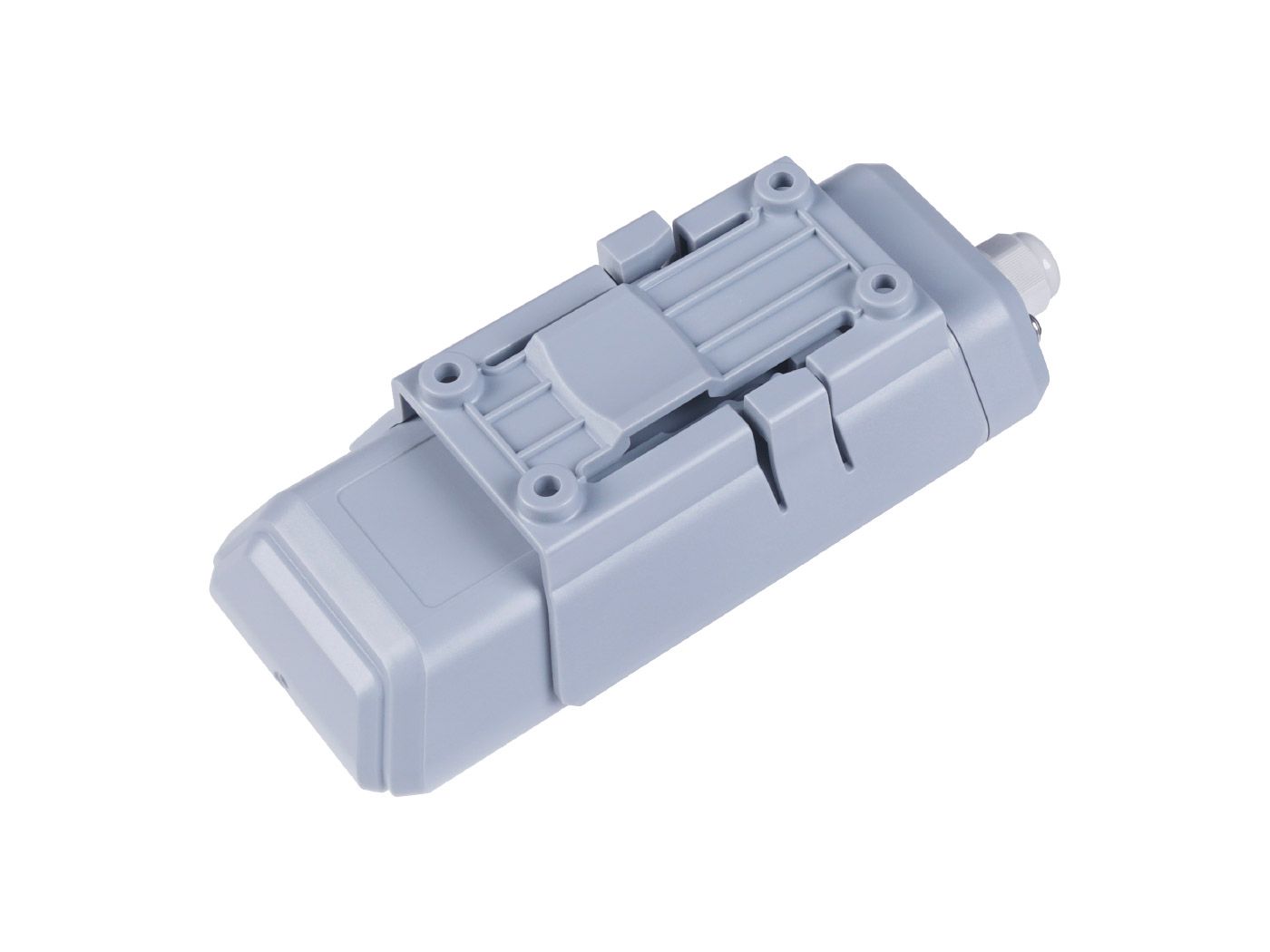

| Bracket | 2 |
| Quick Start Guide | 1 |
| KA4*20mm Self-drilling Screw | 4 |
| HSCODE | 8517691099 |
| USHSCODE | 8517180050 |
| EUHSCODE | 8517180000 |
| COO | CHINA |
Product Overview
A battery-powered IP66 wireless data logger/ DTU supports RS485/Analog/GPIO sensors, equipped with built-in Bluetooth and APP service for OTA configuration and remote device management .
Strong Compatibility with different Sensors: supports all MODBUS-RTU RS485/Analog(4~20mA/0~10V) / GPIO(level/pulse) sensors. Compatible with Worldwide LoRaWAN® Networks: Compatible with LoRaWAN® V1.0.3 protocol and can work with LoRaWAN® gateway (support the universal frequency plan from 863MHz ~928MHz). Long Range & replaceable Battery powered: With LoRaWAN® wireless transmission, S2100 supports 19Ah built-in battery and external 12V DC to supply devices, and ultra-wide-transmission range of 2km in urban scenes and 10km in line of sight scenes. Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP66 rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc. Remote configuration and management: Seeed provides SenseCAP Mate APP and SenseCAP Portal, allows users to remotely manage data and configure. High-performance Guarantee We are well aware that the sensors may work under harsh outdoor conditions. To ensure that the performance and durability of the sensors are consistent with their specifications throughout the complete lifecycle, SenseCAP S210X went through 6 reliability tests before releasing and met the requirements to perform perfectly in extreme conditions. High-Low Temperature Test – determine performance under adverse temperature conditions. Conformance Test – whether the collected values of multiple devices are consistent Waterproof Test Freezing Test Long-Range Communication Test – whether the device loses packets under long-distance transmission R&D and Production Test – to test the pass rate of multiple devices under factory conditions
