SenseCAP S200 Wind Speed and Direction Sensor
Technical Specifications
Verified product data organized in one table
| Product Classification | |
|---|---|
| Product Profile | IoT Sensor |
| Environment / Deployment | Outdoor |
| Primary Use Cases | Agriculture and environmental monitoring |
| Network & Ecosystem | |
| Supported Network / Ecosystem | SenseCAP, Private LoRaWAN |
| Connectivity / Protocol | LoRaWAN, LTE / Cellular, RS485, SDI-12 |
| Power | |
| Power Method | DC |
| Input Voltage | 12V~24V 24V(Heating power supply) |
| Physical & Environmental | |
| IP Rating | IP66 |
| Operating Temperature | -40 °C ~ + 85 °C, 0 ~ 100%RH |
| Detailed Technical Data | |
| Parameters Measured | wind speed, wind direction |
| Protocol | RS485 (MODBUS-RTU) / SDI-12 |
| Power Supply | 12V~24V 24V(Heating power supply) |
| Cable Length | 3m |
| Operating Temperature & Humidity | -40 °C ~ + 85 °C, 0 ~ 100%RH |
| Device Weight | 2kg |
| Range | 0~60 m/s standard range 0~75m/s extended range Up to 80m/s withstand range |
| Accuracy | ±0.3m/s(≤10m/s); ±3% (10m/s ~ 50m/s) ±5% (>50m/s) |
| Resolution | 0.1 m/s |
| HSCODE | 9015800090 |
| USHSCODE | 9015802000 |
| EUHSCODE | 9027109000 |
| COO | CHINA |
Product Overview

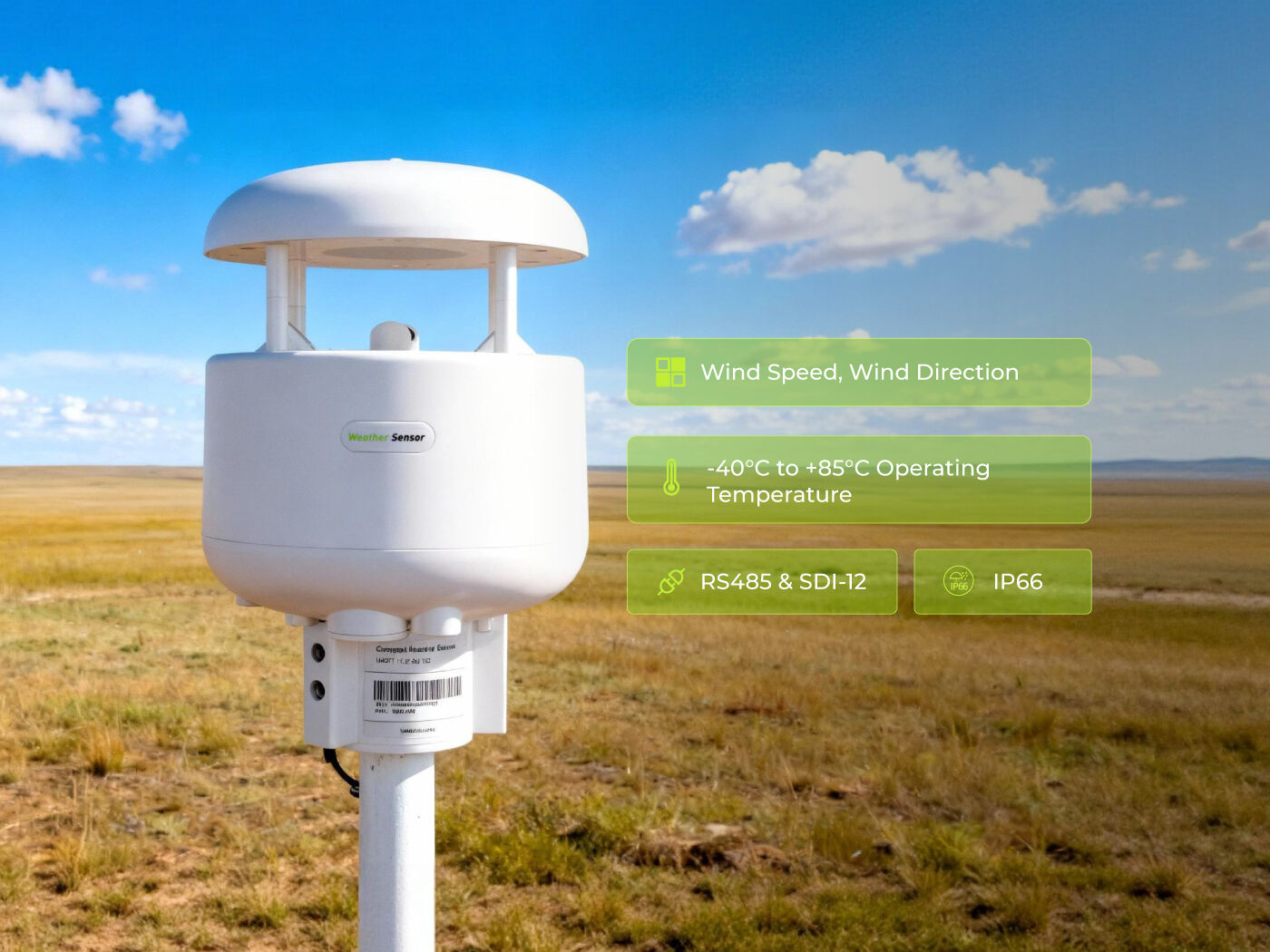

SenseCAP S 200 Weather Sensor measures wind speed and wind direction (ultrasonic) . It is ideal for application in a rough environment like the outdoors, agriculture, or smart cities. Use it with SenseCAP LoRaWAN Data Logger or SenseCAP 4G Data Logger .

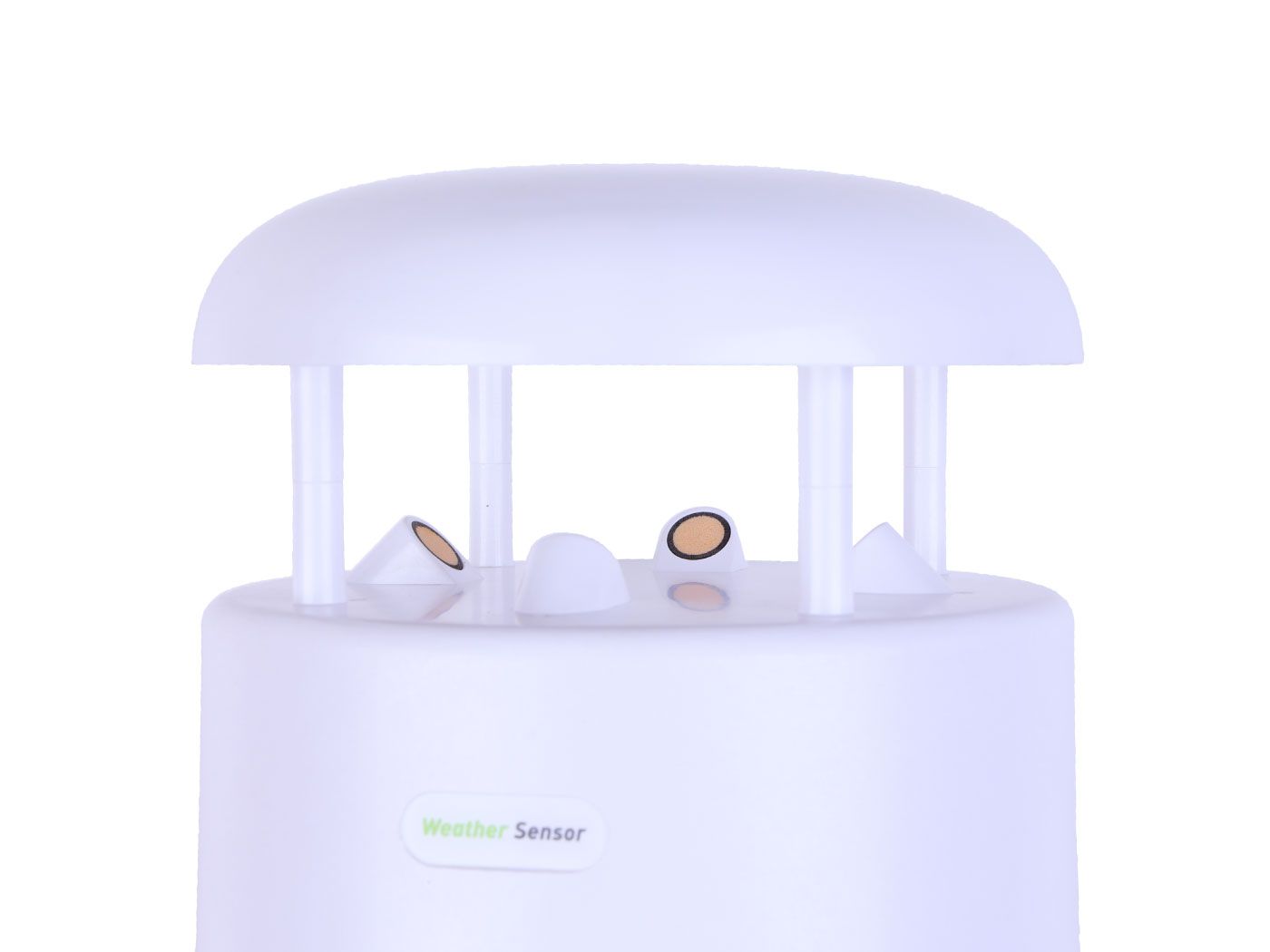

Measures wind speed and wind direction Industrial-level design : -40°C to +85°C operating temperature, IP66 rated: waterproof, and dustproof, suitable for outdoor scenarios Thermostatically-controlled heating system : Independent heating power supply for use in extremely cold environments Output interface : RS485 (MODBUS-RTU) / SDI-12 Powerful Components Included : A 3m cable for the pole mount; radiation shields are equipped to ensure accurate ambient measurement; ultrasonic wind speed & direction sensors without moving parts High-performance Guarantee We are well aware that the sensors may work under harsh outdoor conditions. To ensure that the performance and durability of the sensors are consistent with their specifications throughout the complete lifecycle, SenseCAP ONE Serials Sensor went through 6 reliability tests before releasing and met the requirements to perform perfectly in extreme conditions. Wind tunnel for wind calibration High-Low Temperature Test – determine performance under adverse temperature conditions. Structural Test – whether the collected values of multiple devices are consistent x-y-z vibration test Waterproof and air tightness test R&D and Production Test – to test the pass rate of multiple devices under factory conditions
