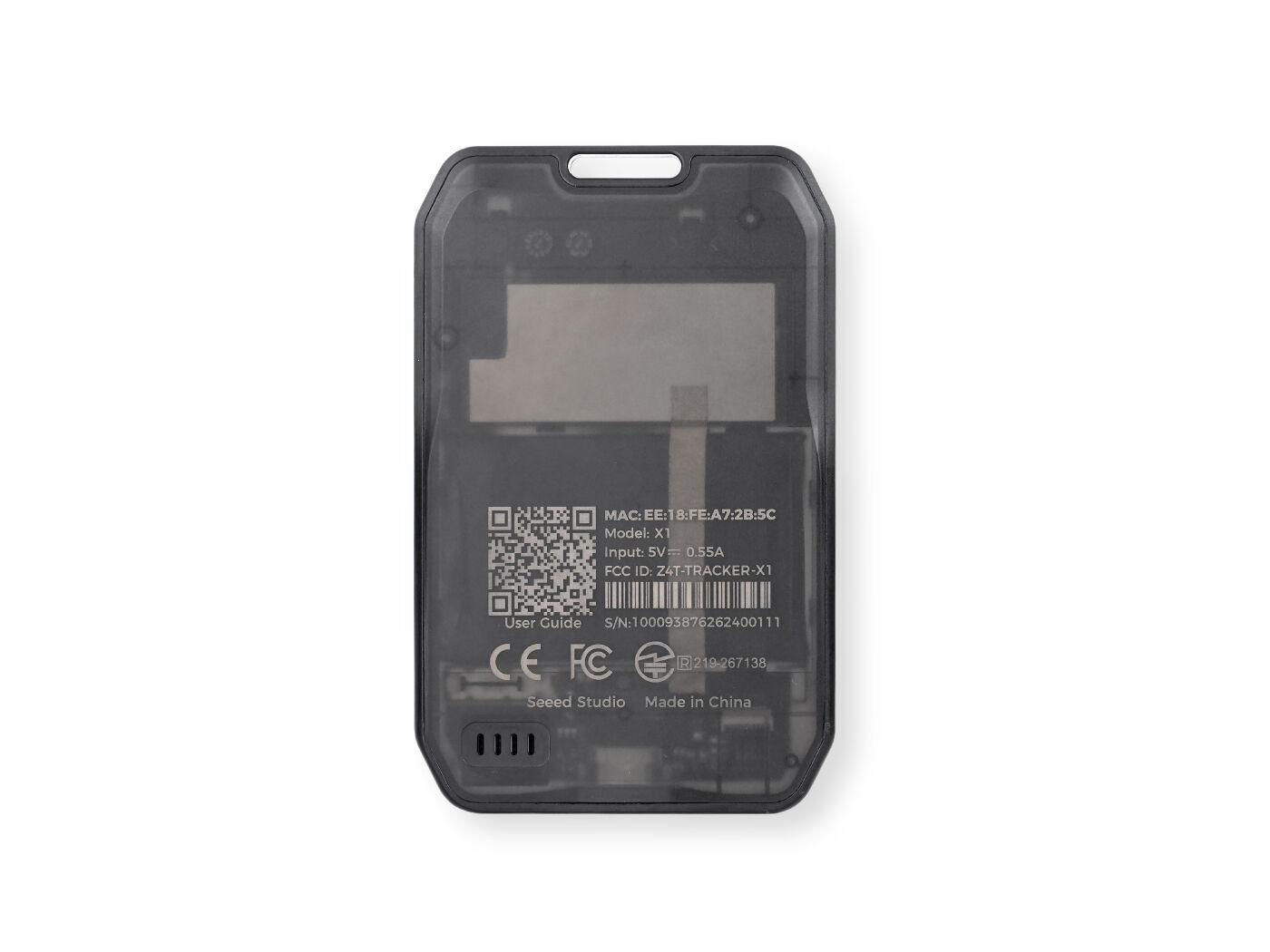

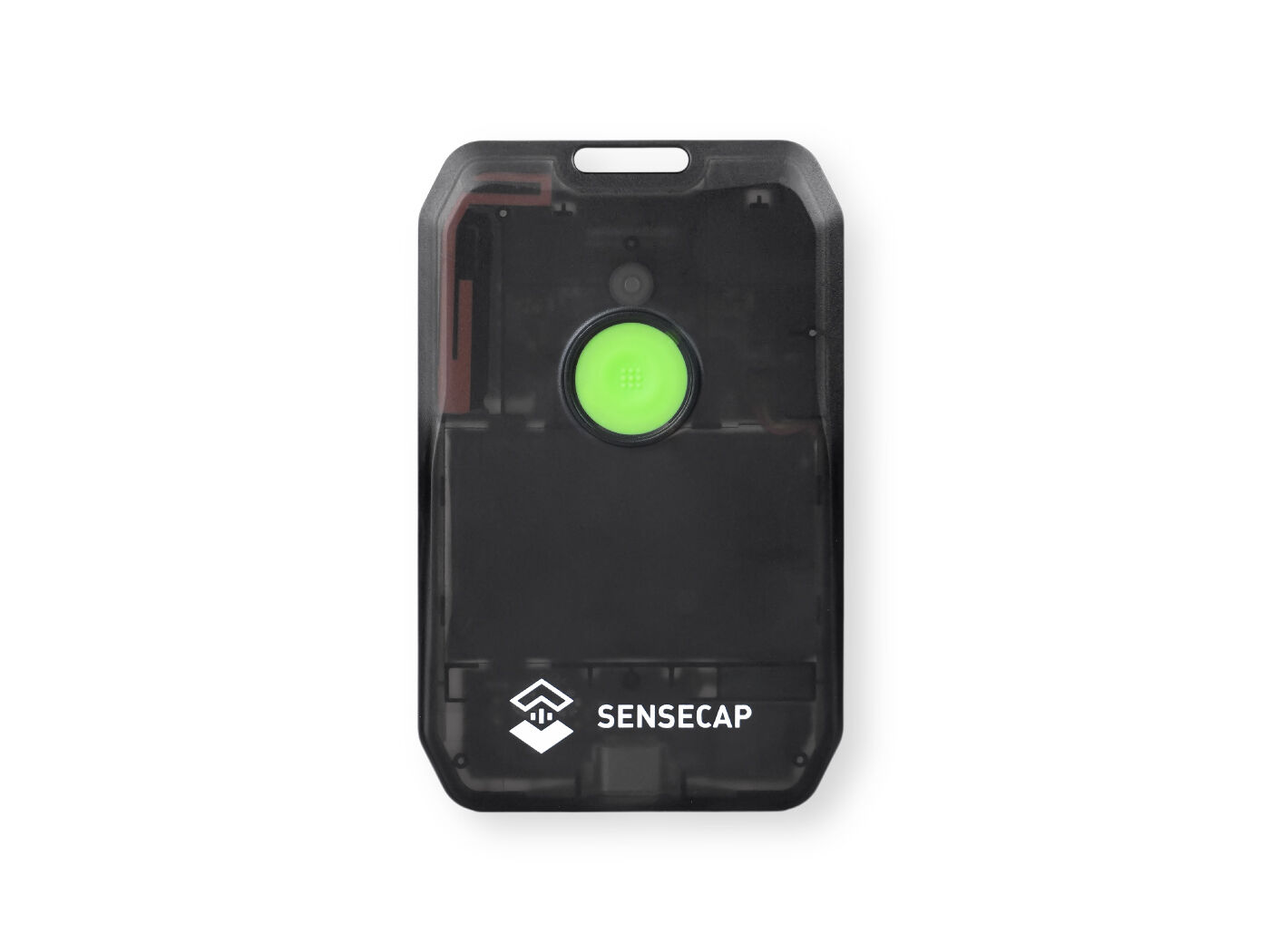

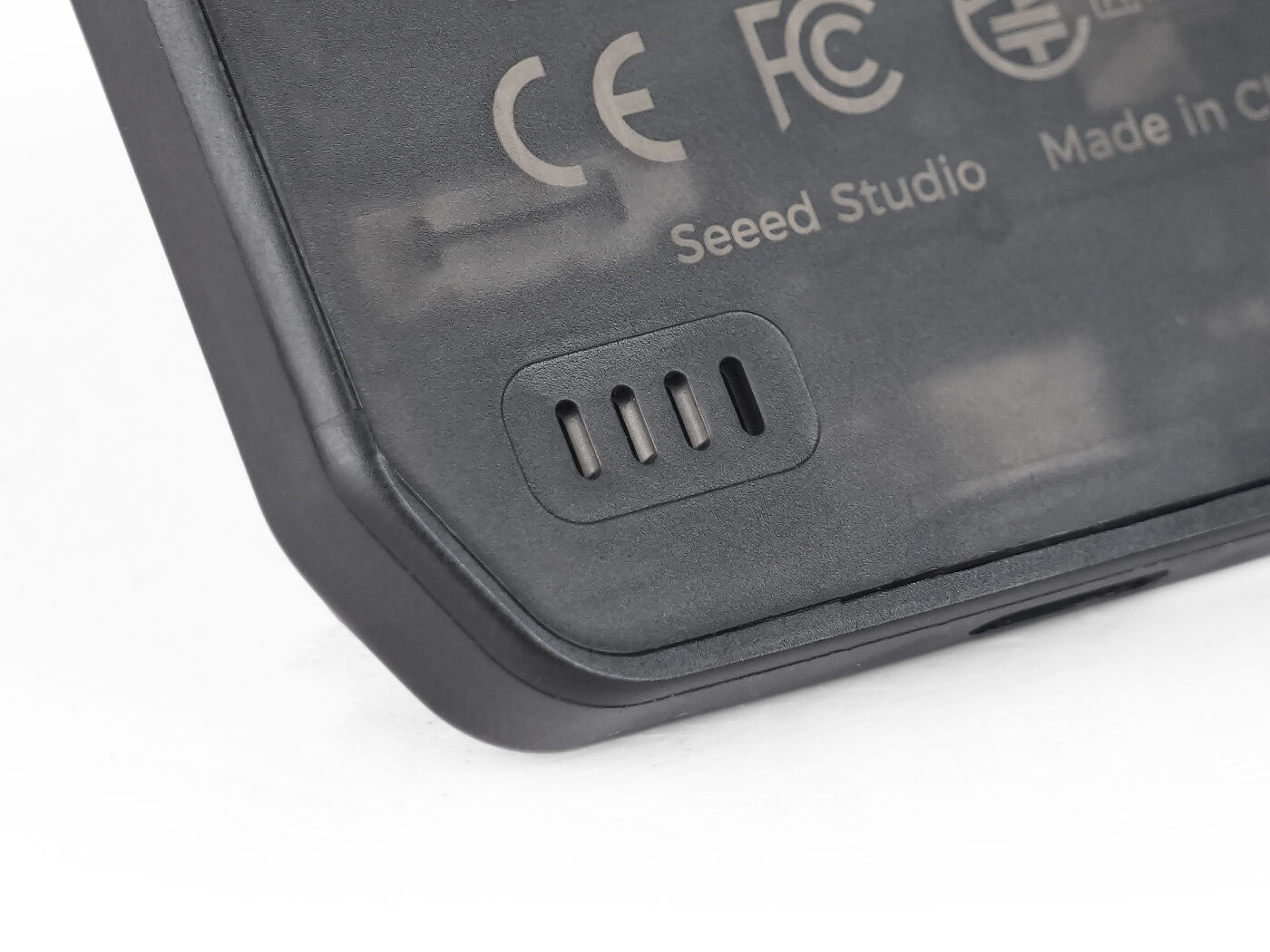

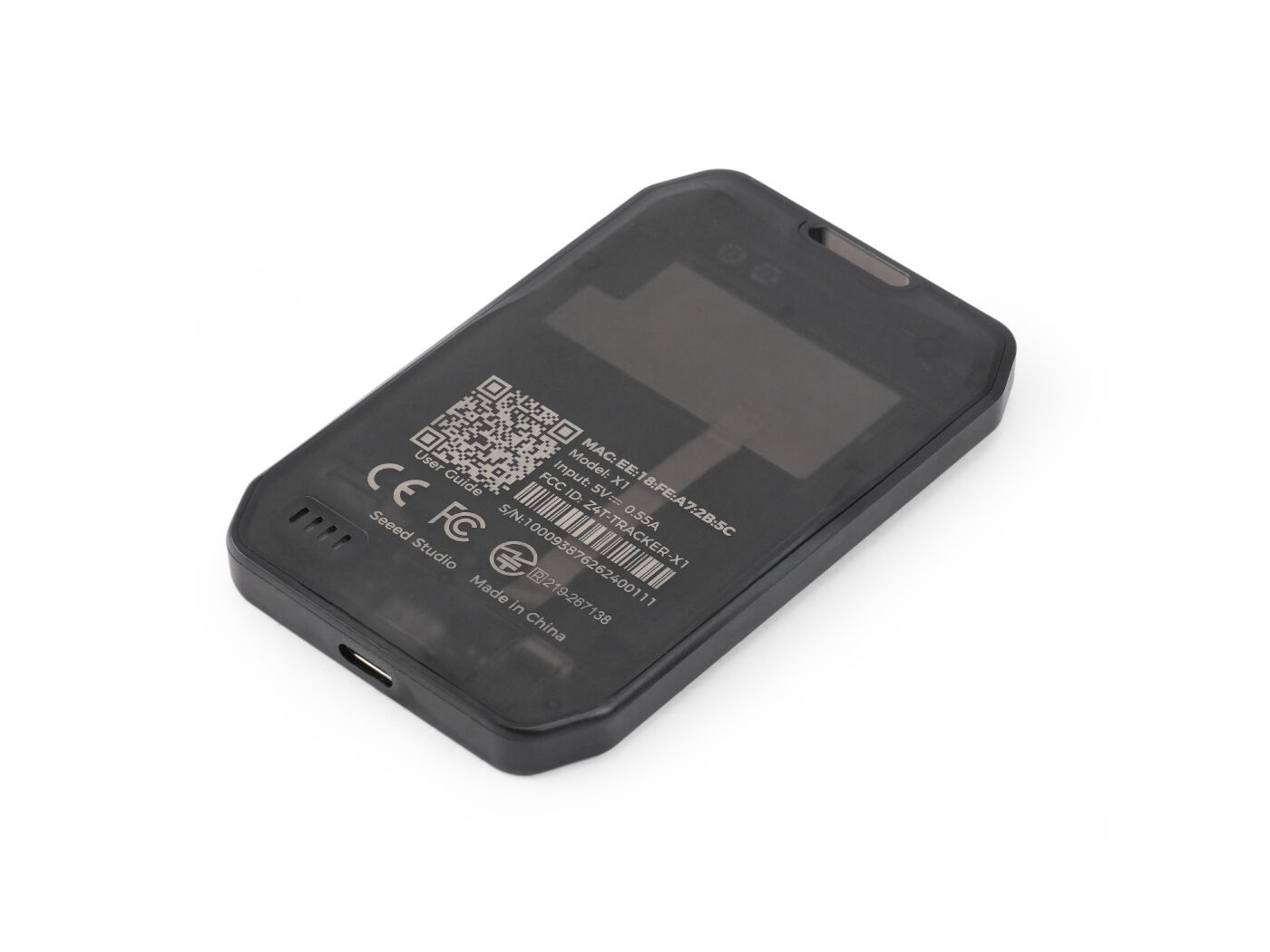

SenseCAP MeshTracker X1 for Meshtastic
Technical Specifications
Verified product data organized in one table
| Product Classification | |
|---|---|
| Product Profile | Tracker / Mesh Device |
| Environment / Deployment | Outdoor |
| Primary Use Cases | Asset, personnel and outdoor tracking |
| Network & Ecosystem | |
| Supported Network / Ecosystem | Meshtastic, SenseCAP |
| Connectivity / Protocol | LoRa, Meshtastic, Bluetooth, BLE, LTE / Cellular, USB, GNSS / GPS |
| LoRaWAN Technical Specifications | |
| Antenna Type | Internal (GNSS/863-928MHz LoRa/Bluetooth) |
| Power | |
| Power Method | Battery, USB-C |
| Battery Life | Periodic uplink battery level |
| Physical & Environmental | |
| IP Rating | [NEW] IP66 |
| Operating Temperature | −20 to 60℃ |
| Dimensions | 90 × 57 × 8 mm |
| Certifications | CE/FCC/RoHS/TELEC |
| Tracker / Mesh Specifications | |
| Tracking / Mesh Modes | Meshtastic, GNSS tracking |
| Detailed Technical Data | |
| Main Controller | Nordic nRF52840 |
| LoRa | Semtech LR2021 · Frequency Range: 863–928 MHzMAX TX Power: 22 dBm |
| Wireless | Bluetooth (v5.0) |
| LED | 1 × RGB |
| Buzzer | 1 × buzzer to indicate status |

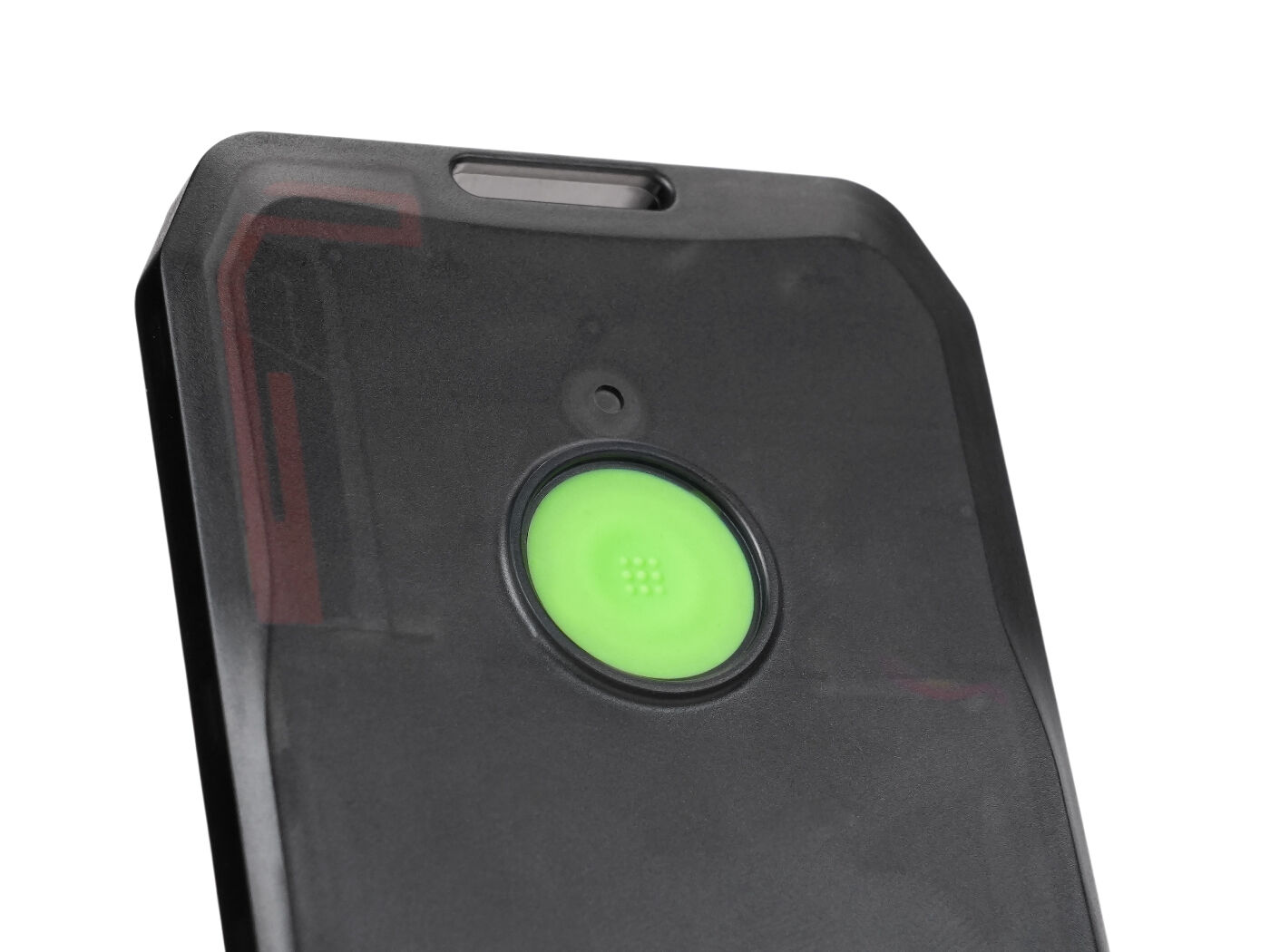

| Button | 1 × button to operate |
| Vibration | 1 × DRV2605L |
| Sensor | Air Pressure · Range: 300–1100 hPaAccuracy: ±0.06 hPaResolution: 0.06 Pa |
| Temperature (Read from barometer) | Range: −40–85°CResolution: 0.0006°C |
| IMU + Magnetometer | Not available in this modelAvailable on NEW SKU currently in development. |
| Battery | Battery Capacity · Rechargeable high-voltage battery, 1100 mAh |
| Battery Life Monitoring | Periodic uplink battery level |

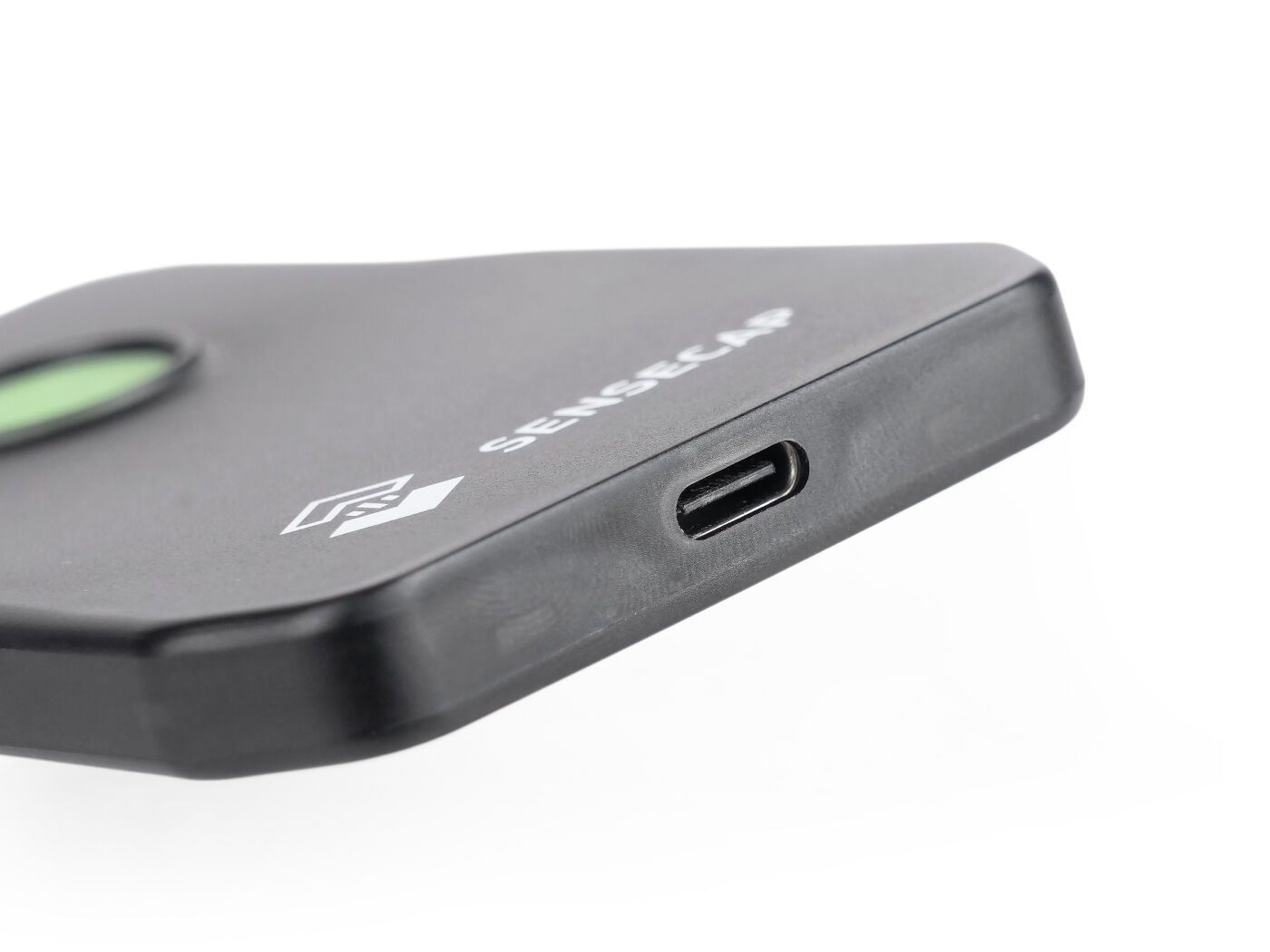

| Charging Protocol | [NEW] USB Type-C charging |
| Power Input | Device: 5 V, 0.55 ABattery: 4.4 V, 0.22A |
| Fully-charged cut-off voltage | 4.37V |
| Charging Temperature Limit | 5 to +45℃ |
| Antenna | Internal (GNSS/863-928MHz LoRa/Bluetooth) |
| Communication Distance | Up to 8 km |
| Device Weight | 45 g |
| Certification | CE/FCC/RoHS/TELEC |
| Meshtracker X1 | x1 |
| 20cm Type-C Cable | x1 |
| Leather Keychain | x1 |
| HSCODE | 8517629990 |
| USHSCODE | 8517180050 |
| EUHSCODE | 8543709099 |
| COO | CHINA |
Product Overview
The world's first card-sized Meshtastic ® device with dual-band GPS. Built for reliable off-grid communication, MeshTracker X1 is an IP66-rated Meshtastic GPS tracker supporting 863–928 MHz frequencies. Powered by the latest Semtech LR2021 LoRa chip, it features BLE 5.0, USB-C connectivity, up to 5 days of battery life, and a compact, outdoor-ready design.
A Meshtastic Device You'll Actually Carry SenseCAP MeshTracker X1 is designed for people who need reliable communication and location sharing beyond cellular networks—whether in the outdoors, at large events, or during emergency situations. With a truly portable form factor and rugged IP66 protection, it brings Meshtastic connectivity into everyday carry and real field use. Ultra-Precise Dual-Band GPS Tracking Powered by dual-band L1+L5 GNSS and a built-in barometer, MeshTracker X1 delivers more reliable positioning and altitude awareness than single-band GPS. It is also the world's first card-sized Meshtastic device with dual-band GPS. Reliable Long-Range Communication Tested at 915 MHz, MeshTracker X1 enables reliable communication over distances of up to 8 km in open line-of-sight conditions , keeping teams connected during outdoor adventures, events, and emergency situations. Next-Generation LoRa Connectivity (LR2021) Powered by Semtech LR2021, MeshTracker X1 delivers stronger RF performance with up to -141 dBm sensitivity and 2.6 Mbps FLRC data rates for faster, more reliable mesh communication, creating a foundation for future features like voice and image transmission. Card-Sized Design, Easy to Carry Slim and lightweight, MeshTracker X1 is designed for everyday carry during outdoor adventures. Wear it on a lanyard, attach it to a backpack, secure it to a bike bag, or simply slip it into your pocket for effortless off-grid connectivity. Flexible Vibration & Sound Alerts MeshTracker X1 provides flexible notification options with built-in vibration and buzzer feedback. Stay aware of incoming messages whether you're in a noisy event, riding outdoors, or exploring quiet trails where you prefer minimal distractions. IP66 Rugged Outdoor Protection Built with IP66-rated protection against dust and water, ensuring reliable performance in harsh outdoor environments such as rain, mud, and dusty trails. USB-C Connectivity Standard USB-C interface for charging, firmware updates, and debugging, designed for rugged outdoor use and everyday convenience.
