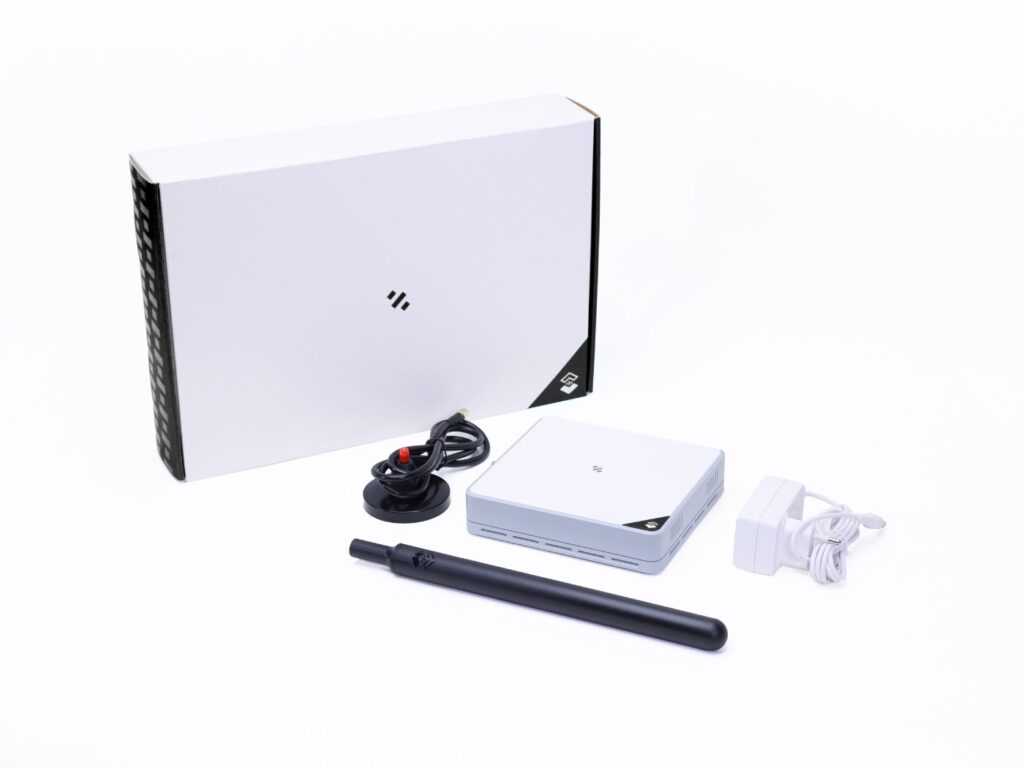

SenseCAP M2 Data Only LoRaWAN Indoor Gateway(SX1302) – US915
Technical Specifications
Verified product data organized in one table
| Product Classification | |
|---|---|
| Product Profile | LoRaWAN Gateway |
| Environment / Deployment | Indoor |
| Primary Use Cases | Helium IoT, LoRaWAN Network, IoT Deployments |
| Network & Ecosystem | |
| Supported Network / Ecosystem | Helium |
| Connectivity / Protocol | LoRaWAN, Wi-Fi, Ethernet, Bluetooth, BLE |
| LoRaWAN Regional Compatibility | |
| Supported Regions | US915 |
| Frequency Range | 902–928 MHz |
| LoRaWAN Technical Specifications | |
| LoRaWAN Version | LoRaWAN compatible |
| LoRaWAN Class | Class A, Class C |
| LoRa Chipset / Concentrator | Semtech SX1302 |
| TX Power | Up to 26 dBm |
| RX Sensitivity | -125 dBm @ 125 kHz/SF7; -139 dBm @ 125 kHz/SF12 |
| Communication Range | Miles of LoRaWAN coverage |
| Antenna Type | LoRa: 3 dBi external antenna with base; Wi-Fi: internal; BLE: ceramic |
| Antenna Gain | 3 dBi |
| Antenna Impedance | 50 Ohm |

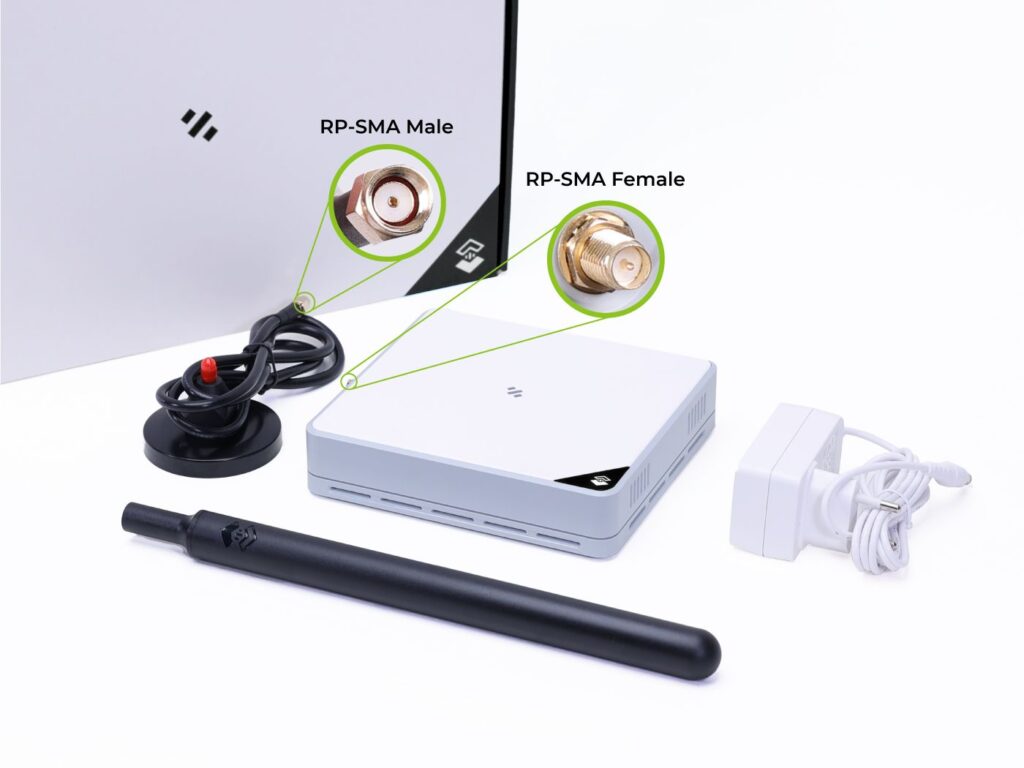

| Antenna Connector | RP-SMA Female |
| Gateway Specifications | |
| Gateway Type | Data-Only Gateway |
| Processor | MediaTek MT7628 (MIPS24KEc @ 580MHz) |
| RAM | DDR2 128MB |
| Storage | 32MB Flash |
| Wi-Fi | 2.4 GHz 802.11 b/g/n |
| Bluetooth | Bluetooth V2.1 + EDR and V5.2 |
| Ethernet | RJ45 10/100 Mbps |
| GPS | No |
| PoE Support | Yes |
| DC Input | DC 12V / 2A |
| Backhaul | Wi-Fi, Ethernet |
| Built-in Network Server | No |
| Management Platform | SenseCAP Hotspot Dashboard, SenseCAP Local Console, SenseCAP Hotspot App |
| Interfaces | Ethernet RJ45 ×1, RP-SMA Female Antenna Connector ×1, MicroSD Card Slot ×1 (Future Use), USB Type-C Console ×1 |
| Power | |
| Power Method | DC, PoE |
| Input Voltage | DC 12V / 2A; PoE IEEE 802.3af, 40–57V DC |
| Solar Support | No |
| Replaceable Battery | No |
| External Power Support | No |
| Physical & Environmental | |
| Operating Temperature | -20°C to 55°C |
| Operating Humidity | 0%–85% RH (non-condensing) |

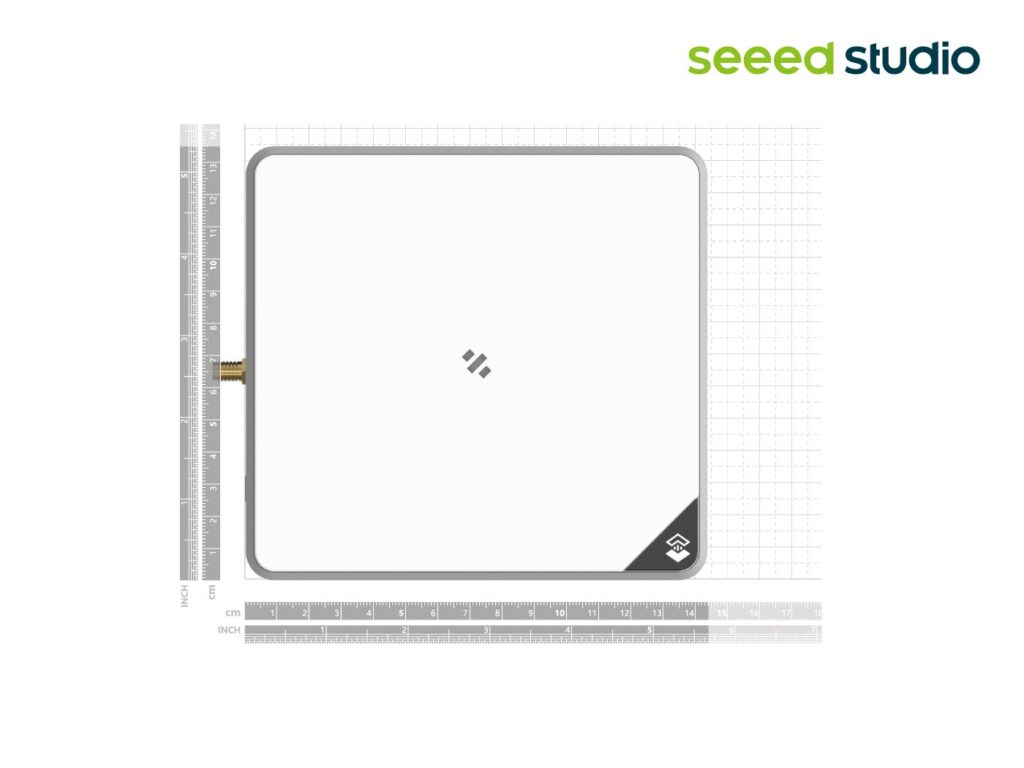

| Dimensions | 143.6 × 135 × 34 mm (connector excluded); 150.6 × 135 × 34 mm (connector included) |
| Certifications | FCC |
Product Overview
What is SenseCAP M2 Data Only
SenseCAP M2 Data Only is a LoRaWAN Gateway connected to the Helium LongFi Network.
As a LoRaWAN gateway, it could be able to provide miles of wireless network coverage and data transmission capacity for LoRa/LoRaWAN devices.
As a gateway supporting the Helium LongFi network, it could help you build the local LoRaWAN network and develop various LoRaWAN applications at low cost while enjoying the benefits of being a part of the People’s Network.
SenseCAP M2 is now providing US915 and EU868 versions with FCC and CE certificates. And it will have more frequency band versions and corresponding certificates available for different countries and regions in the near future.
Excellent and Stable Performance
SenseCAP M2 is powered by the mature hardware solution MT7628 and Semtech SX1302/SX1303 baseband LoRa chip. It has built-in BLE and supports both Wi-Fi and Ethernet internet connection. For users who need to power the gateway on Ethernet instead of an extra power supply cable, the PoE feature is also added in M2.
Wide-range Coverage and Strong Signal
With a 3dBi High-Performance Antenna, SenseCAP M2 could provide Miles of LoRaWAN coverage and a strong signal. And you could always upgrade the antenna to fit your usage scenario based on different environments.
Professional Management Tools and Cloud Services

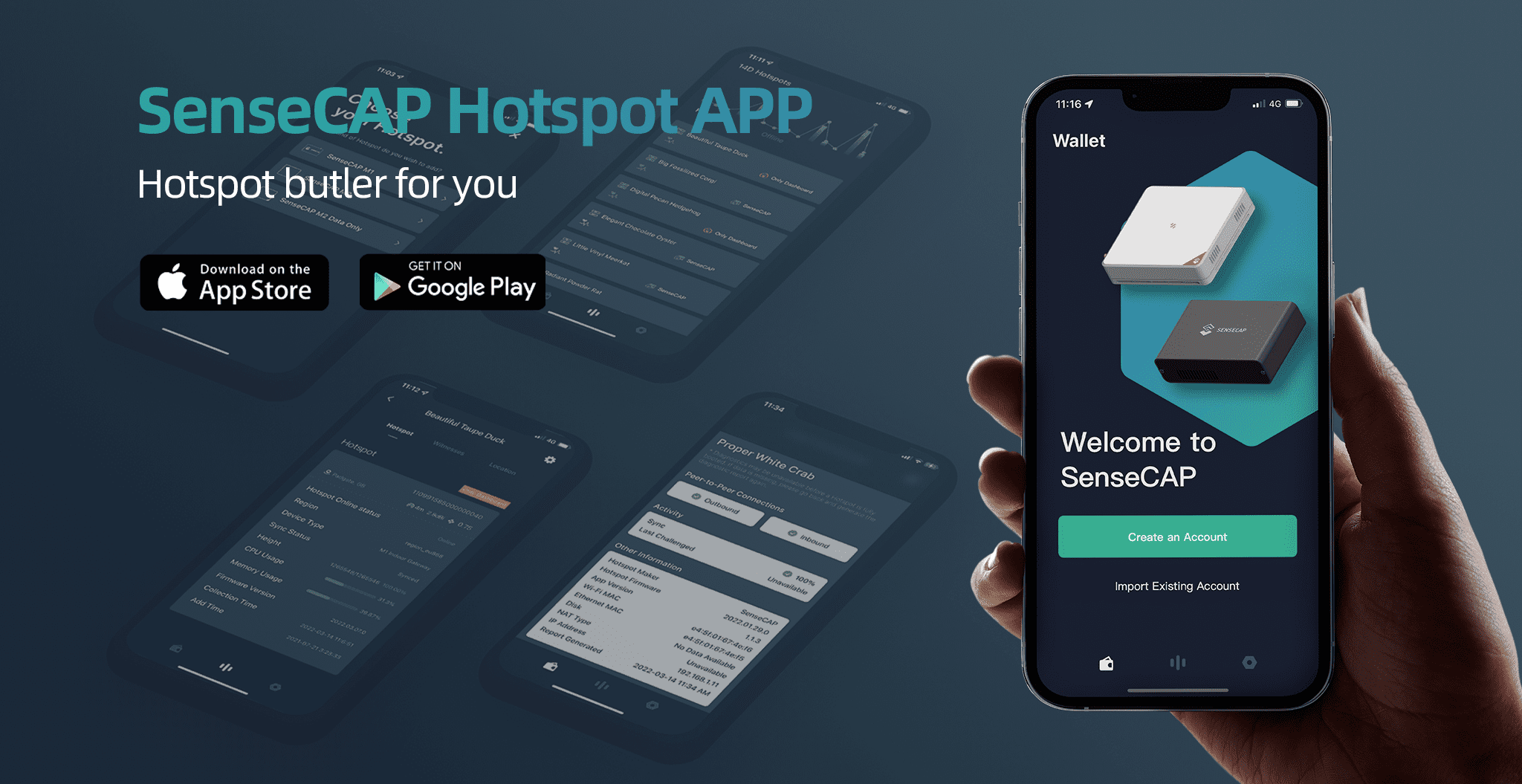

Users could easily set up the hotspot In a few simple steps via SenseCAP Hotspot App. SenseCAP Hotspot Dashboard and SenseCAP Local Console are also developed for users to monitor and manage the Hotspot in an efficient and easy way.
Efficient and Timely Online Support
Besides these Professional Management Tools and Cloud Services, SenseCAP has been highly praised by customers for its tech support. Whenever encounter a technical problem, the efficient online tech support service is always here and supports you in a timely manner.
Secured and Reliable
For a gateway that handles great loads of data transmission, safety is never too much to be concerned about. SenseCAP M2 Data Only always assures high-security authentication and reliable connectivity to the People’s Network.
Rich Accessories
Besides the powerful features of the SenseCAP device itself, SenseCAP has been providing rich accessories choices for users to get the maximum performance for the Hotspots. Such as the best sales of high-performance IoT antennas, antenna cables, mounting pads, and lightning arrestors.
Also, we will have the SenseCASE series, which is a SenseCAP-developed waterproof outdoor enclosure that fits general hotspots in the market. It will further enable the possibilities for users to have the gateways placed outdoors, therefore more various LoRaWAN scenarios could come to reality.
We are sure that more possibilities are waiting for you to discover with the SenseCAP MX series! Come and join the SenseCAP family now!
