Tracker / Mesh DevicePrivate LoRaWANIndoor & Outdoor
SenseCAP Card Tracker T1000-E for LoRaWAN
$39.90
USD
It features open-source software . It integrates diverse sensors and positioning tech, transmitting data to the cloud via LoRaWAN for real-time device monitoring and management. As an open-source device, LoRaWAN Tracker T1000-E offers full…
Mesh / TrackingGNSS tracking
PositioningGPS/GLONASS/Galileo/ BeiDou/QZSS
Battery Life3 months on a single charge(uplink every 1 hour, only GNSS data)
Secure Payment Options
Bank transfer or cryptocurrency
Bank Transfer
Cryptocurrency (Bitcoin)
365-Day Recorded Warranty
Eligibility linked to the product and serial record
Secure Approved Payments
Bank transfer or cryptocurrency
Order & Serial-Linked Support
Traceable order and after-sales assistance
Verified Network Compatibility
Positioning, radio and network support are documented
Technical Specifications
Verified product data organized in one table
| Product Classification | |
|---|---|
| Product Profile | Tracker / Mesh Device |
| Environment / Deployment | Indoor & Outdoor |
| Primary Use Cases | Asset, personnel and outdoor tracking |
| Network & Ecosystem | |
| Supported Network / Ecosystem | SenseCAP, Private LoRaWAN |
| Connectivity / Protocol | LoRaWAN, LoRa, Wi-Fi, Bluetooth, BLE, USB, GNSS / GPS |
| LoRaWAN Regional Compatibility | |
| Supported Regions | EU868, US915, AU915, AS923, IN865, KR920, RU864 |
| LoRaWAN Technical Specifications | |
| RX Sensitivity | -145dBm cold start / -160 dBm Tracking |
| Antenna Type | Internal (GNSS/LoRa/Wi-Fi/BLE) |
| Power | |
| Power Method | Battery |
| Input Voltage | 4.7 to 5.5V DC |
| Battery Life | 3 months on a single charge(uplink every 1 hour, only GNSS data) |
| Physical & Environmental | |
| IP Rating | IP65 |
| Operating Temperature | -20℃ to +60℃ |
| Operating Humidity | 5% - 95% (No condensation) |

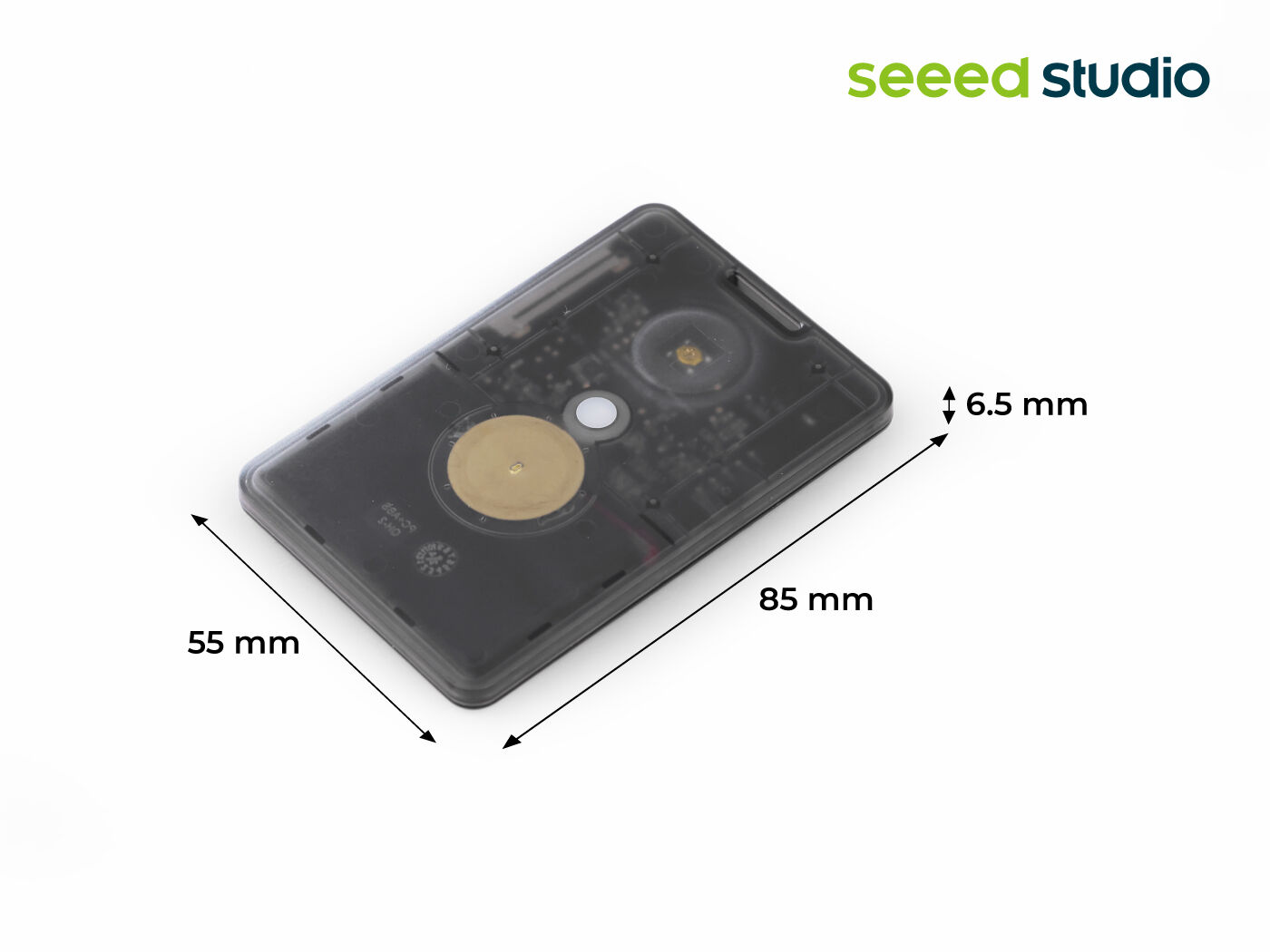

| Dimensions | 85 x 55 x 6.5 mm |
| Certifications | CE /FCC /RoHS |
| Tracker / Mesh Specifications | |
| GNSS / Positioning | GPS/GLONASS/Galileo/ BeiDou/QZSS |
| Tracking / Mesh Modes | GNSS tracking |
| Bluetooth / BLE Version | Bluetooth v5.1, setting via SenseCraft App |
| Detailed Technical Data | |
| Product Model | T1000-E |
| Backhaul | LoRaWAN® (v1.0.4 Class A) |
| Bluetooth | Bluetooth v5.1, setting via SenseCraft App |
| LoRaWAN Channel Plan | IN865/EU868/US915/AU915/AS923/ KR920/RU864 |
| Temperature | Range: -20 to 60℃; Accuracy: ± 1℃; Resolution: 0.1℃ |
| Light | 0 to 100% (0 is dark, 100% is brightest ) |
| 3-Axis Accelerometer | 3-Axis Accelerometer to detect movement |
| LED and Buzzer | 1*LED and 1* buzzer to indicate status |
| Button | 1*Button to operate and trigger events(SOS) |
| Antenna | Internal (GNSS/LoRa/Wi-Fi/BLE) |
| Communication Distance | 2 to 5km (depending on gateway antenna, installation, and environments) |
| Device Weight | 32g |
| Certification | CE /FCC /RoHS |
| GNSS Constellation | GPS/GLONASS/Galileo/ BeiDou/QZSS |
| GNSS Sensitivity | -145dBm cold start / -160 dBm Tracking |
| GNSS Location Accuracy | ~1m CEP, GPS, -130dBm |
| Wi-Fi Positioning | Passive scanning, uploads the scanned 3~5 MAC addresses |
| Bluetooth Positioning | uploads the scanned 3 best signal MAC addresses of Beacon |
| Battey Capacity | Rechargeable lithium battery, 700mAh |
| *Battery Life Estimates | 3 months on a single charge(uplink every 1 hour, only GNSS data) |
| Battery Life Monitoring | Periodic uplink battery level |
| Charge Cable (Adapter not included) | USB magnetic charging cable, 1 meter |
| Power Input Voltage | 4.7 to 5.5V DC |
| Charging Temperature | 0 to +45℃ |

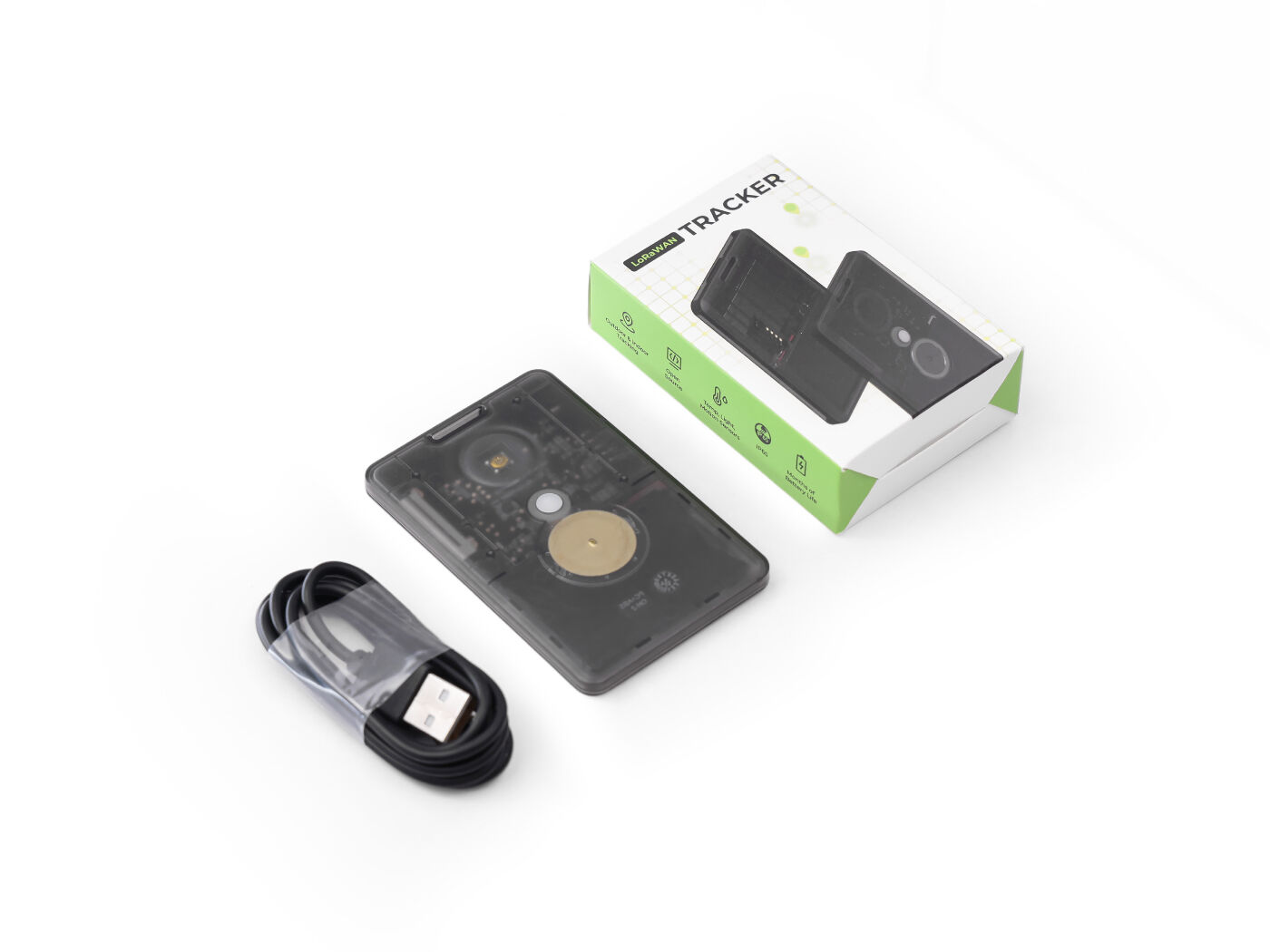

| Tracker T1000-E | x1 |
| USB Cable (Adapter not included) | x1 |
| HSCODE | 9031809090 |
| USHSCODE | 8517620090 |
| EUHSCODE | 9013101000 |
| COO | CHINA |
Product Overview
It features open-source software . It integrates diverse sensors and positioning tech, transmitting data to the cloud via LoRaWAN for real-time device monitoring and management. As an open-source device, LoRaWAN Tracker T1000-E offers full source code, enabling developers to customize and expand functions freely.
Open – source Software: Offer full source code, enabling community contributions and custom dev. Multi – sensor Integration: Integrate temp, light, 3 – axis accel sensors. Support GNSS, WiFi & Bluetooth for indoor/outdoor positioning. Easy Configuration: Via SenseCraft App , users can easily configure device params. Strong LoRaWAN Support: Ensure quick device network access and config. User – friendly Buttons: Simple button ops for power on/off, Bluetooth setup, SOS alarm, etc. Versatile LoRaWAN Connectivity – T1000-E for Your Tracking Needs SenseCAP Card Tracker T1000-E for LoRaWAN is designed for versatile long-range tracking applications. It comes preloaded with LoRaWAN firmware out of the box, providing reliable and low-power connectivity for asset tracking and GNSS-based applications. 1. LoRaWAN – Out-of-the-Box LoRaWAN Communication Ideal for long-range, low-power IoT applications using public or private LoRaWAN networks. See and buy: SenseCAP Card Tracker T1000-E for LoRaWAN . 2.
