SenseCAP BC03 Indoor Bluetooth Beacon for Tracker
Technical Specifications
Verified product data organized in one table
| Product Classification | |
|---|---|
| Product Profile | Tracker / Mesh Device |
| Environment / Deployment | Indoor & Outdoor |
| Primary Use Cases | Asset, personnel and outdoor tracking |
| Network & Ecosystem | |
| Supported Network / Ecosystem | SenseCAP, Private LoRaWAN |
| Connectivity / Protocol | LoRaWAN, Wi-Fi, Bluetooth, BLE, GNSS / GPS |
| LoRaWAN Technical Specifications | |
| TX Power | -40 ~ +4 dBm, default 0 dBm |
| Power | |
| Power Method | Battery |
| Physical & Environmental | |

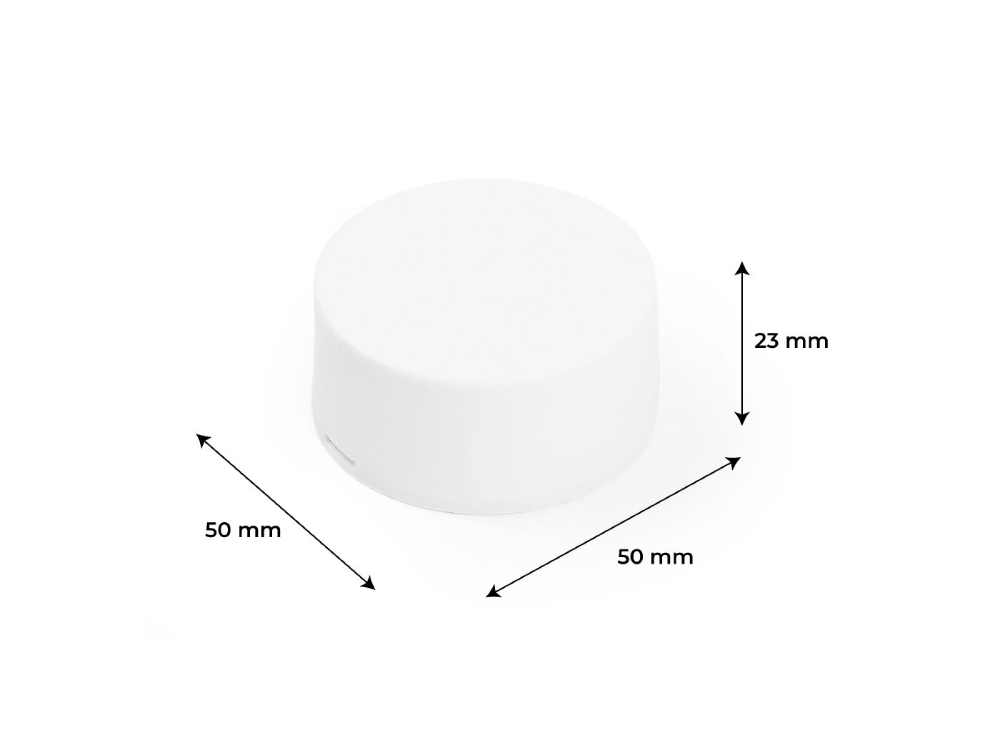

| Dimensions | Φ50*20.5mm |
| Weight | 4 5 g(include battery) |
| Tracker / Mesh Specifications | |
| Tracking / Mesh Modes | GNSS tracking |
| Bluetooth / BLE Version | BLE 5.0 |
| Detailed Technical Data | |
| Parameter | Specification |
| Material | ABS （ Anti - UV ） |
| Color | White |
| IP rate | None |
| Dimension(L*W*H) | Φ50*20.5mm |
| Battery | Li/SOCI2 battery, 2400mAh |
| Chip | nRF52 series |
| Bluetooth Version | BLE 5.0 |
| Bluetooth Protocol | iBeacon |
| Sensors | A ccelerometer, Option al |
| LED | 1 × Blue LED |
| APP | SenseCraft APP |
| Working T emperature | - 2 0~60℃ |
| Battery L ife | More than 5 years (0dBm/500ms in default configuration). |
| Parameters | Default Value |
| UUID | 5EEEDBCA-AC02-43B0-B0CF-C6EB07647825 |
| Major | Assigned from the device MAC address (lower 2 bytes) |
| Minor | Assigned from the device MAC address (upper 2 bytes) |
| Measured power | -59dBm |
| Adv Interval | 20ms ~ 30s, default 500ms |
| Password | 12345678 |
| Device Name | 03 |
| Battery Service | Battery icon display |
| System | Devices |
| BLE | BLE 5 . 0 + |
| i OS 7.0+ | iPhone 4S, iPhone 5/5C/5S, iPhone 6/6Plus/6S/6S Plus, iPhone 7/7Plus, iPad mini/mini2/4/Air/Pro, etc. |
| Android 4.3+ | Samsung, XIAOMI, HUAWEI, ONEPLUS, vivo , OPPO, etc. |
| Indoor Bluetooth Beacon BC03 | x1 |

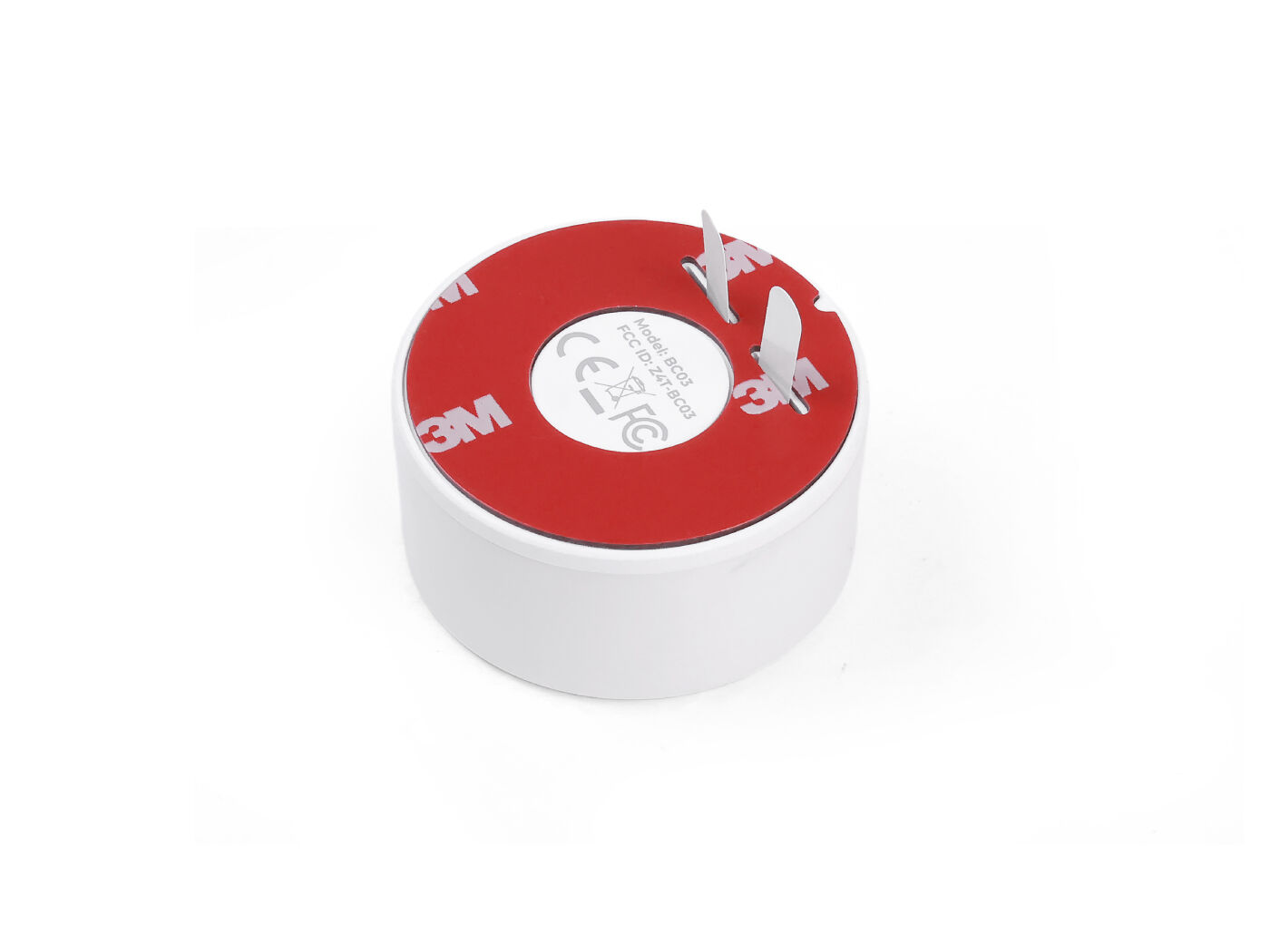

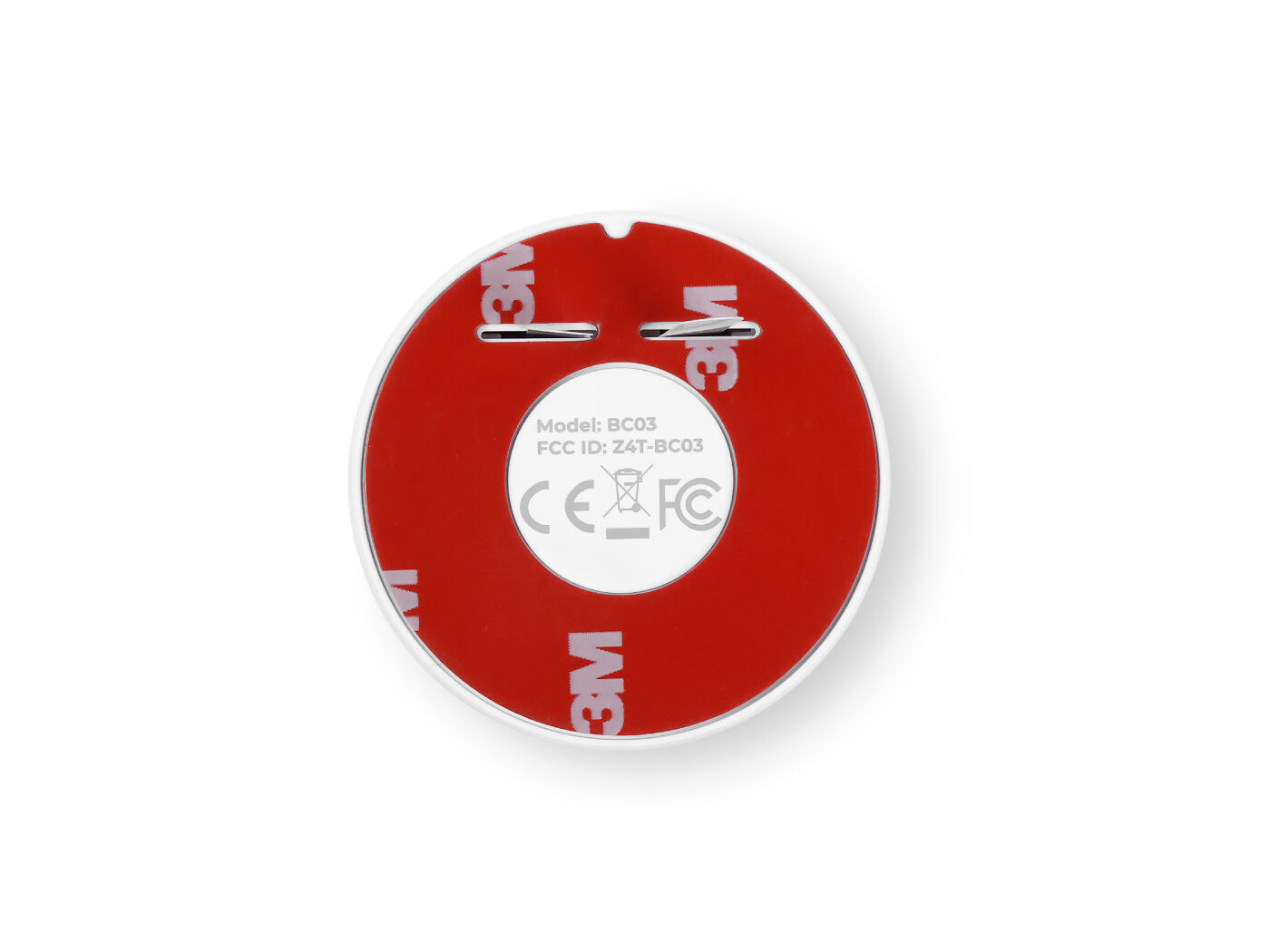

| 3M Sticker （ Pre-taped ） | x1 |
| Insulating film | x 2 |
| HSCODE | 9014800090 |
| USHSCODE | 9014801000 |
| EUHSCODE | 9405413910 |
| COO | CHINA |
Product Overview

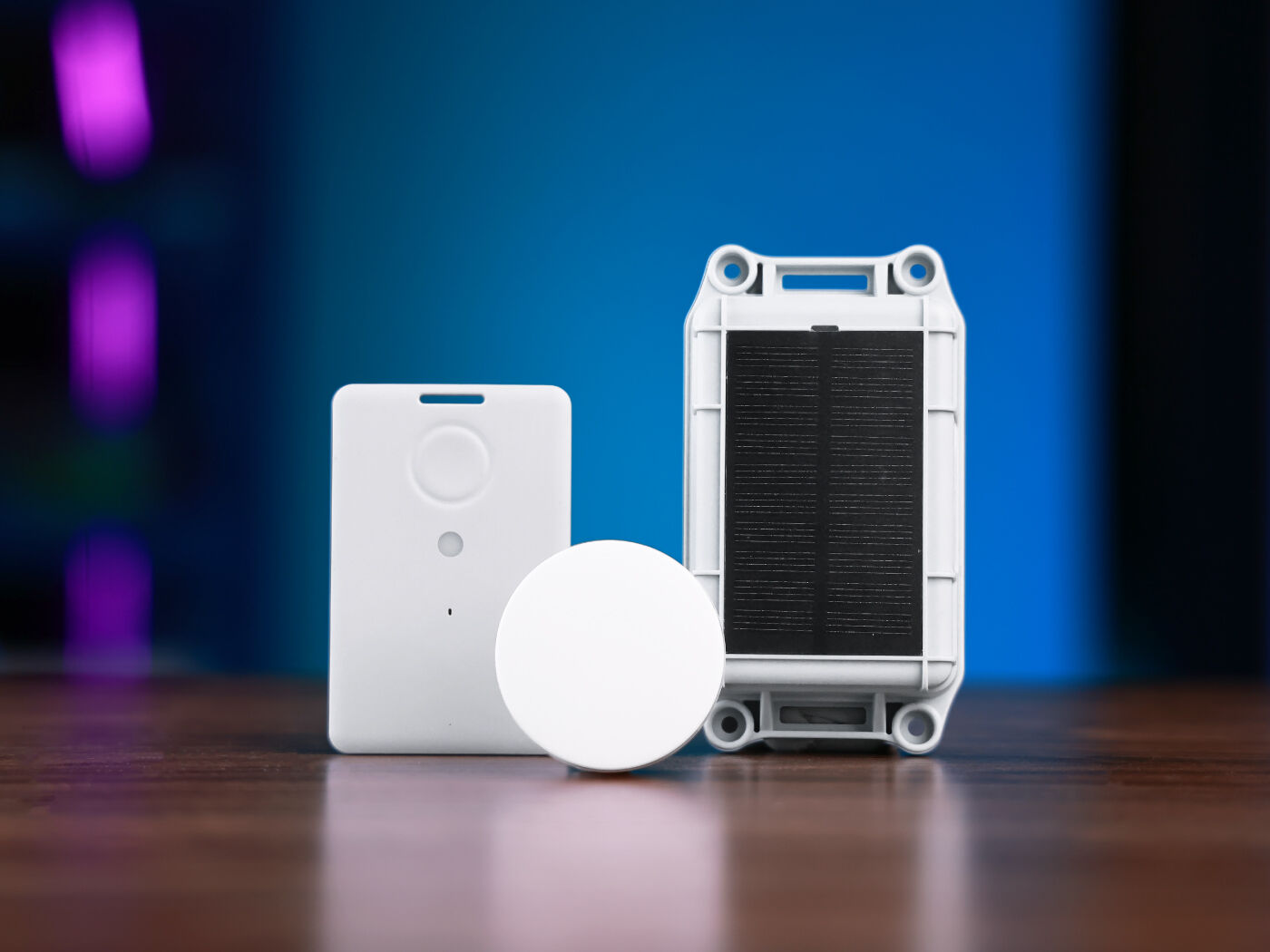

SenseCAP BC03 Indoor Bluetooth Beacon is a small wireless device that transmits Bluetooth signals at regular intervals. These signals can be detected by Bluetooth-enabled devices, such as SenseCAP T1000 Tracker , SenseCAP T2000 Tracker , allowing them to determine their proximity to the beacon, building a location-based solution for indoor po sitioning, asset tracking and other applications.
Bluetooth® LE 5.0 Long battery life : Replaceable Li/SOCl2 battery, more than 5 years (0dBm/500ms in default configuration). Long-distance transmission : Up to 1 3 0 meters in open areas. Simple Installation ： Pull out the insulating film and it can be pasted and installed, reducing construction costs. U V Protection: Suitable for UV – sterilization lamps and similar scenarios, without altering appearance . BC03 has a high-gain omni-directional BLE antenna , low – ower consumption, and user interaction: Enhanced Beacon Broadcasting Capability Optimized BLE advertising stability and RSSI consistency, improving indoor positioning accuracy and robustness in complex environments. Antenna Design Excellent radiation efficiency and directional consistency, onboard antenna, thus achieving a longer communication range and more stable communication without precise adjustment of the installation direction. Longer Battery Life Further optimized low-power design. Under the same configuration (0 dBm / 500 ms), BC03 achieves large-scale and long-term deployment. LED Status Added A blue LED provides intuitive device status feedback during power-on and operation, display the device's power – up and upgrade status . BLE Indoor Positioning System GPS has proven its ability to locate outdoors. Now, we also tend to move to indoor positioning, and Bluetooth beacons make indoor precise positioning possible. Combine wit h SenseCAP T1000 Tracker o r SenseCAP T2000 Tracker to build an indoor positioning solution.
