SenseCAP A1102 – LoRaWAN Vision AI Sensor
Technical Specifications
Verified product data organized in one table
| Product Classification | |
|---|---|
| Product Profile | IoT Sensor |
| Environment / Deployment | Indoor & Outdoor |
| Primary Use Cases | IoT monitoring and connected deployments |
| Network & Ecosystem | |
| Supported Network / Ecosystem | SenseCAP, Private LoRaWAN |
| Connectivity / Protocol | LoRaWAN, Wi-Fi |
| LoRaWAN Regional Compatibility | |
| Supported Regions | EU868, US915, AU915, AS923, IN865 |
| Power | |
| Power Method | Battery, Solar |
| Input Voltage | Built-in Battery or DC 12V/1A (with external junction box wiring) |
| Power Consumption | 102mA |
| Solar Support | Yes |
| Physical & Environmental | |
| IP Rating | IP66 |
| Operating Temperature | 0 - 70 °C |
| Operating Humidity | 0-100% RH (non-condensing) |
| Dimensions | Camera:180mm*75mm*70mm DTU: 144.5mm*63mm*57mm |
| Detailed Technical Data | |
| Product Model | SenseCAP A1102 |
| Microcontrollers | Vision AI: Himax-6538 LoRaWAN Network: Wio-E5 ( STM32WLE5JC ) |
| Camera | Module: OV5647 Lens size : 1/4" Focal length : 3.4 mm (adjustable) Resolution : 2592 × 1944 pixels Pixel size : 1.4 µm × 1.4 µm Maximum frame rate : 1080p @ 30 fps, 720p @ 60 fps FOV : 62° |
| Model Execution and Inference | 480 * 480 >10 fps |
| LoRaWAN ® Transmission | Protocol : LoRaWAN v1.0.3 Class A |
| Power Supply | Built-in Battery or DC 12V/1A (with external junction box wiring) |
| Battery | Capacity: 19Ah (non-rechargeable) |
| Local Storage Memory | 8GB MicroSD C ard (Class 10) for storaging up to 20,000 images with timestamp and supports to export |
| Cable L ength | 2 meter s |
| Device Weight | 719g |
| Device Dimensions | Camera:180mm*75mm*70mm DTU: 144.5mm*63mm*57mm |

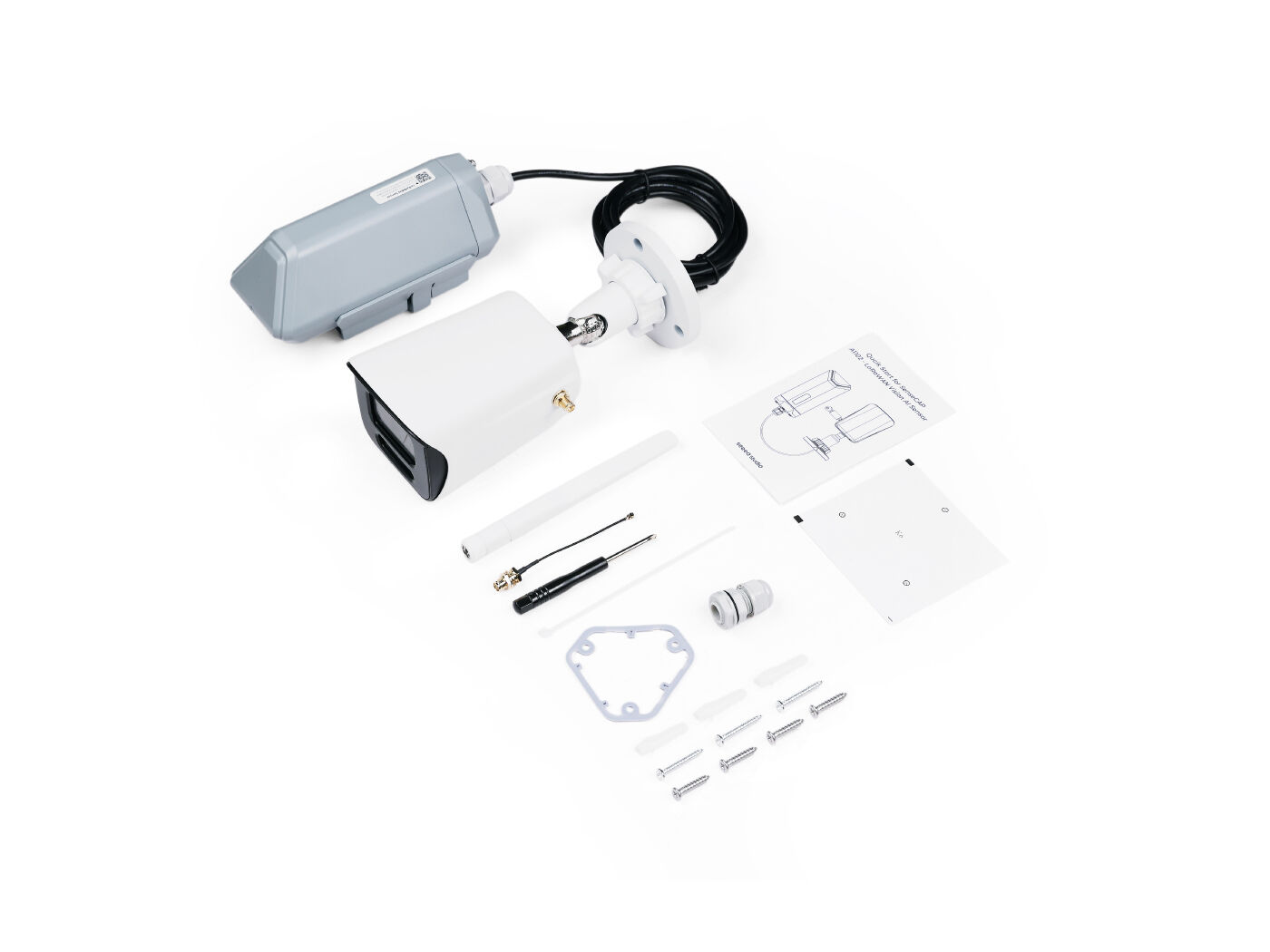

| SenseCAP A1102 - LoRaWAN Vision AI Sensor | x1 |
| 2.4GHz Rod Antenna | x1 |
| Waterproof Aviation Plug | x1 |
| Phillips S crewdriver | x1 |
| I nstruction Guide | x1 |
| S crews P ackage | x1 |
| Base P ositioning S ticker | x1 |
| HSCODE | 9031809090 |
| USHSCODE | 9031808085 |
| EUHSCODE | 9013101000 |
| COO | CHINA |
Product Overview
SenseCAP A1102 is a IP66 rated LoRaWAN ® Vision AI Sensor, ideal for low-power, long-range TinyML Edge AI applications. It features 480*480, 10 FPS, 863MHz ~928MHz, battery power supply , sending only the reference results via LoRaWAN, fully respecting privacy and ensure security.

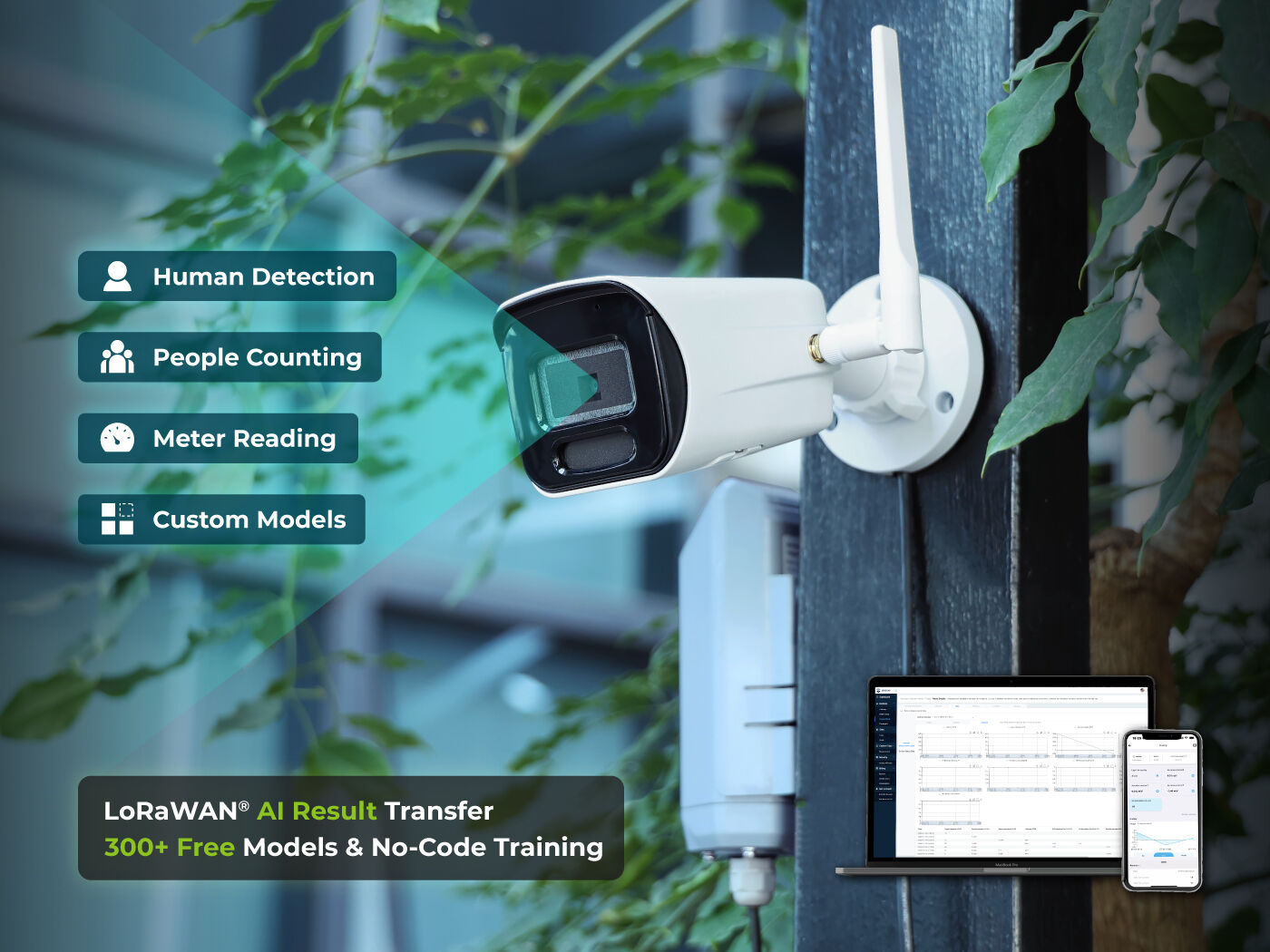

The SenseCAP A1102 LoRaWAN ® Vision AI Sensor is a smart edge device that runs TinyML AI models locally, transmitting only inference results via LoRaWAN ® (863-928MHz) for enhanced privacy and power efficiency. Operating at 480×480 resolution with 10 FPS, it comes with three pre-deployed models for human detection, people counting, and meter reading, while offering no-code access to 300+ pre-trained models or custom model training through the SenseCraft AI platform. It also supports model deployment from TensorFlow Lite and PyTorch frameworks. Users can configure the device and the frequency bands via the SenseCraft App , and deploy the IP66-rated sensor in harsh indoor or outdoor environments. With a built-in battery, making it ideal for various AI applications requiring long-range communication. Advanced Edge AI Camera : Equipped with a powerful MCU-based vision camera processor performing local inference at 480×480 resolution at 10 FPS. By transmitting only inference results, it ensures data privacy and minimizes network bandwidth usage. No-Code AI Model Deployment and Training : Pre-loaded with three on-device AI models (human detection, people counting, and meter reading) for out-of-box vision applications. Natively integrates with SenseCraft AI , a web-based platform offering 300+ pre-trained models for instant deployment and simple 3-step training workflow for classification and detection models. This enables rapid model training and deployment without coding expertise. Moreover, the devices also supports custom AI models converted from TensorFlow and PyTorch frameworks for edge deployment . LoRaWAN® Connectivity : Supports global frequency bands (863-928 MHz) with transmission range up to 10 km in optimal conditions, enabling reliable long-distance communication.
