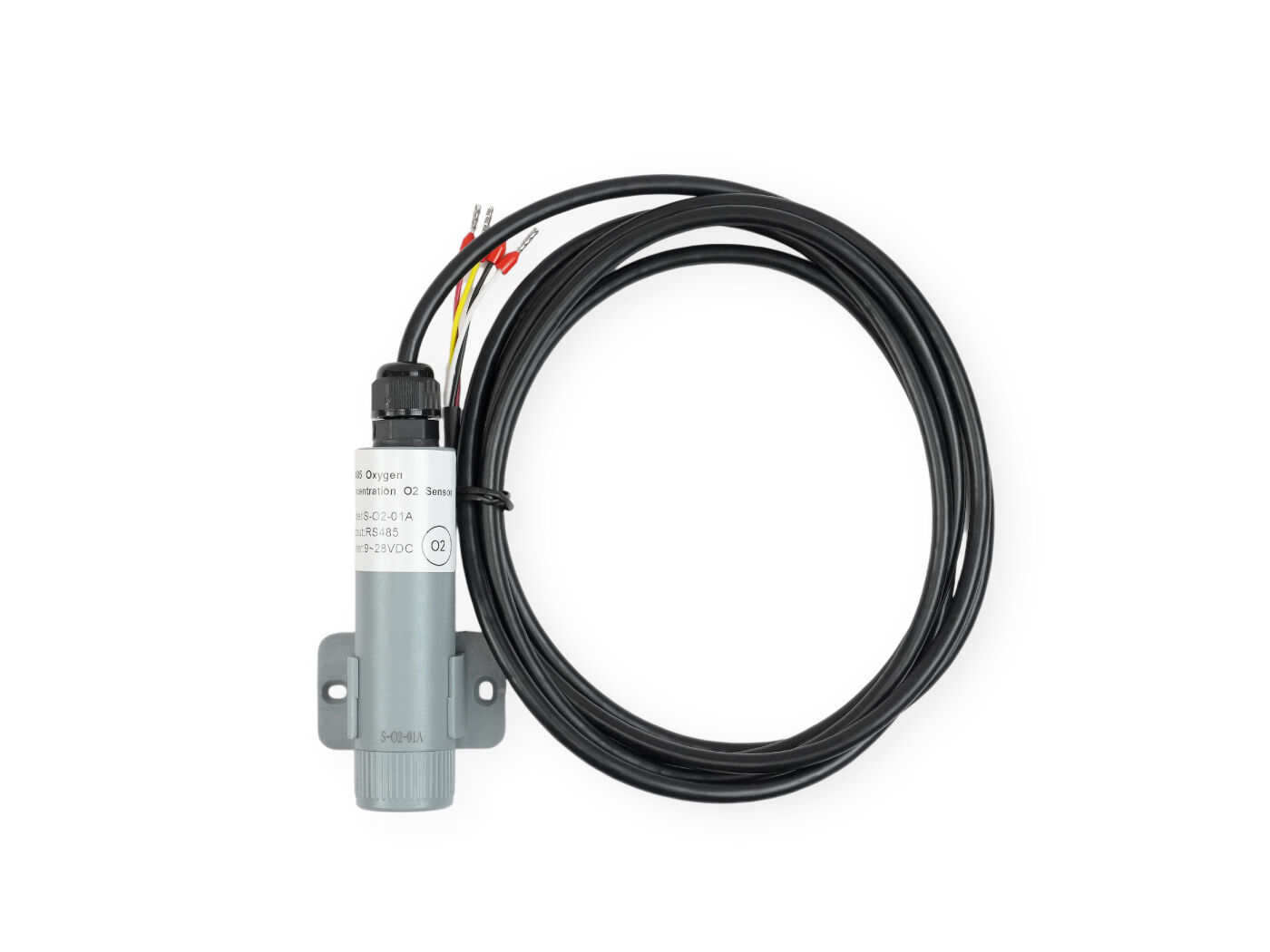

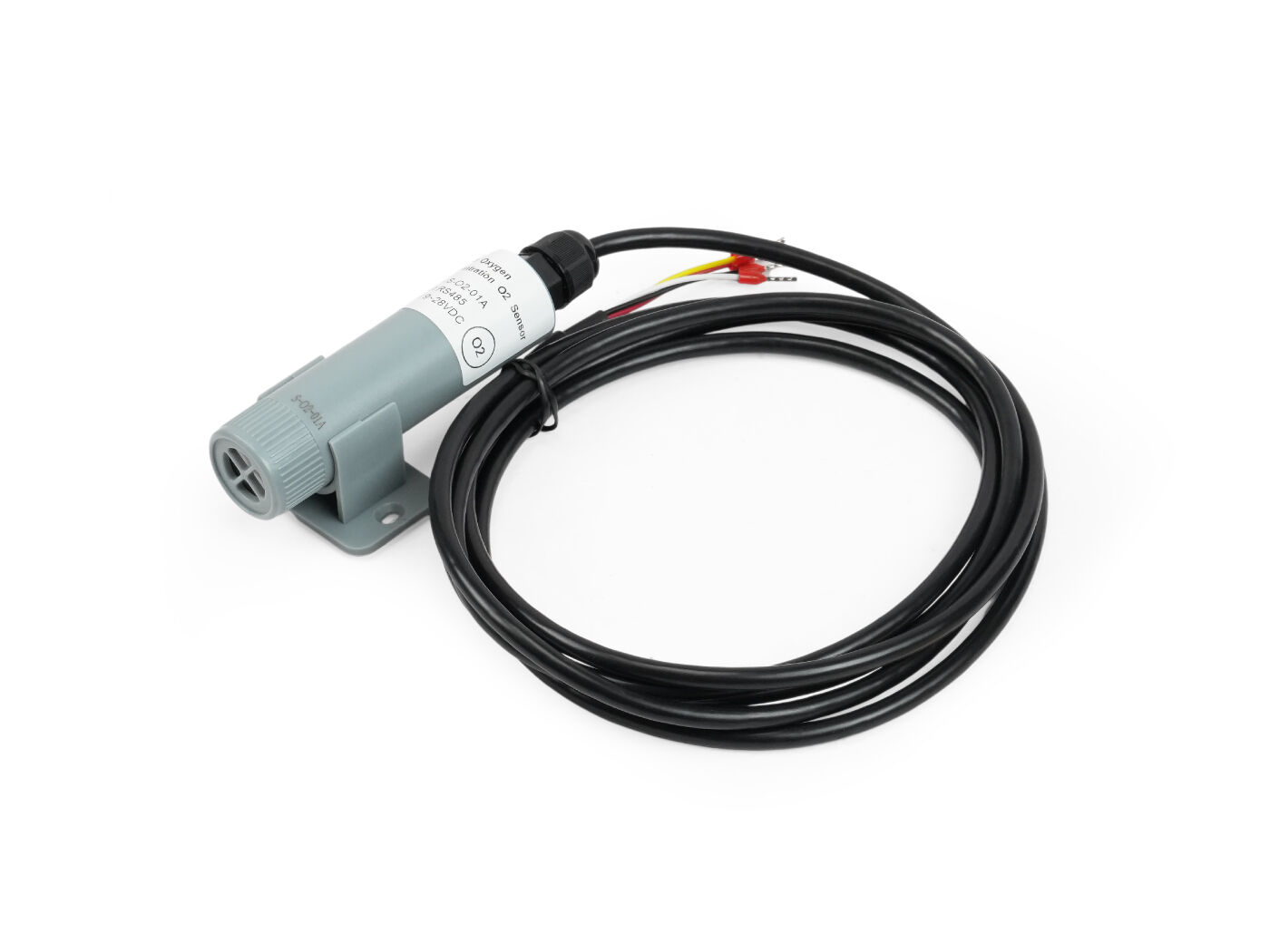

RS485 Oxygen Concentration O₂ Sensor: Modbus RTU, Indoor Oxygen Concentration Detection, Oxygen Partial Pressure, Temperature and Barometric Pressure Monitoring
Technical Specifications
Verified product data organized in one table
| Product Classification | |
|---|---|
| Product Profile | IoT Sensor |
| Environment / Deployment | Indoor & Outdoor |
| Primary Use Cases | Asset, personnel and outdoor tracking |
| Network & Ecosystem | |
| Supported Network / Ecosystem | SenseCAP, Private LoRaWAN |
| Connectivity / Protocol | LoRaWAN, Bluetooth, RS485, Modbus RTU, Analog, GPIO |
| Power | |
| Power Method | Battery |
| Input Voltage | 9-28 V DC |
| Power Consumption | Average Current: <10mA @12V DC Measuring Current : <20mA @12V DC, measurement interval 1000ms |
| Physical & Environmental | |
| IP Rating | IP50 |
| Operating Temperature | 10-45°C |
| Operating Humidity | 0-95%RH,, non-condensing |
| Dimensions | Sensor body: 111 * 25.5 mm (Length * Diameter) |
| Detailed Technical Data | |
| Sensor Description | RS485 Oxygen Concentration O2 Sensor |
| Output Interface | RS485, Modbus-RTU |
| Default Serial Communication | Slave address: 1;baud rate: 9600 bps;data bits: 8; stop bits: 1; |
| Power Supply | 9-28 V DC |

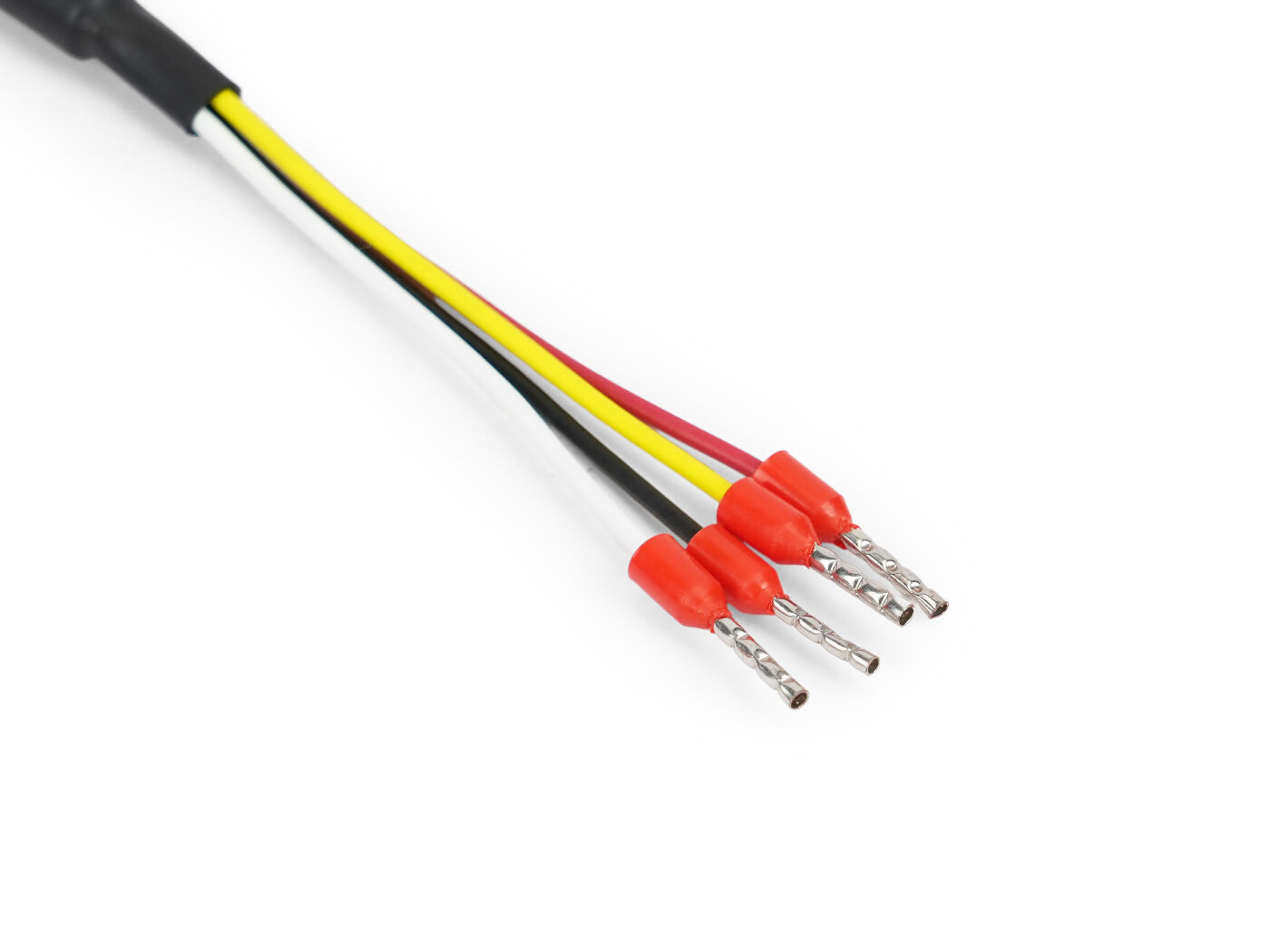

| Cable Length | 2 meters |

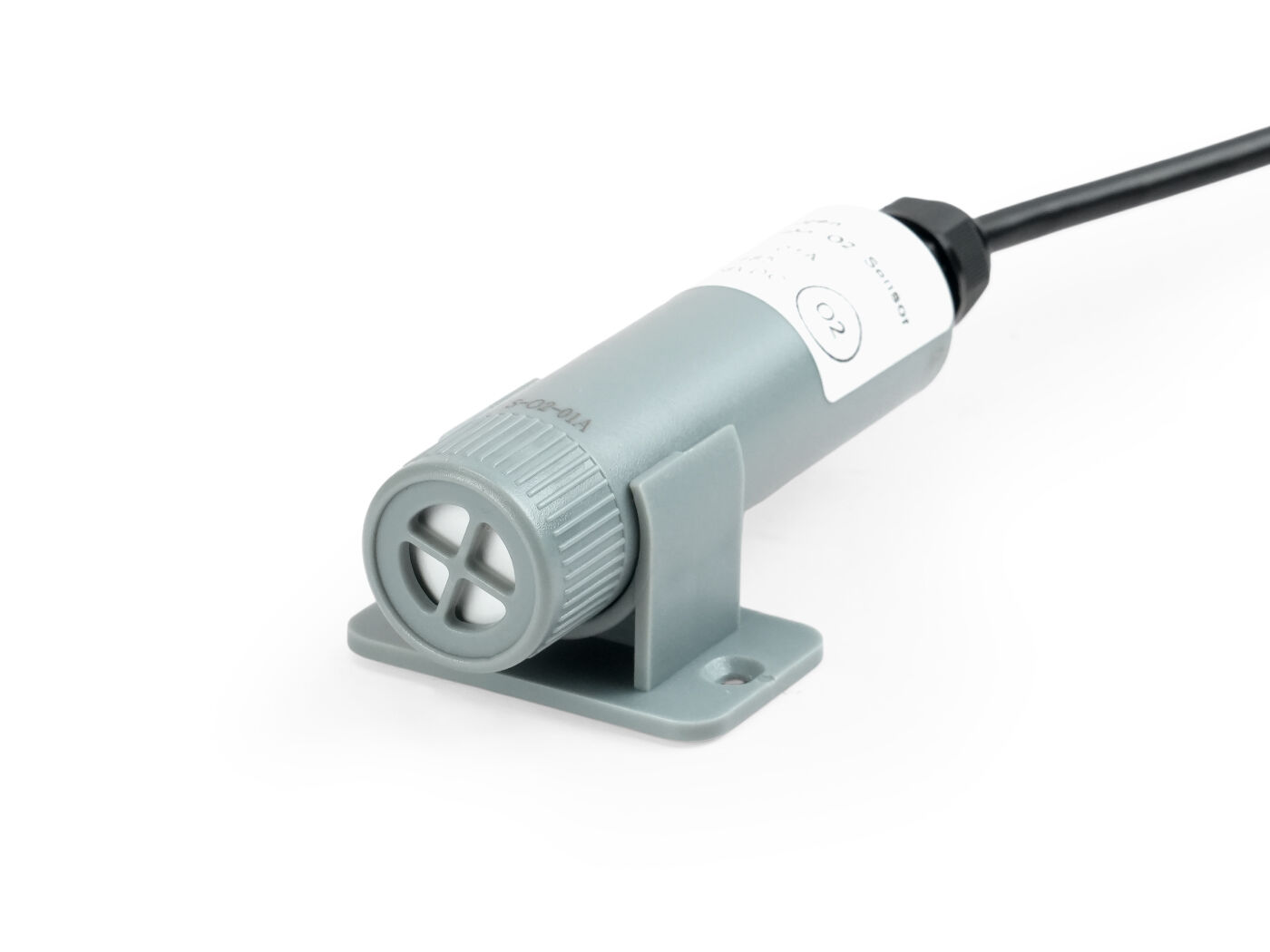

| Installation | Wall mounting |
| Range | 0-300 mbar |
| Accuracy | <2% FS |
| Resolution | 0.1 mbar |

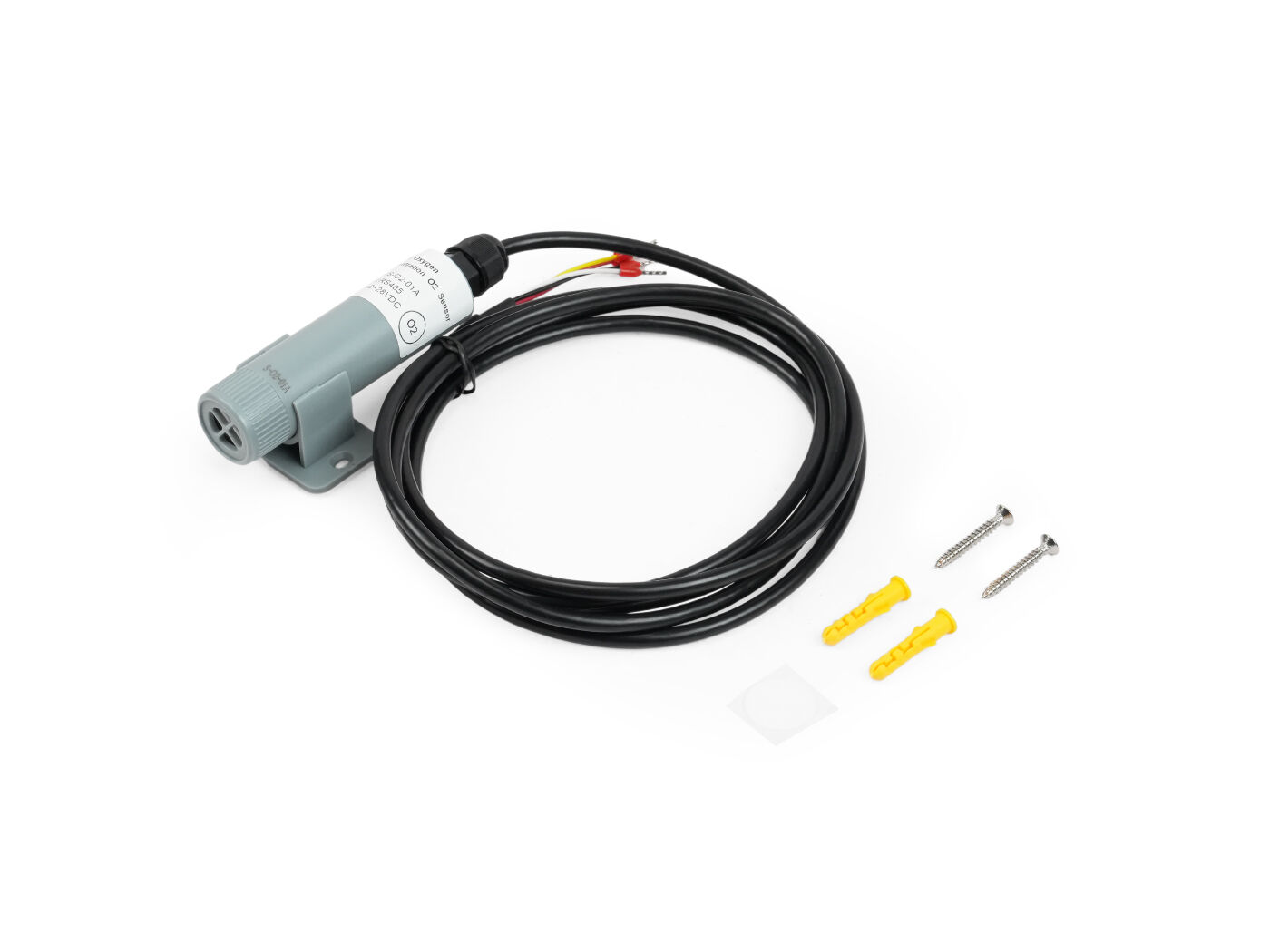

| Oxygen Concentration Sensor | x1 |
| Mounting Bracket | x1 |
| Plastic Screw | x2 |
| Metal Screw | x2 |
| HSCODE | 9027100090 |
| USHSCODE | 9027106000 |
| EUHSCODE | 9027109000 |
Product Overview
The RS485 Oxygen Concentration O2 Sensor is a high-precision, multi-parameter sensor designed for continuous oxygen monitoring. It is widely used in HVAC, laboratories, scientific research, indoor air monitoring, and environmental monitoring. The sensor measures oxygen concentration, oxygen partial pressure, temperature, and barometric pressure, with readings updated every second. Its non-electrochemical luminescence-quenching technology and long-life SST® O2 sensing element provide accurate and stable measurement across a 0–25% range. For easy integration, it supports RS485 Modbus RTU communication and low-power 9–28 V DC operation, while its IP50 wall-mounted design allows for convenient installation. Built-in surge, reverse-polarity, TVS, and ESD protection further enhance reliability during long-term operation.
The RS485 Oxygen Concentration Sensor uses luminescence-quenching optical technology to measure ambient oxygen partial pressure, oxygen concentration, temperature, and barometric pressure. For easy system integration, it supports RS485 Modbus RTU communication. Its compact IP50 wall-mounted enclosure incorporates an SST® O₂ sensing element with a service life of more than two years, ensuring high accuracy and excellent stability. Meanwhile, the low-power 9–28 V DC operation, together with reverse-polarity, surge, TVS, and ESD protection, enhances reliability during long-term use. With these features, the sensor is well suited for scientific research, HVAC and ventilation control, routine weather monitoring, and environmental monitoring. This sensor is available with an RS485 Modbus RTU interface. It is compatible with the SenseCAP S2100 LoRaWAN® Data Logger , enabling low-power, long-range data transmission over LoRaWAN® networks. Note: This sensor is rated IP50 and is designed for indoor environments. It is not suitable for direct outdoor exposure or locations with water ingress risks. Comprehensive Oxygen Monitoring: Measures ambient oxygen partial pressure, oxygen concentration, temperature, and barometric pressure in one device. This provides the essential parameters required for evaluating oxygen conditions and understanding how environmental changes affect oxygen concentration. Configurable Measurement and Data Output: Provides both original and calibrated values for oxygen partial pressure, oxygen concentration, temperature, and barometric pressure.
