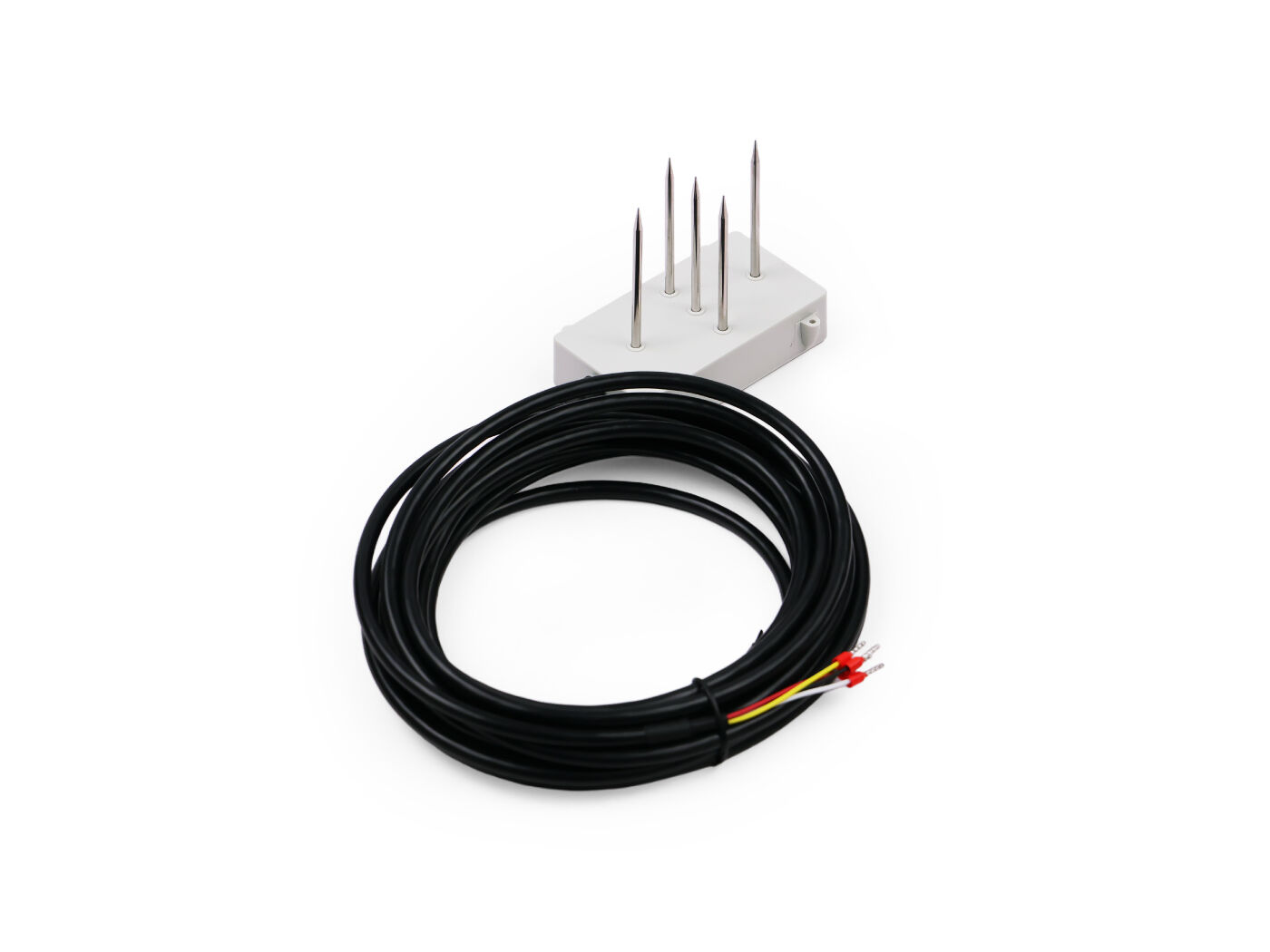

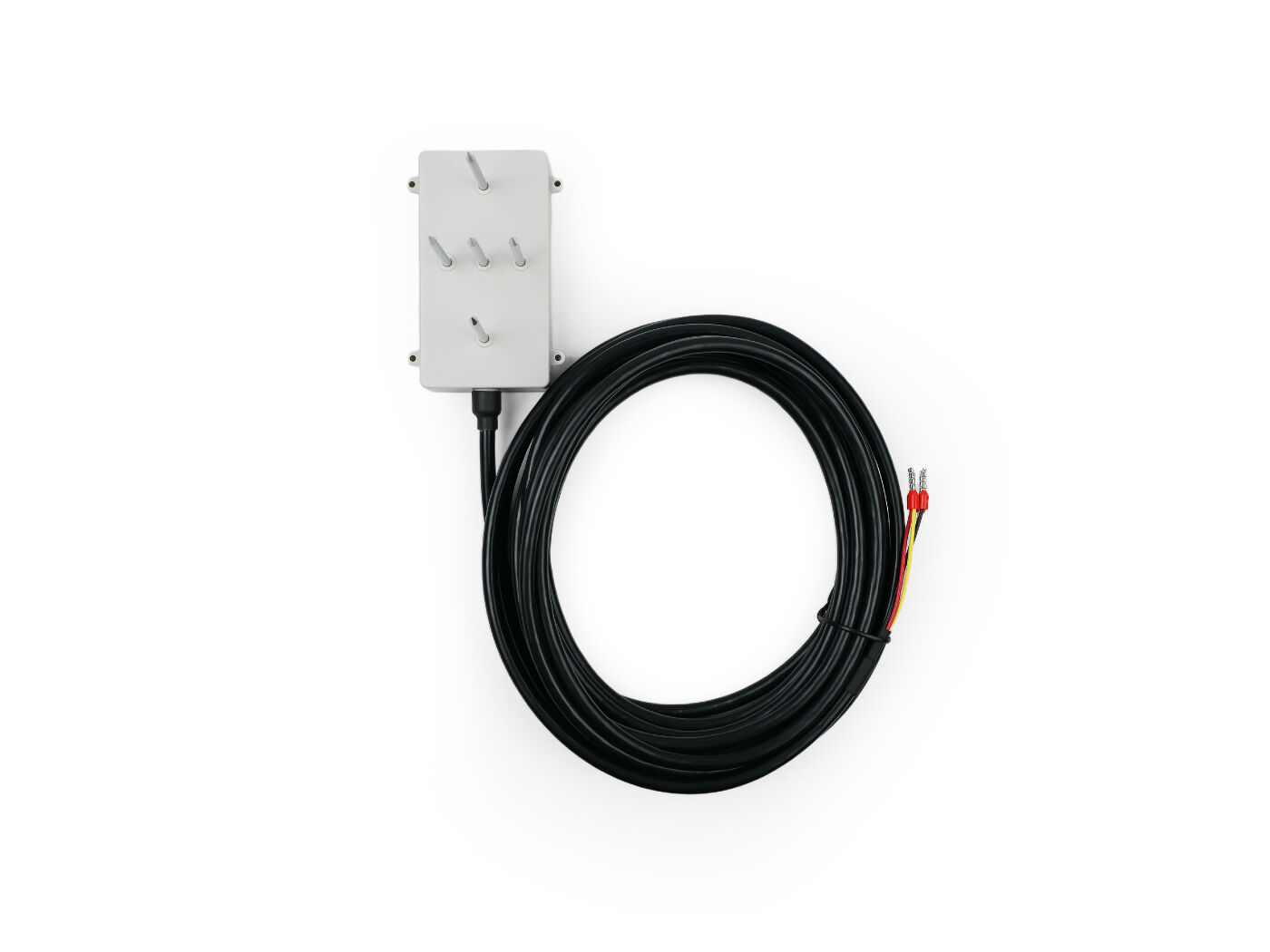

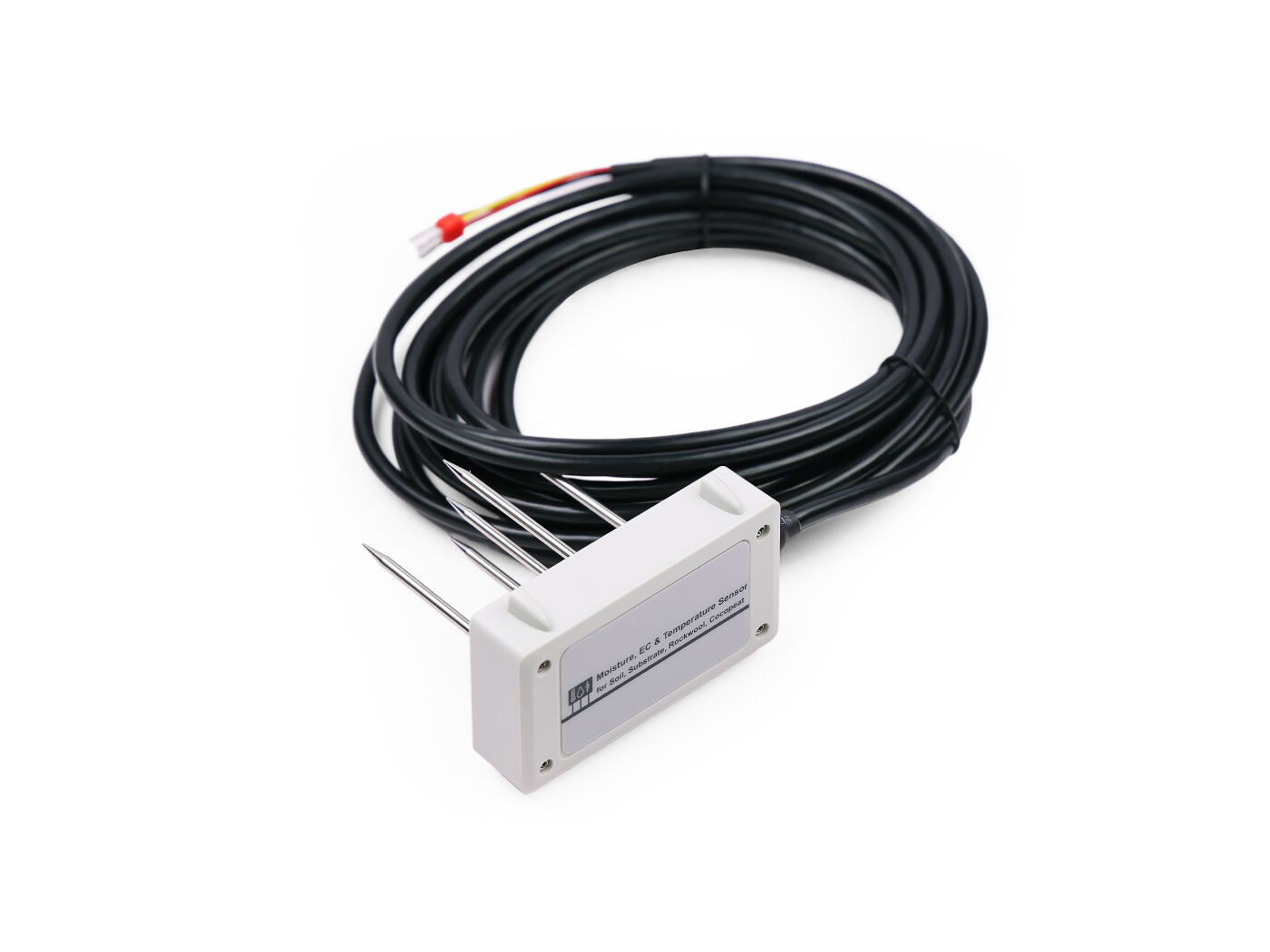

RS485 Moisture & EC & Temperature sensor for Soil, Substrate, Rockwool, Cocopeat
Technical Specifications
Verified product data organized in one table
| Product Classification | |
|---|---|
| Product Profile | IoT Sensor |
| Environment / Deployment | Outdoor |
| Primary Use Cases | Agriculture and environmental monitoring |
| Network & Ecosystem | |
| Supported Network / Ecosystem | Helium, SenseCAP, The Things Network (TTN) |
| Connectivity / Protocol | LoRaWAN, LTE / Cellular, RS485 |
| Power | |
| Power Method | DC |
| Input Voltage | 3.9-28V/DC |
| Power Consumption | RS485: Quiescent Current : Measuring Current : |
| Physical & Environmental | |
| IP Rating | IP68 |
| Operating Temperature | -40-80°C |
| Dimensions | 90*55*75mm |
| Detailed Technical Data | |
| Output Interface | RS485, Modbus-RTU |
| Power Supply | 3.9-28V/DC |
| Substrate Moisture Measurement | Apparent Dielectric Permittivity: Range:1-81 (air - water); Resolution: 0.1( 1-40 ), 0.5( 40.00-81 ); Accuracy: ±1( 1-40 ), ± 10% of Readings( 40-81 ); Volumetric Water Content (VWC): Range: 0-100%; Resolution: 0.1%; Accuracy: ±3%; The VWC range is dependent on the media the sensor is calibrated to. A default calibration will accommodate the necessary ranges for most substrates. |
| Substrate EC Measurement | Range: 0-20ds/m; Resolution: 0.01ds/m; Accuracy: ±5%( 0-7ds/m ); ±10% of Readings( 7-20ds/m ) Temperature compensation: 0-50°C |
| Substrate Temperature Measurement | Range: -40-80°C; Resolution: 0.1°C; Accuracy:±0.5°C; |
| IP Ratings | IP68 |
| Sensor Sealed | Epoxy resin |
| Installation | Surface or buried installation |

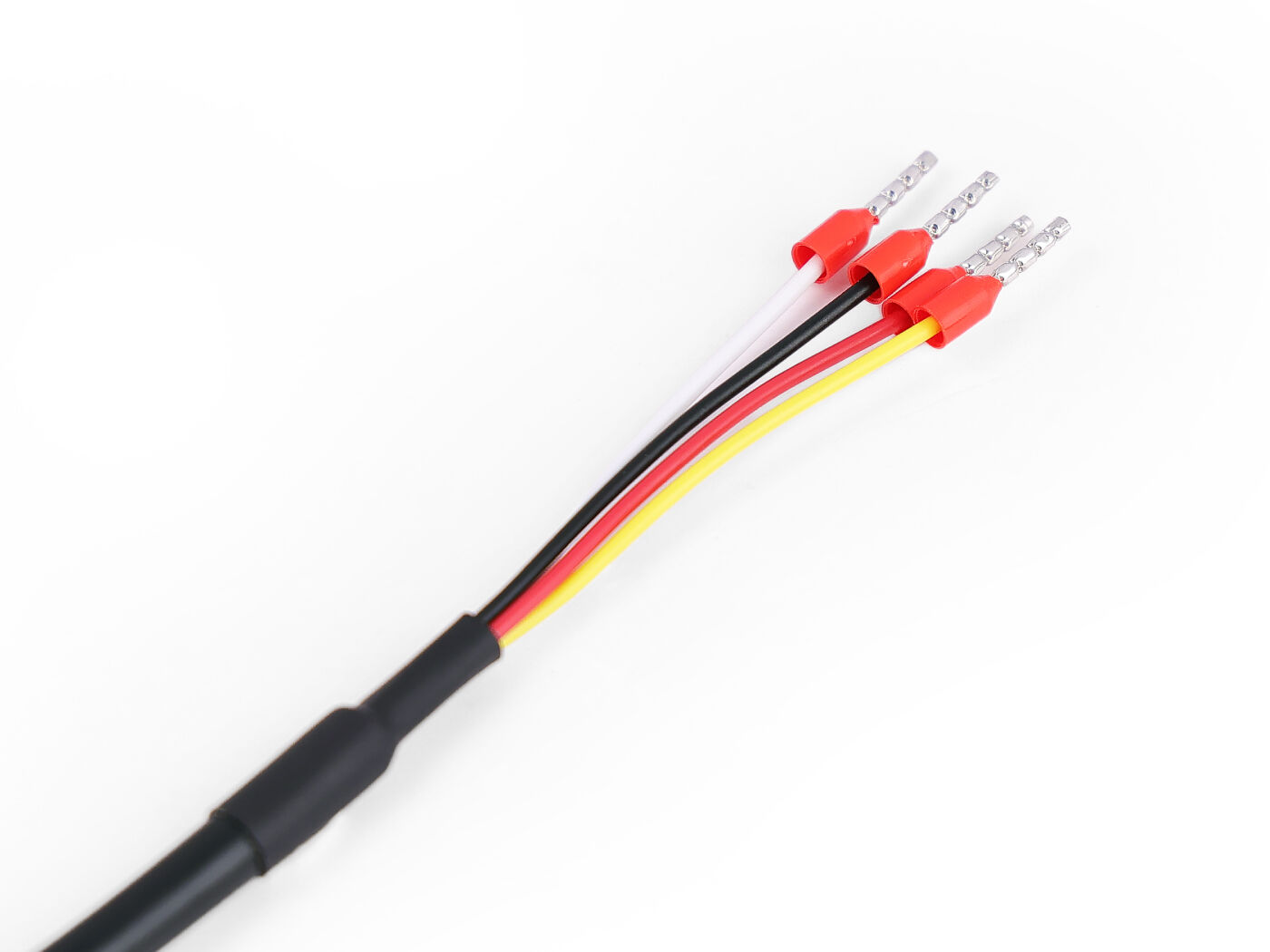

| Cable Length | 5 meters |
| Dimension | 90*55*75mm |
| Sensor | x1 |
| HSCODE | 9027899090 |
| USHSCODE | 9027894590 |
| EUHSCODE | 9027109000 |
| COO | CHINA |
Product Overview
An IP68 RS485 Substrate Moisture & EC & Temperature sensor, it is an accurate tool for monitoring volumetric water content (VWC), temperature in soil and soilless substrates, and electrical conductivity. It offers measurement ranges of 0-100% VWC, 0-20,000 μS/cm EC, and -40°C to +80°C. Ideal for use with c ocopeat , rockwool, potting soil, and similar substrates, this sensor integrates seamlessly with the SenseCAP S2100 LoRaWAN Data Logger for efficient data collection and management.

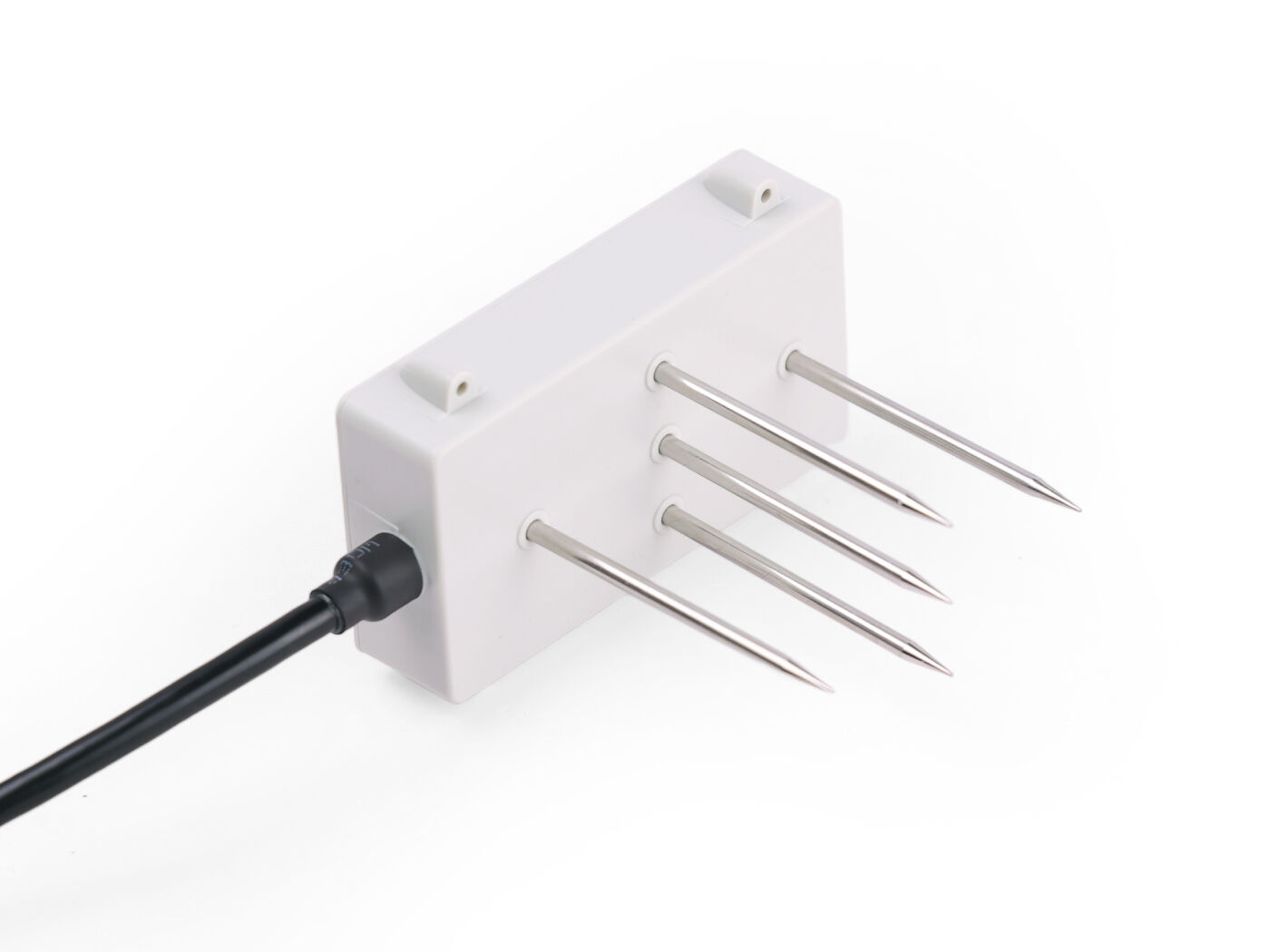

Suitable for Soil, Rockwool, Cocopeat and Substrate: Designed for both mineral soils and soilless substrates like rockwool, potting soil, and coco peat, this sensor offers precise, reliable measurements essential for optimizing plant growth. High Precision and Sensitivity : The sensor delivers high precision and stable performance in various soil conditions, with stainless steel probes designed to optimize EC measurements and minimize substrate disturbance. Durable Design for Long-Term Use : This IP68-rated sensor is built for tough conditions, suitable for long-term monitoring in applications like scientific research, water-saving irrigation, horticulture, and precision agriculture. Easy Integration and Versatile Application : This sensor can be seamlessly integrated with the SenseCAP S2100 LoRaWAN datalogger for efficient data collection and management. Monitor the key indicators of your soil’s health with our advanced IP68 RS485 Soil Moisture, Temperature, and Electrical Conductivity (EC) Sensor, designed for both mineral soils and substrates like rockwool, potting soil, and coco peat, offering precise measurements essential for optimizing plant growth by integrating VWC readings derived from measuring the dielectric constant, and providing the accuracy needed for greenhouses, outdoor farms, and environmental monitoring. We offer the SenseCAP S2100 – LoRaWAN® Data Logger and SenseCAP Sensor Hub 4G Data Logger suitable for RS485 sensors, you can transmit the sensor data to public LoRaWAN® network servers(Helium, TTN, etc.,) or MQTT private servers.
