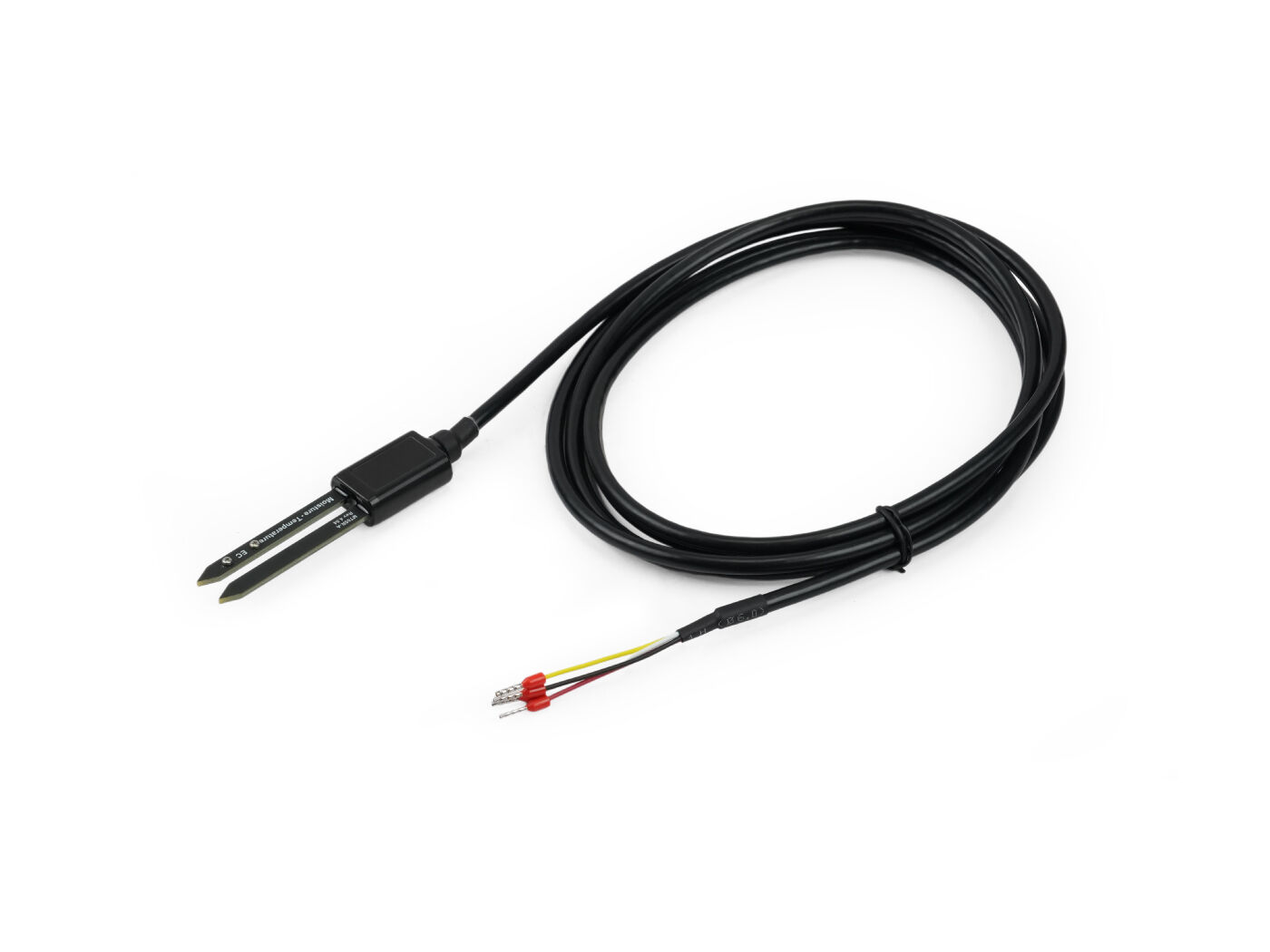

RS485 Mini Soil Moisture, Temperature and EC Sensor: Modbus RTU, Soil and Substrate Monitoring, Bulk EC, Pore EC
Technical Specifications
Verified product data organized in one table
| Product Classification | |
|---|---|
| Product Profile | IoT Sensor |
| Environment / Deployment | Outdoor |
| Primary Use Cases | Agriculture and environmental monitoring |
| Network & Ecosystem | |
| Supported Network / Ecosystem | SenseCAP, Private LoRaWAN |
| Connectivity / Protocol | LoRaWAN, Bluetooth, RS485, Modbus RTU, Analog, GPIO |
| Power | |
| Power Method | Battery |
| Input Voltage | 3.0-28V DC |
| Physical & Environmental | |
| IP Rating | IP68 |
| Operating Temperature | -40-80°C |
| Dimensions | 20*11*95 mm |
| Detailed Technical Data | |
| Product Model | S-Temp&VWC&EC-05A |
| Sensor Description | RS485 Mini Soil Moisture, Temperature and EC Sensor |
| Output Interface | RS485 |
| Protocol | Modbus-RTU |
| Current Consumption | Measuring: 10 mA typical, 15 mA max @ 3–28 VDCStandby : 300 μA typical, 800 μA max @ 3–28 VDC |
| Power Supply | 3.0-28V DC |

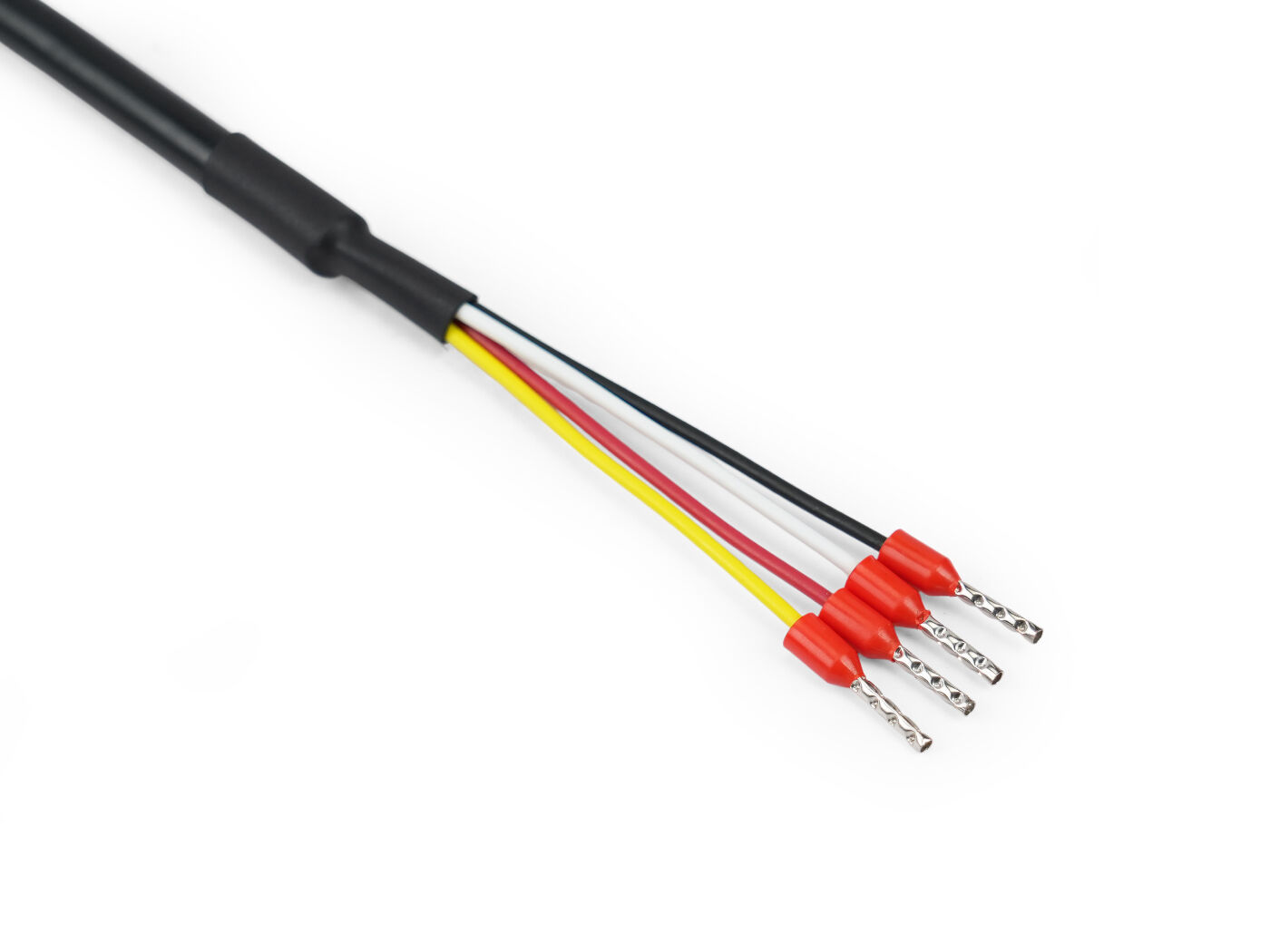

| Cable Length | 2 meters |

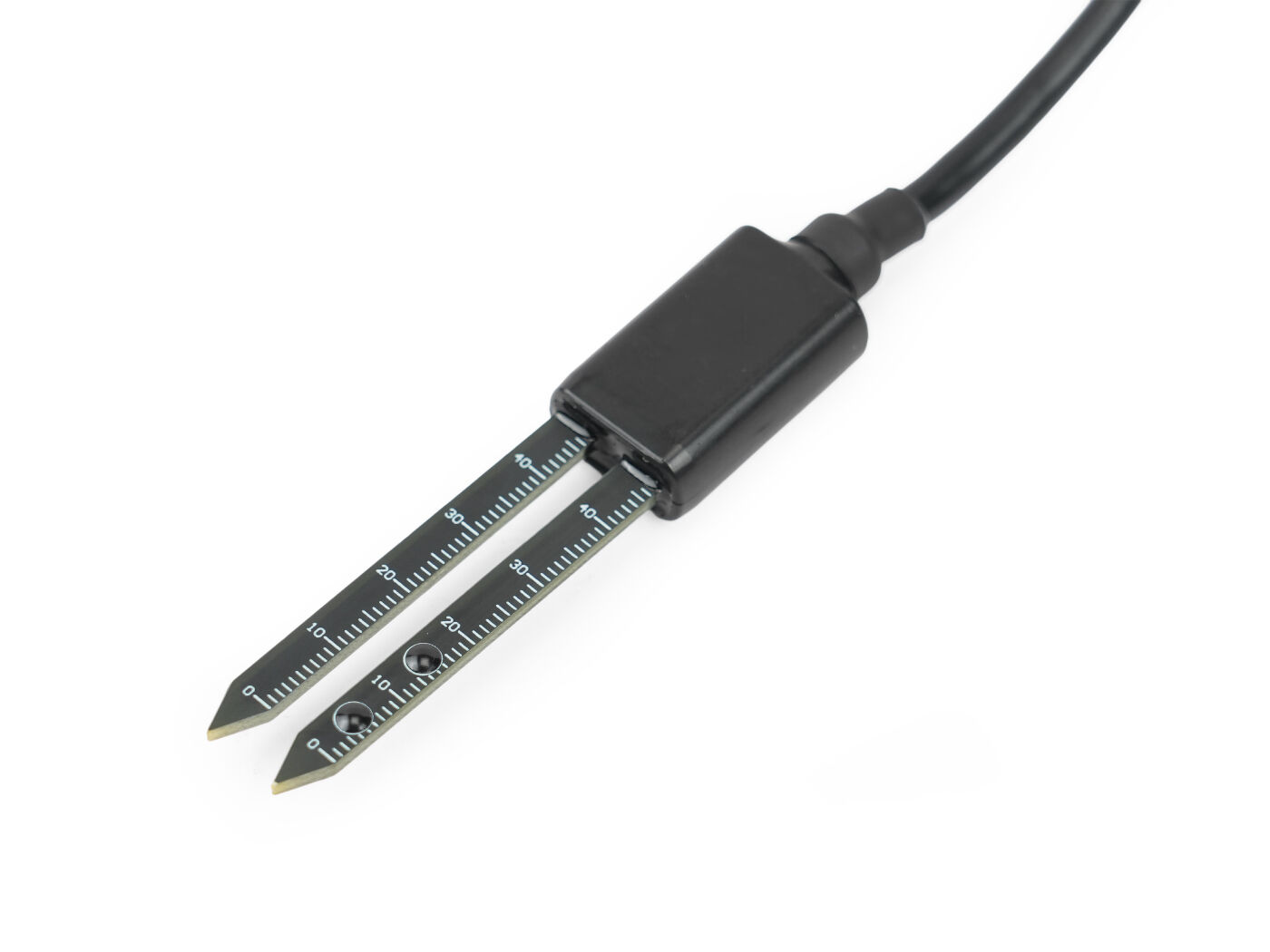

| Sealing Encapsulation | Resin packaged plastic body; Robust epoxy encapsulation; |
| Installation | Rods fully inserted into the substrate; Ensure good substrate contact; |
| Range | -40-80°C |
| Accuracy | ±0.5°C (0-50°C), ±1.0°C (-40-80°C) |
| Resolution | 0.1°C |
| Volumetric Water Content (VWC) Range | 0-100% (air - water) |
| Volumetric Water Content (VWC) Accuracy | ±3% (0%-50%), ±5% (50%-100%) |
| Volumetric Water Content (VWC) Resolution | 0%-50%: 0.1%; 50%-100%: 0.5% |
| Apparent Dielectric Permittivity Range | 1-81 (air - water) |
| Apparent Dielectric Permittivity Accuracy | ±1 (1.00-40.00);±3 (40.00-81.00) |
| Apparent Dielectric Permittivity Resolution | 1.00-40.00: ±0.1; 40.00-81.00: ±0.5 |
| Temperature Compensation | 0-50°C |
| Mini Soil Moisture&Temp&EC Sensor | x1 |
| HSCODE | 9027899090 |
| USHSCODE | 9027894590 |
| EUHSCODE | 9027109000 |
| COO | CHINA |
Product Overview
The RS485 Mini Soil Moisture, Temperature and EC Sensor is an IP68-rated sensor for monitoring soil and soilless substrates. It measures volumetric water content from 0–100%, electrical conductivity up to 0–20 dS/m, and temperatures from -40 to 80°C. With a resin-sealed body, durable sensing rods, RS485 Modbus RTU communication, a wide 3.0–28 V DC power supply range, and low-power consumption, this sensor is designed for long-term and reliable soil monitoring. Built-in reverse polarity, TVS, and ESD protection enhance system stability, making it ideal for smart agriculture, greenhouse monitoring, irrigation management, hydroponics, and research applications.
The RS485 Mini Soil Moisture, Temperature and EC Sensor measures soil/substrate volumetric water content, temperature, bulk EC, pore EC, and apparent dielectric permittivity, with support for RS485 Modbus RTU communication. Its IP68 resin-sealed body, durable sensing rods, low-power 3.0–28 V DC operation, reverse power protection, and built-in TVS/ESD protection make it suitable for smart agriculture, greenhouse monitoring, irrigation control, hydroponics, horticulture, and soil research applications. This sensor is available with an RS485 Modbus RTU interface. It is compatible with the SenseCAP S2100 LoRaWAN® Data Logger , enabling low-power, long-range data transmission over LoRaWAN® networks. Multi-Parameter Soil/Substrate Measurement: Measures volumetric water content, temperature, bulk EC, pore EC, and apparent dielectric permittivity in soil or soilless substrates. This allows users to monitor moisture status, salinity/fertilizer concentration, and substrate condition with one compact sensor. RS485 Modbus RTU Output: Provides a digital RS485 interface with Modbus RTU protocol for stable data transmission and easy integration with data loggers, gateways, controllers, and agricultural monitoring systems. The sensor supports standard Modbus register access for reading measurement values and configuring communication parameters. Wide Measurement Ranges: Supports 0–100% volumetric water content, -40 to 80°C substrate temperature, and 0–20 dS/m bulk EC measurement. It also provides pore EC data through Modbus registers, making it suitable for soil moisture monitoring, irrigation control, and nutrient/salinity management. Low-Power, Wide-Voltage Operation: Operates from a 3.0–28 V DC power supply with low current consumption. The low-power design makes it suitable for battery-powered data loggers, remote field stations, and long-term agricultural monitoring deployments.
