Bundle / KitMeshtasticOutdoor

[15%off] Meshtastic Starter Kit, Ready-to-Use, Off-Grid, Instant Reliable Communication

In stock SKU: E26012601
$39.90 – $347.76 USD

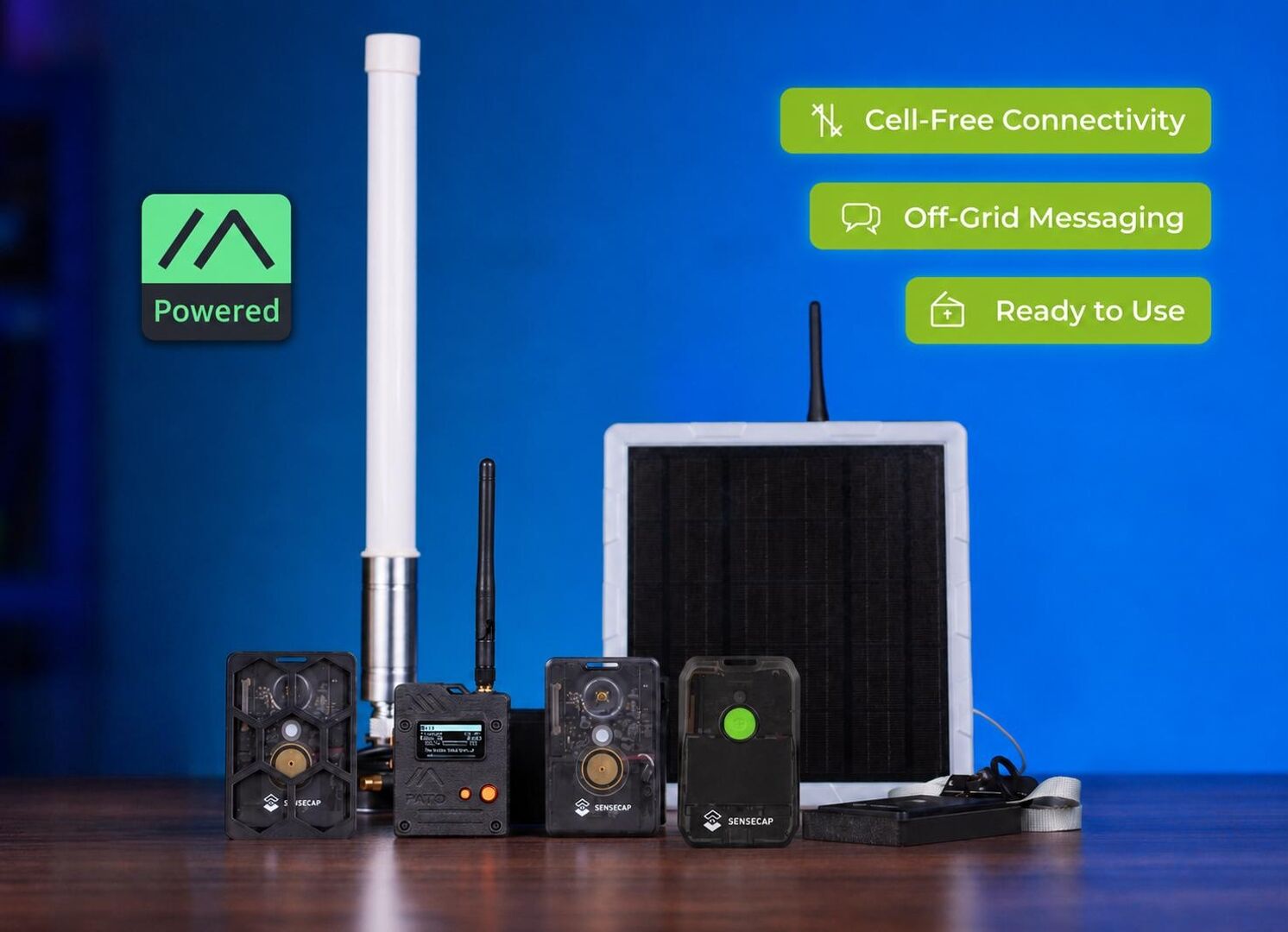

The SenseCAP Meshtastic®  Starter Kit is an easy way to start building and exploring Meshtastic networks. This Meshtastic kit includes ready-to-use Meshtastic devices designed for long-range LoRa communication and location sharing. It allows users…
Included Items14 items
Use CaseAsset, personnel and outdoor tracking
Secure Payment Options Bank transfer or cryptocurrency
Bank Transfer Cryptocurrency (Bitcoin)
365-Day Recorded Warranty Eligibility linked to the product and serial record
Secure Approved Payments Bank transfer or cryptocurrency
Order & Serial-Linked Support Traceable order and after-sales assistance
Documented Package Contents Included hardware and accessories are clearly listed

Technical Specifications

Verified product data organized in one table

Product Classification
Product ProfileBundle / Kit
Environment / DeploymentOutdoor
Primary Use CasesAsset, personnel and outdoor tracking
Network & Ecosystem
Supported Network / EcosystemMeshtastic, SenseCAP
Connectivity / ProtocolLoRa, Meshtastic, Wi-Fi, Bluetooth, BLE, LTE / Cellular, USB, GPIO, GNSS / GPS
Power
Power MethodBattery, Solar, USB-C
Input Voltage4.7 to 5.5V DC
Solar SupportYes
Battery CapacityRechargeable lithium battery, 700mAh
Battery LifePeriodic uplink battery level
Physical & Environmental
IP RatingIP65
Operating Temperature-20℃ to +60℃
Operating Humidity5% - 95% (No condensation)
Dimensions85 * 55 * 6.5 mm
CertificationsCE / FCC
Bundle Contents
Bundle Contents1 × Card Tracker T1000-E — Option price: $39.901 × Wio Tracker L1 Pro — Option price: $47.901 × SenseCAP MeshTracker X1 for Meshtastic — Option price: $49.901 × SenseCAP Solar Node P1-Pro for Meshtastic — Option price: $93.901 × LoRa Fiberglass Antenna Kit For Helium; 902-928MHz; US 5.8dBi — Option price: $9.901 × Fiberglass Antenna Kit For Helium; 863-870MHz; 8dBi; 1300mm — Option price: $29.901 × Fiberglass Antenna Kit For Helium; 902-928MHz; 8dBi; 1300mm — Option price: $29.901 × RF Cable | RP-SMA Male to N-Type SMA Female | 300mm — Option price: $4.991 × Nylon Lanyard for SenseCAP T1000 Tracker — Option price: $2.491 × Snap Hook for SenseCAP T1000 Tracker — Option price: $1.991 × SenseCAP T1000-E Protective Meshtastic Case with Leather Keychain — Option price: $14.901 × SenseCAP T1000-E Charging Puck — Option price: $14.901 × Adhesive Back Clip for Tracker — Option price: $2.991 × Magnetic Charging Data Adapter — Option price: $3.50
Detailed Technical Data
RequirementsRecommended Device · Specification · Application Scenario
Por tab l eT1000-E · ●  C a r d - s i z ed ●  IP65 ●  2 - d a y   B a t te ry L i f e ●  Easy to C lip onto B ag or S lide into P ocket · ●  Hiking ●  S kiing ●  U rban C ycling ●  O utdoor E xploration
D i r ec t InteractionWio Tracker L1 Pro · ●  O L E D S c r e e n ●  5 -d ay Ba ttery L ife ●  D irect M essages T ransmission on D evice · ●  Hiking ●  C amping ●  R eal-time M onitor ●  G e e k
Wide-Area Signal CoverageSenseCAP Solar Node · ●  Solar Power ●  Eas y Installation ●  Large Signal Transmission Range · ●  Camping ●  D ata F orwarding
The Du al ExplorerT1000-E*2+Protective casing*2 · ●  5-8 kilometers communicable ●  Position d isplayed on the offline map of the app
The Pro RescuerL1 Pro × N + T1000-E × N · Real-ti me monitor Cell phone free
Wide-Area Signal RepeaterSolar Node P1-Pro × 1 + (optional) 5.8dBi antenna · ●  24/7 ●  Signal expansion
Network protocolLoRa (Supports 863-928 MHz range), Bluetooth v5.1
TemperatureRange: -20 to 60℃; Accuracy: ± 1℃ (min ±0.5℃, max ±1℃) Resolution: 0.1℃
Light0 to 100% (0% is dark, 100% is brightest)
3-Axis Accelerometer3-Axis Accelerometer to detect movement (Not currently used in the Meshtastic firmware)
LED and Buzzer1*LED and 1* buzzer to indicate status
Button1* Button to operate
AntennaInternal (GNSS/LoRa/Wi-Fi/BLE)
Communication Distance2 to 5 km (depending on antenna, installation, and environment)
Device Weight32g
CertificationCE / FCC
Battery Life MonitoringPeriodic uplink battery level
Charge Cable (Adapter not included)USB magnetic charging cable, 1 meter
Power Input Voltage4.7 to 5.5V DC
Charging Temperature Limit0 to +45℃

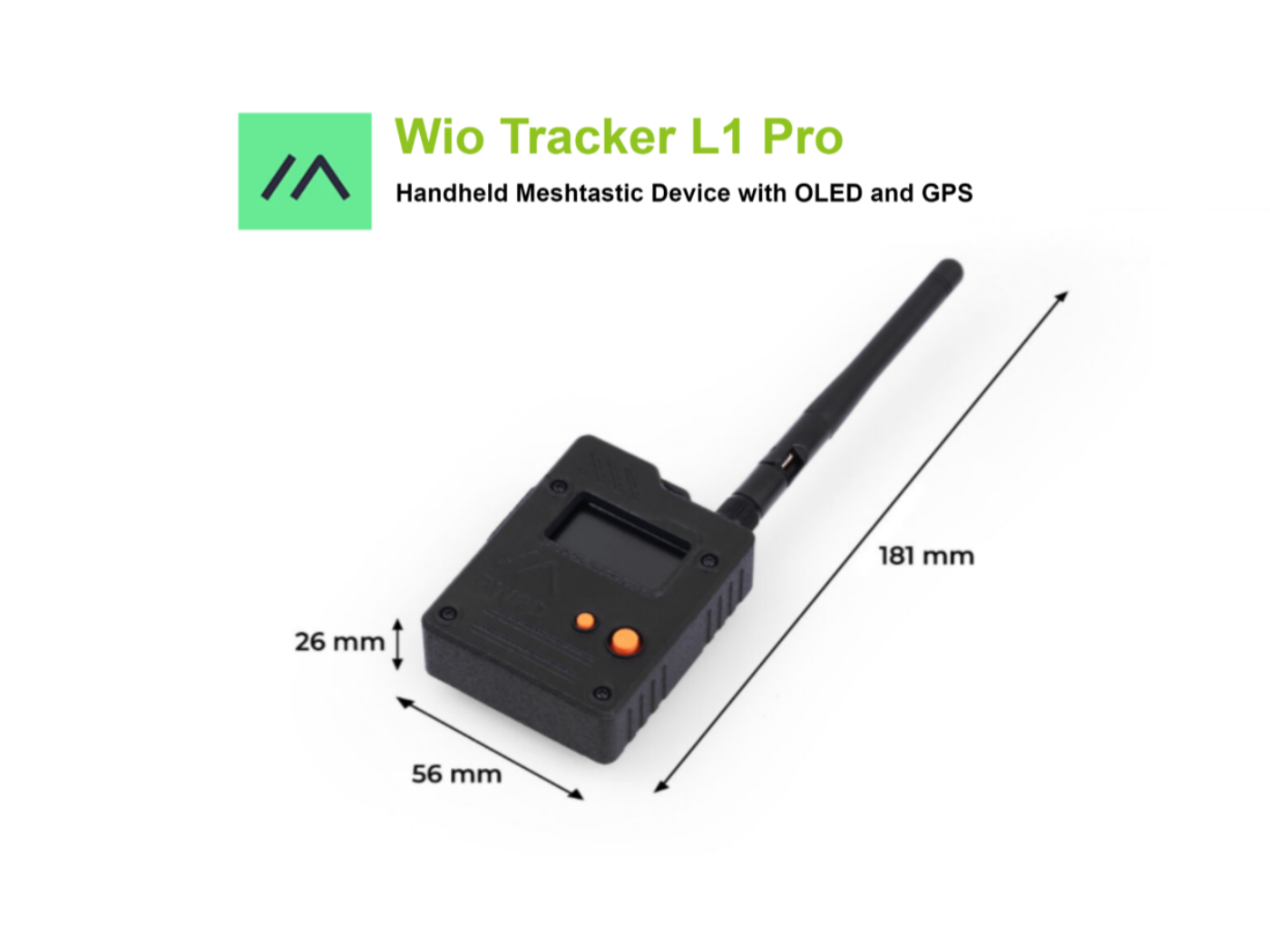

ProcessorNordic nRF52840 ARM® Cortex®-M4 with FPU runs up to 64 MHz
On-chip Memory1 MB flash and 256 kB RAM
WirelessLoRa: Based on Wio-SX1262 Wireless Module , supports 862-930 MHz
GPSL76K (GPS, BeiDou, GLONASS, QZSS)
OLED DisplaySize: 1.3 inch
PowerType-C: 5v---1A
LoRa ModuleWio-SX1262 Wireless Module (862-930MHz, Semtech SX1262, TXOP=22dBm@862-930MHz)
GPS ModuleL76K GNSS Module for Seeed Xiao (Support GPS/GLONASS/Galileo)

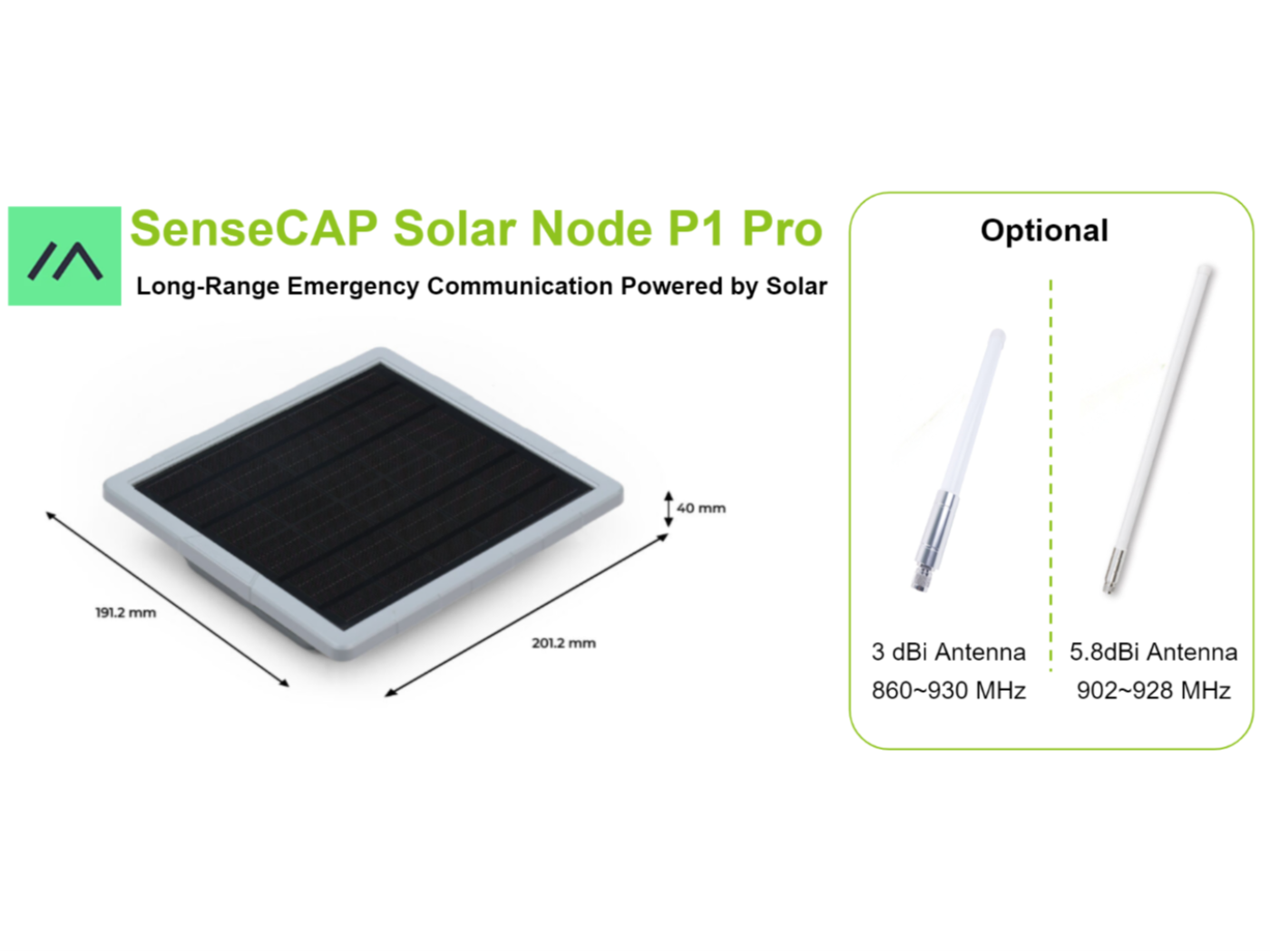

Solar Panel5W
InterfaceGrove *1: IIC/GPIO/UART
LEDCharging status indicator lights *2
Power supplyType-C: 5V 1A
Battery4 x 18650 lithium batteries (3,350mAh each) ● Supporting Type-C and solar charging. ● Discharge environment: -40 ~ 60°C ● Charging environment: 0 ~ 50°C
Dimension191.2 x 201.2 x 42.1 mm
📖

Product Overview

The SenseCAP Meshtastic®  Starter Kit is an easy way to start building and exploring Meshtastic networks. This Meshtastic kit includes ready-to-use Meshtastic devices designed for long-range LoRa communication and location sharing. It allows users to quickly set up Meshtastic nodes and experience decentralized mesh communication without complex configuration. 15% off is automatically applied at checkout.

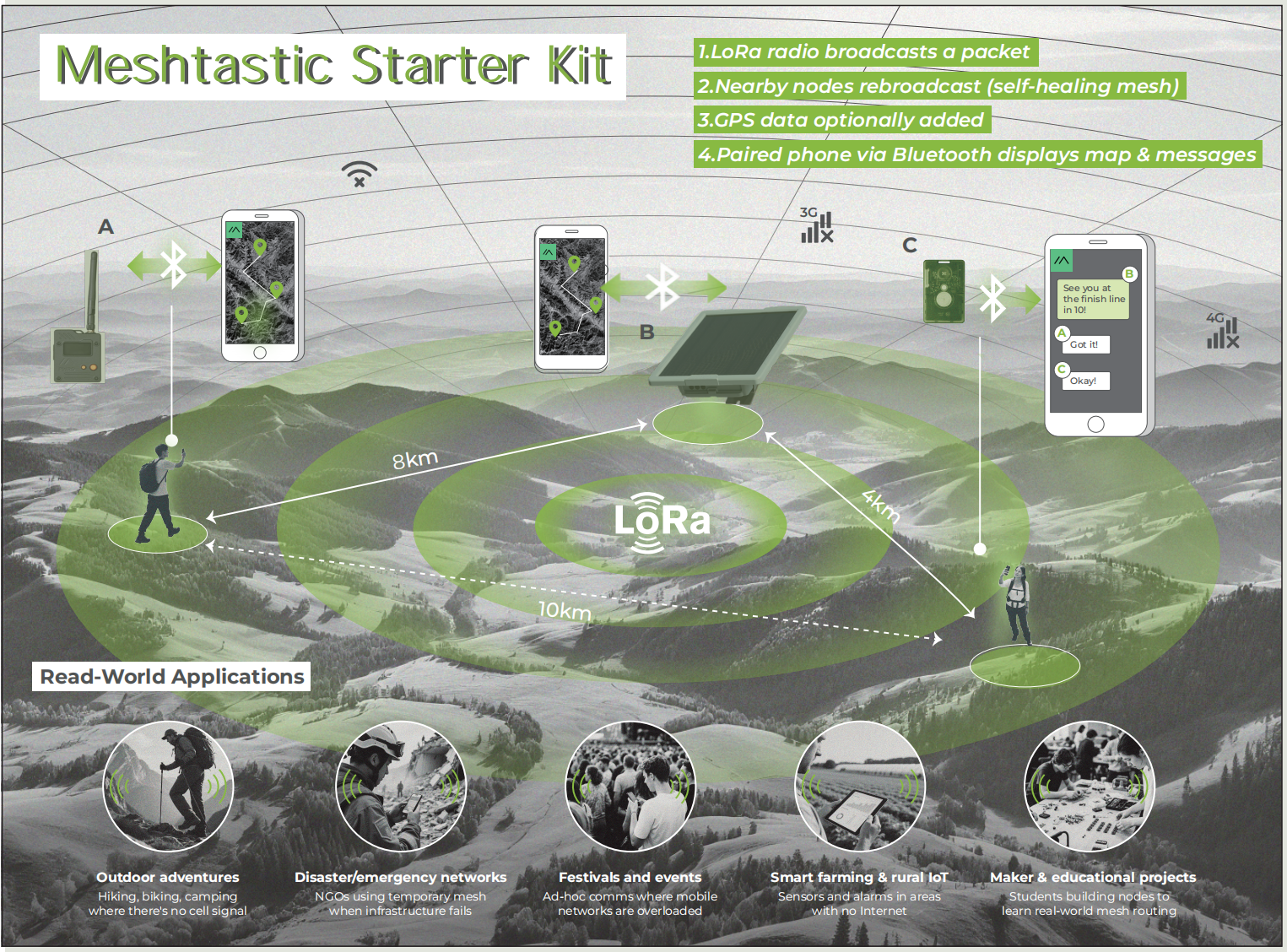

Sales: 15% off is automatically applied at checkout. From China warehouse to the United States, choose "US Direct Group Shipping" to enjoy duty-free! What is Meshtastic? Meshtastic® is an open-source communication system built on LoRa technology that enables decentralized mesh networks.Meshtastic devices (also called nodes) communicate directly with each other and can relay messages across the network to extend communication range. This allows users to stay connected even without cellular coverage or internet access, and without paying any monthly subscription fees. How to Choose the Right Meshtastic Device Core Selection: Choose Your Portable Nodes (Clients) In most application scenarios, the Meshtastic LoRa node will be a ttached to moving people, objects or animals. Requirements Recommended Device Specification Application Scenario Por tab l e T1000-E ●  C a r d – s i z ed ●  IP65 ●  2 – d a y   B a t te ry L i f e ●  Easy to C lip onto B ag or S lide into P ocket ●  Hiking ●  S kiing ●  U rban C ycling ●  O utdoor E xploration D i r ec t Interaction Wio Tracker L1 Pro ●  O L E D S c r e e n ●  5 -d ay Ba ttery L ife ●  D irect M essages T ransmission on D evice ●  Hiking ●  C amping ●  R eal-time M onitor ●  G e e k Pro Application : Expanding Your Network (Repeater) If you need a repeater to expand your M eshtastic network, SenseCAP Solar Node would be a must-h ave pro d uct . Since these stay in fixed, unmanaged spots for a long time, low power consumption and easy setup are important . Requirements Recommended Device Specification Application Scenario Wide-Area Signal Coverage SenseCAP Solar Node ●  Solar Power ●  Eas y Installation ●  Large Signal Transmission Range ●  Camping ●  D ata F orwarding All Seeed's Meshtastic hardware comes with pre-flashed Meshtastic firmware. So you just need to turn on the device, configure LoRa via the app, and then you're Meshing. Here we provide some "Copy-Paste" solutions for your reference The Du al Explorer T1000-E*2+Protective casing*2 ●  5-8 kilometers communicable ●  Position d isplayed on the offline map of the app L1 Pro*2+Protective casing T1000-E* 1 + L1 Pro* 1 The Pro Rescuer L1 Pro × N + T1000-E × N Real-ti me monitor Cell phone free Wide-Area Signal Repeater Solar Node P1-Pro × 1 + (optional) 5.8dBi antenna ●  24/7 ●  Signal expansion By linking these devices together, you can easily build a network that spans tens or even hundreds of kilometers. Optional Accessories To make your experience even better, we’ve included several handy tools in the kit for you to choose : Wearables : Use the included snap hook , nylon lanyard or protective case to easily attach the T1000-E to your backpack, belt, or even your pet's collar. Power & Charging : We also offer dedicated charging accessories to keep your nodes powered up for long trips.

📜
